Gulfstream Mariposa - Page 12

INSTALLATIONS
10
Foot-spa Length
GFI Outlet Required
Existing Drain Pipe
Discharge Pump
Drain Elbow
Floor
Wall
16’
’ - 24’’
Foot-spa Length
½” Hot & Cold Hoses

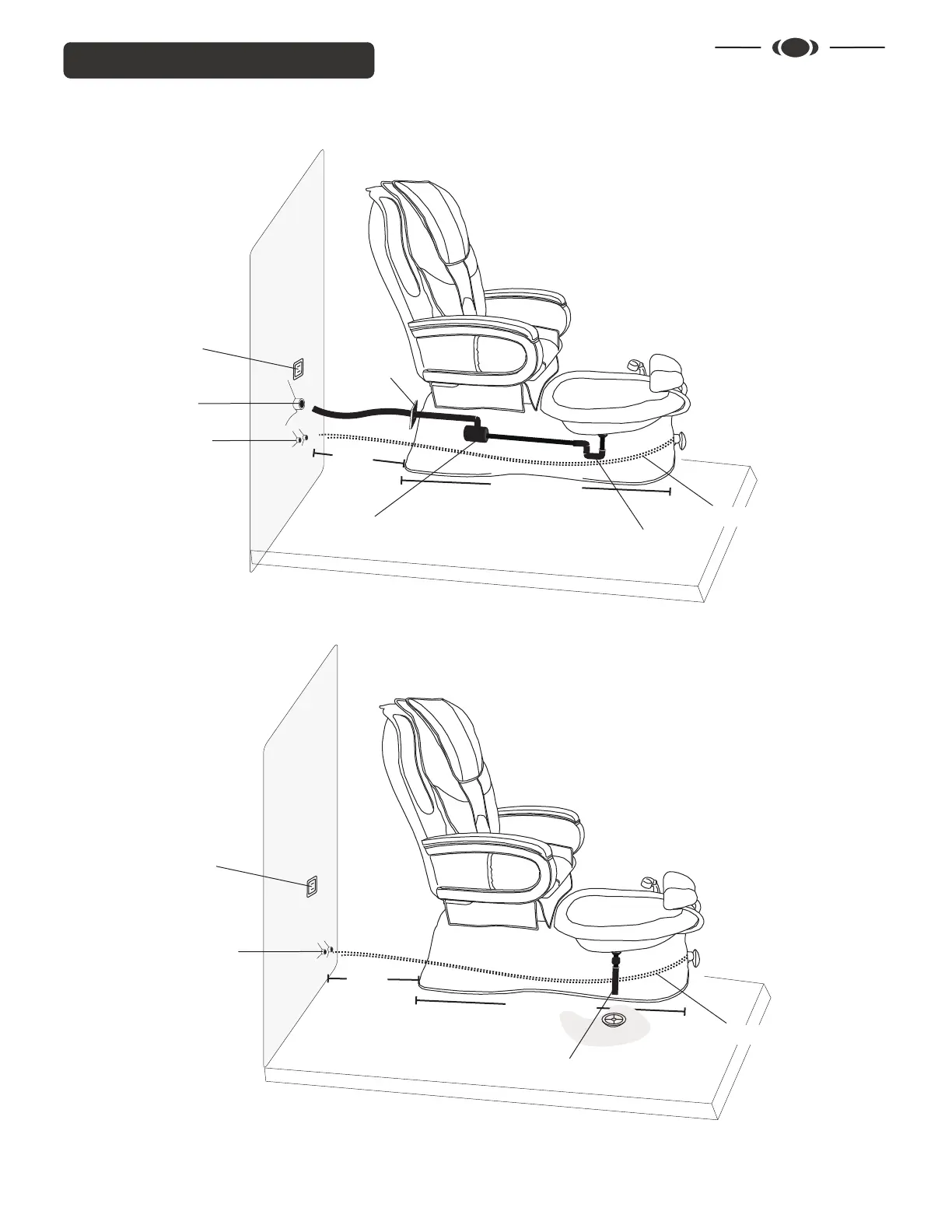

Typical Discharge Pump Installation
Existing Hot & Cold
Water Supply
Backwater valve sold
separately
½’’
GFI Outlet Required
Existing Hot & Cold
Water Supply
Backwater valve sold
separately
½’’
Floor
Wall
16’’ - 24’
’
½” Hot & Cold Hoses
Typical Gravity Sink (Direct Drain)
Installation
Gravity Sink
2’’ - 3’’ drain pipe
to sewer line
Backwater Valve
sold separately
P-Trap not installed in the floor drain installation
