Replacing the AutoPulse Timer:
NOTE: Before any installation or replacement occurs, depressurise the system.
Having removed the old timer, follow the below instructions to install the new one.
You are now ready to start using the DLUX timer again. Restore normal system pressure and proceed
to use the machine.

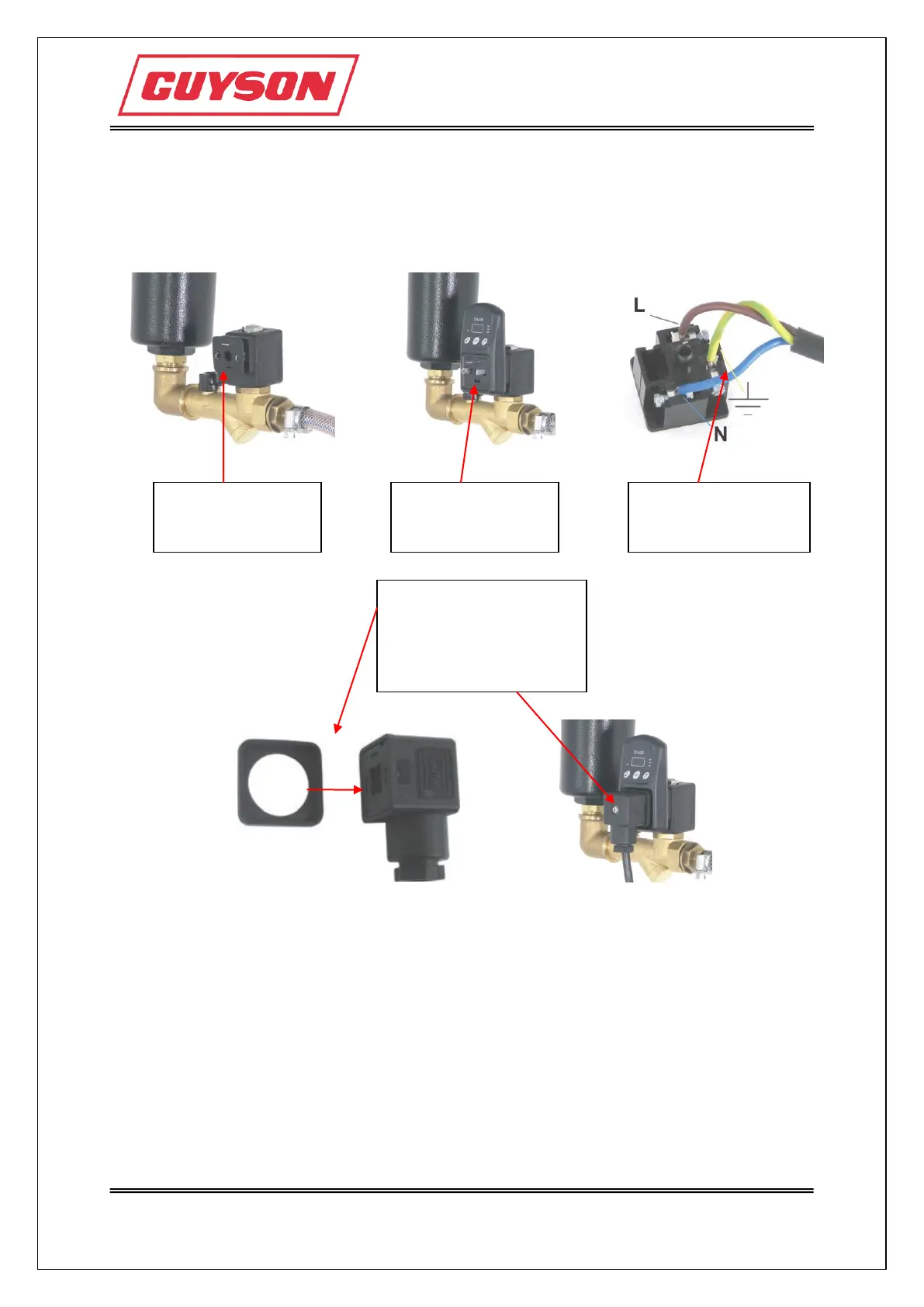

Place the flat gasket
over the coil
connection pins.
Mount the timer on
to the coil as shown
above.
Connect your power
cable to the connector
as shown above.
Place the connector
gasket on the connector,
plug the connector on the
timer as shown below and
tighten the screw
