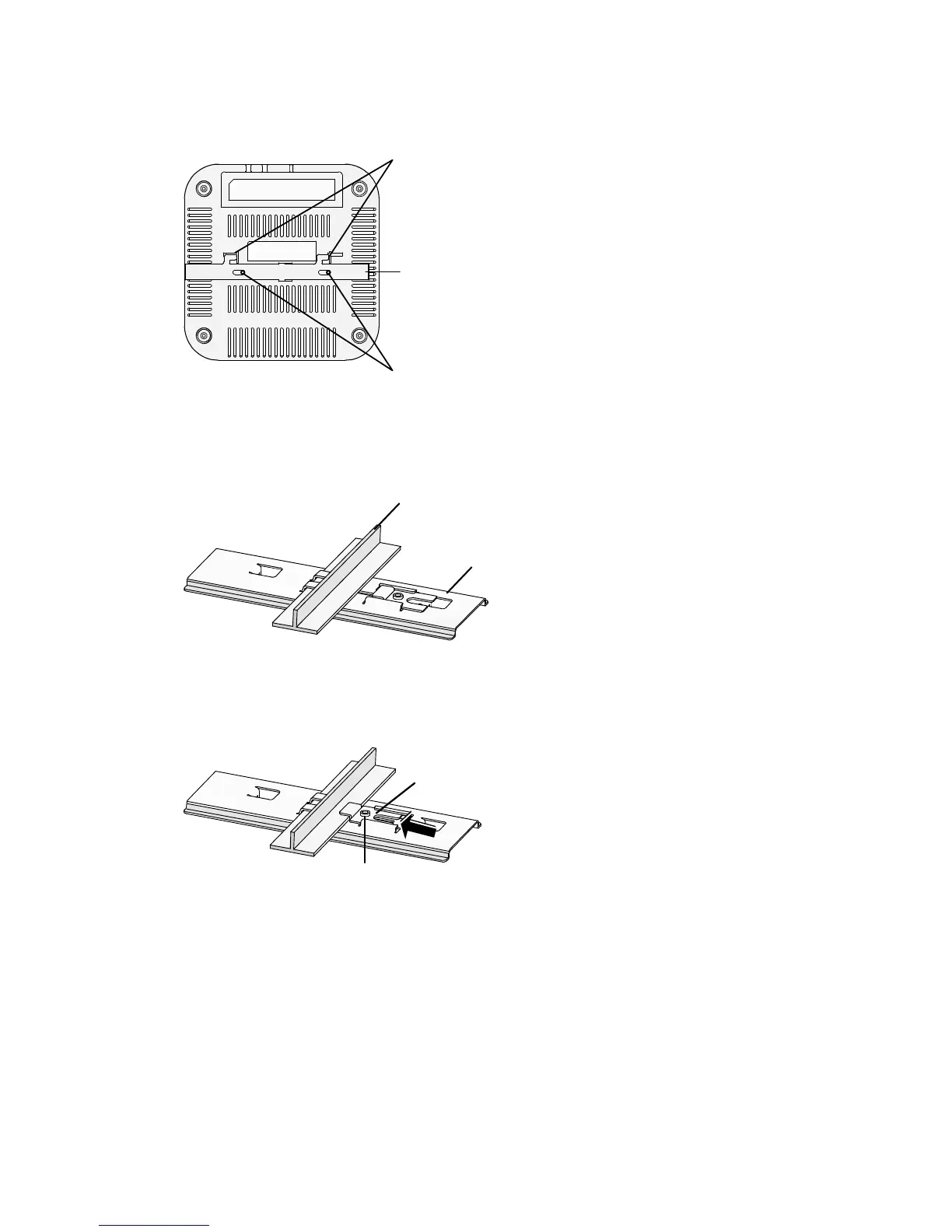

Figure 6 Slide position for slot accessibility
2. Clip the metal ceiling bracket to a suitably located ceiling tile separator (see Figure
7
Figure 7 Attaching metal ceiling bracket to ceiling tile separator
3. Slide the moveable section into place and tighten the screw (found underneath) to
secure it (see Figure 8
Figure 8 Position bracket
4. Position the AP so that the two tabs from the ceiling bracket can be inserted in the
slots in the AP (see Figure 9
Keep these slots free
Slider
Srecws(X2)
Ceiling bracket
Suspended ceiling T-rail
Moveable section
Screw(tighten from underneath)
