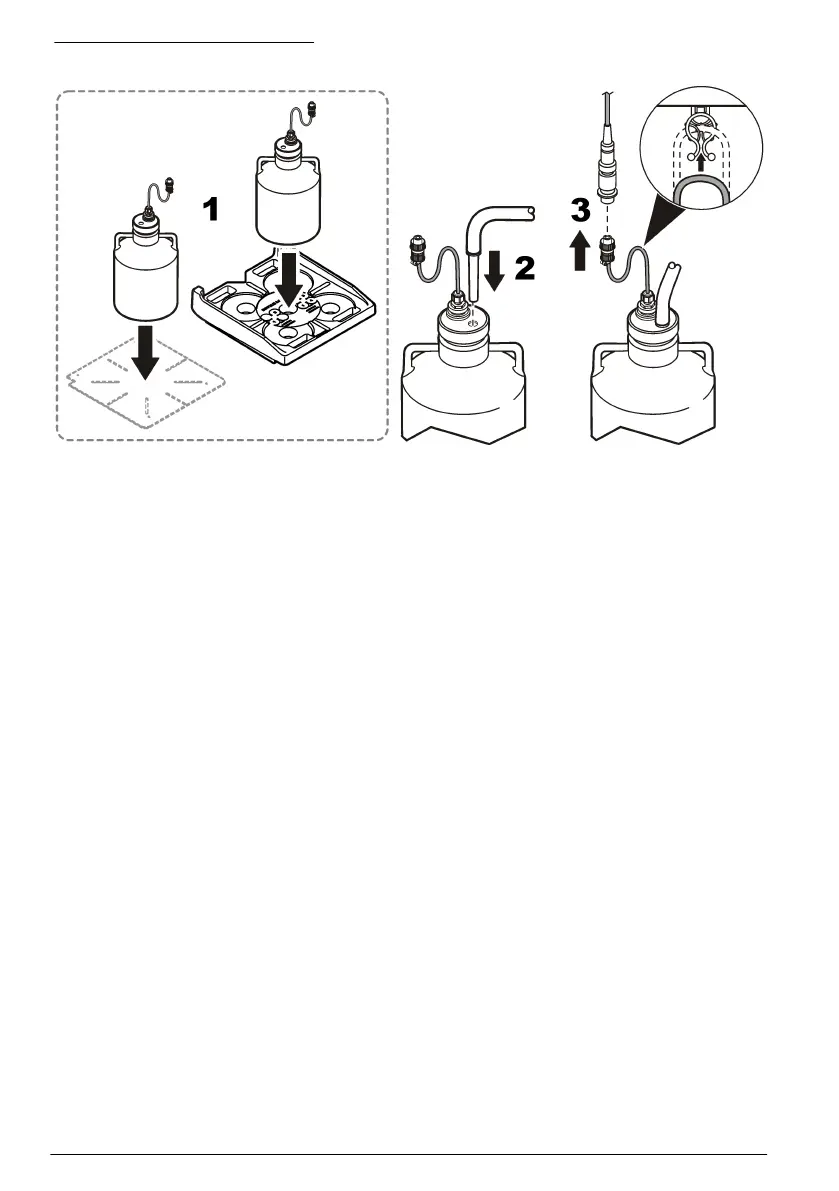

Figure 5 Single bottle installation
Install multiple bottles
When multiple bottles are installed, a distributor arm moves the sample tube over each bottle.
Sample collection automatically stops when the specified number of samples are collected.
1. Assemble the sample bottles as shown in Figure 6. For eight or more bottles, make sure that the
first bottle is near the bottle one indicator in the clockwise direction.
2. Put the bottle assembly in the sampler. For eight or more bottles, align the wires in the slots in the
bottom tray.
