Hafco PCT-7510 - Parts List

ASSEMBLY INSTRUCTIONS
Page 2
ASSEMBLY INSTRUCTION
1
2
11
12
5
7
9
10
3
8
6
4

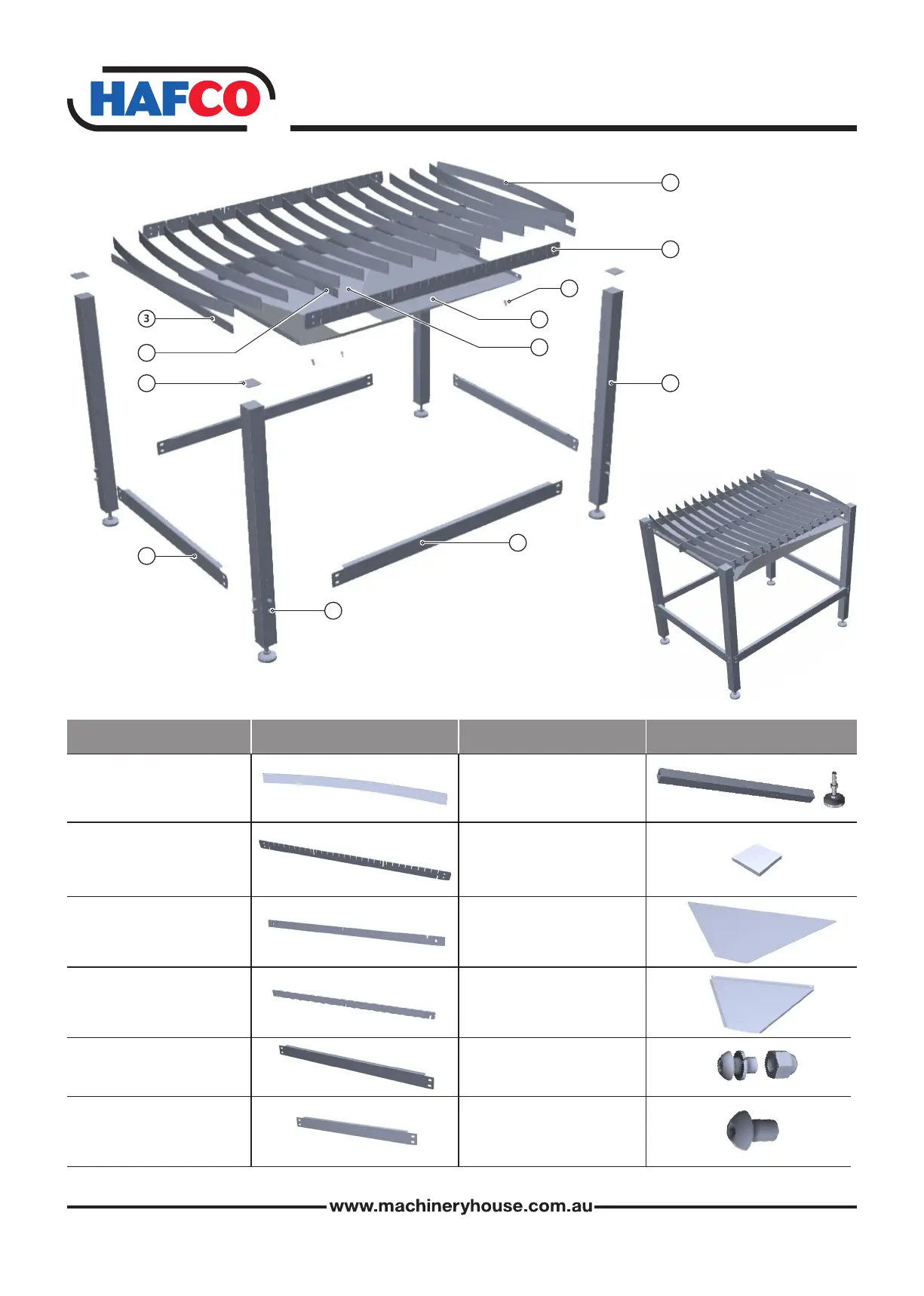

Parts list
Please check that you have all the below parts before you assemble this product
Part PartImage Image
1. Table Ribs
Qty: 16
7. Legs
Qty: 4
2. Long Ribs
Qty: 3
8. Leg Top Caps
Qty: 4
3. Cross Rib Ends
Qty: 2
9. Long Chute Sides
Qty: 2
11. M6 Screws & Dome Nuts
Qty: 12
4. Cross Rib Centres
Qty: 2
10. Short Chute Sides
Qty: 2
5. Long Leg Braces
Qty: 2
6. Short Leg Braces
Qty: 2
12. M8 Screws
Qty: 20
