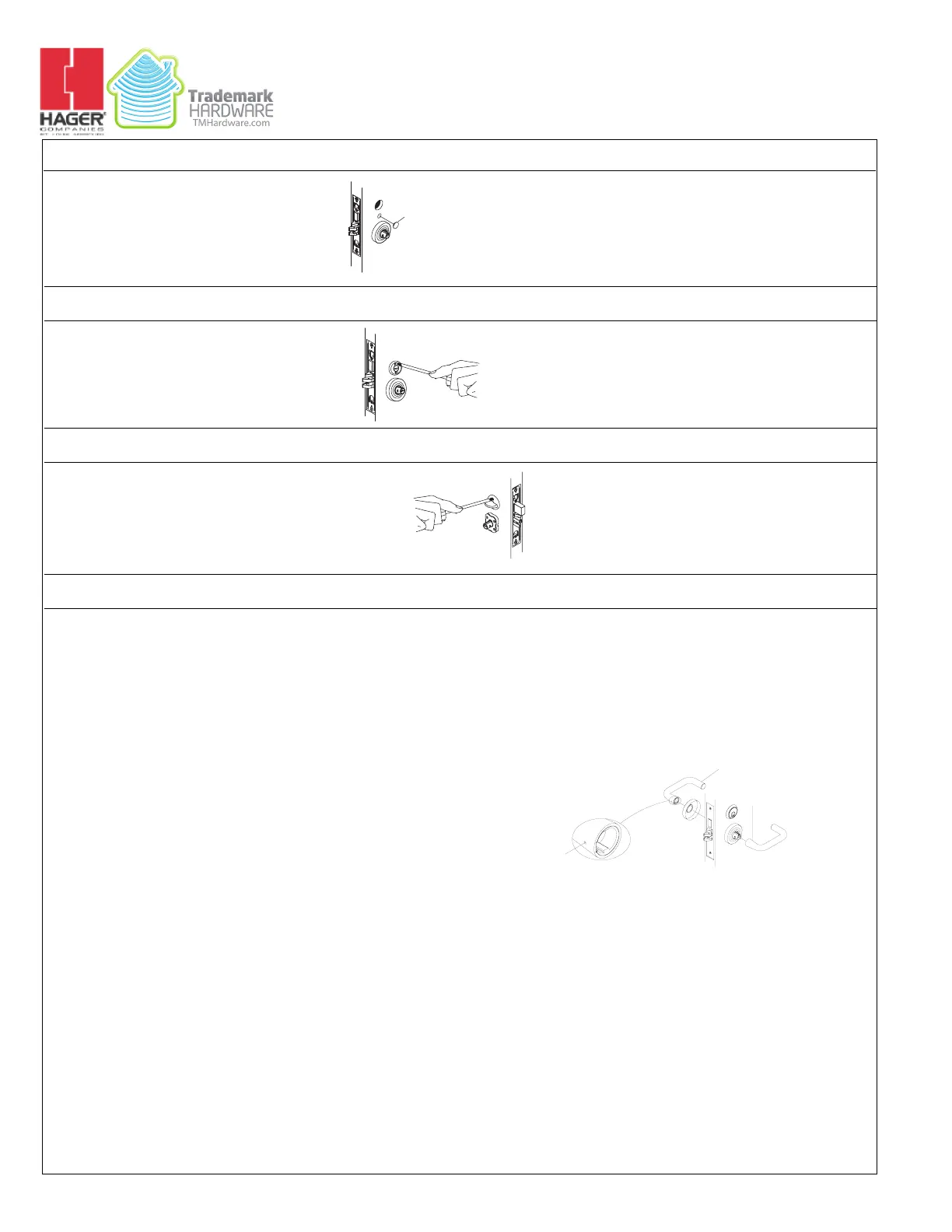

3800 Series Mortise Lock - Sectional
Installation Instructions
I-LS00761
REV 3
Page 4 of 4
STEP 8: INSTALL EMERGENCY BUTTON
A. Snap emergency button into place.
STEP 9: INSTALL COIN TURN
A. Insert coin turn in the vertical position.
STEP 10: INSTALL THUMBTURN
A. Insert the thumbturn in the vertical position.
B. Throw deadbolt.
C. Insert two (2) thumbturn mounting screws.
STEP 11: INSTALL ROSE TRIM
OUTSIDE LEVER DOES NOT CONTAIN A KEEPER RELEASE HOLE. ONLY INSIDE LEVER CONTAINS A KEEPER RELEASE HOLE.
A. Check function and adjust assemblies if necessary.
B. Tighten mounting screws in insert assembly.
C. Locate the notch of rose toward bottom and push in until flush with face of door.
D. Align outside and inside levers with sleeve and push until lever keeper engages with hole.
Note: Outside lever with no keeper hole. Only inside lever with keeper hole.
Emergency
Button
Sectional Coin Turn
Keeper Hole
Inside Lever
Outside Lever
