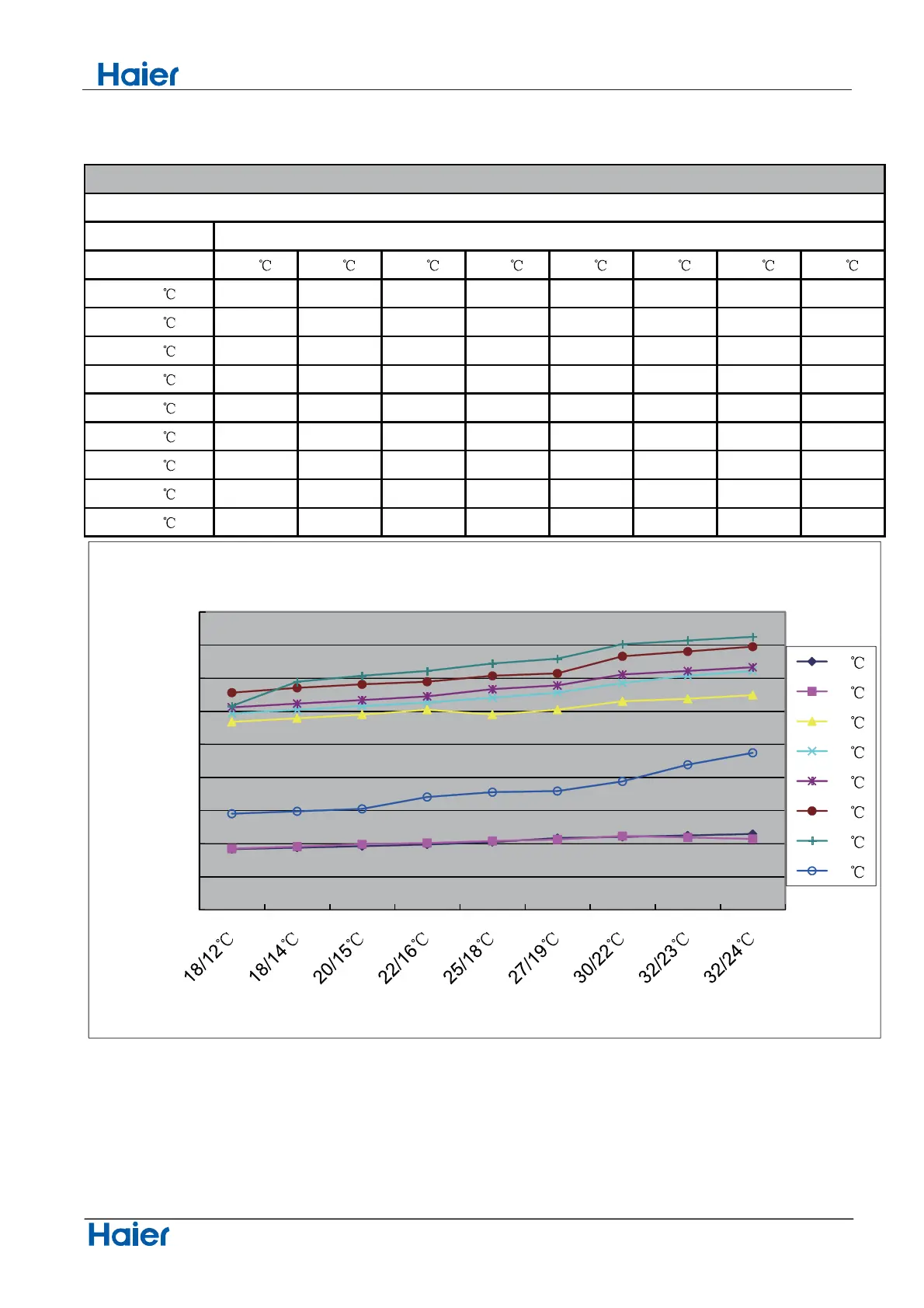

12.3 Cooling power consumption-temp.curves
indoor tem p.
DB/WB
18
20 25 32 35 40 43 46
18/12
465 468 1235 1287 1323 1412 1331 679
18/14
474 481 1257 1309 1345 1441 1478 694
20/15
484 496 1279 1331 1367 1463 1514 708
22/16
493 502 1309 1353 1389 1478 1544 781
25/18
508 514 1279 1382 1434 1514 1588 810
27/19
533 524 1309 1412 1456 1529 1617 817
30/22
539 545 1360 1470 1522 1632 1706 875
32/23
548 536 1375 1514 1544 1662 1728 976
32/24
558 527 1397 1544 1566 1691 1750 1048
outdoor tem p.(humidity 46%)
power consumption value-temp.table
(9+9)performancecurves
100
300
500
700
900
1100
1300
1500
1700
1900
power consumption(w)
indoor tempe.(DB/W B)
power consumption-temp.curves
18
20
25
32
35
40
43
46
Performance curves diagram
