Haier 2U14CS4ERA - Page 72

12.5 Cooling discharge pressure
outdoor temp.
(humidity 4 6%)
DB/WB
16
19 22
15
2465 2550 2635
25
3298 3332 3400
30
3298 3366 3400
35
3332 3400 3502
40
3366 3536 3536
45
2600 2600 2700

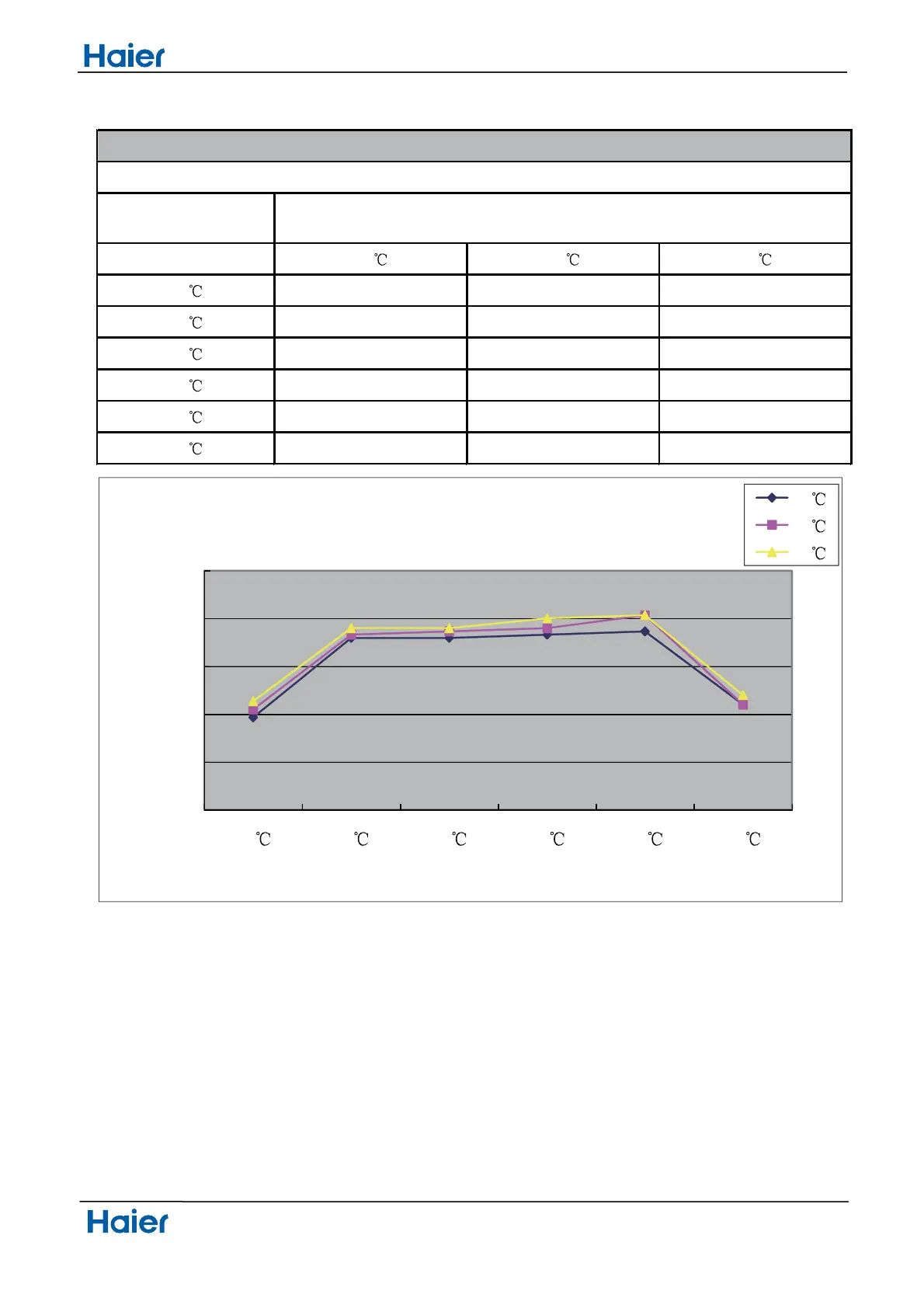

(9+9)performancecurves
cooling discharge pressure.table
indoor tem p.
1500
2000
2500
3000
3500
4000
15
25 30
35
40 45
DISCHARGE PRESSURE
Outdoor Tem p
COOL IN G DIS CHA RGE PR ES SU RE
16
19
22
Performance curves diagram
Domestic air conditioner

