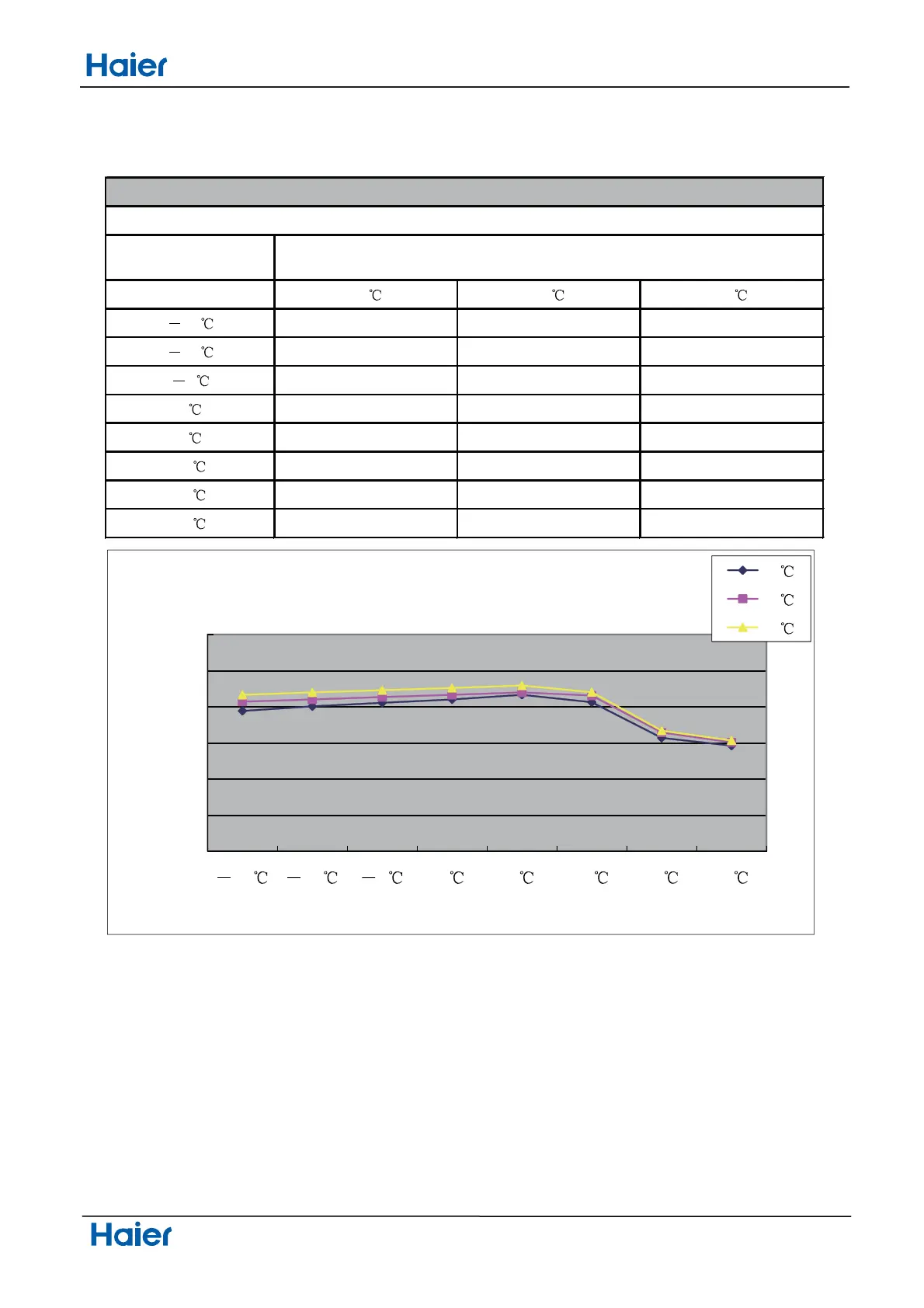

12.7 heating discharge pressure curves
outdoor tem p.
(humidity 46% )
DB/WB
15
20 25
15
2941 3069 3165
10
3005 3101 3197
5
3053 3133 3229
0
3101 3165 3261
5
3165 3197 3293
10
3062 3154 3200
15
2567 2644 2669
20
2459 2507 2531
(9+9)performancecurves
Heating discharge pressure.table
indoor tem p.
1000
1500
2000
2500
3000
3500
4000
15 10 5 0 5 10
15
20
DISCHARGE PRESSURE
Outdoor Temp
HEATING DISCHARGE PRESSURE
15
20
25
Performance curves diagram
