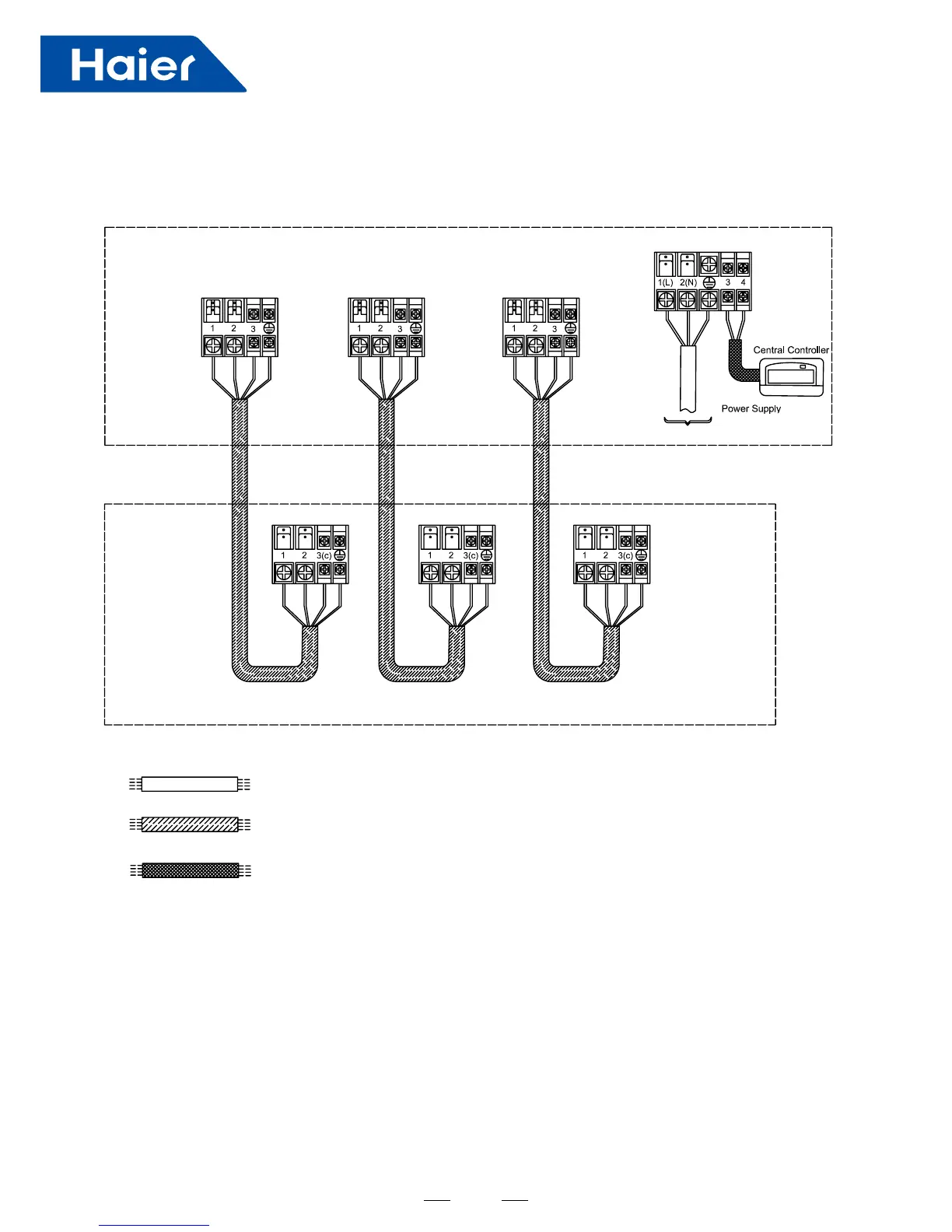

Haier AB25S2SC1FA - Wiring Connection

58
1PH, 220-240V, 50/60Hz
••••••
Indoor Unit A Indoor Unit B Indoor Unit C
Indoor
Outdoor
A B
C
Power Supply Cable:
H05RN-F3G 4.0mm²
Connecting Cable:
H05RN-F4G 2.5mm²
Connecting Cable:
H05RN-F2G 2.5mm²
3U52S2SG1FA 3U68S2SG1FA
Connect the connecting wires between indoor and outdoor units and ensure the sequence numbers on terminals
match with each other.
4. Wiring connection
