18
English
1
A
1C
1D
1B
2
2A
CLICK
!
C
1C
3A
3
A
3B
4A
4
B
3C
2B
A
C
B
D
1A
3D
AFD
AFD
AFD
Stand-by
Super Cool
Super Free
Ice Maker
Clean Pipe
Input water time
Holiday
Alarm
Set OK
AFL
Stand-by Holiday SuperCool
SuperFreeze
Alarm
°C

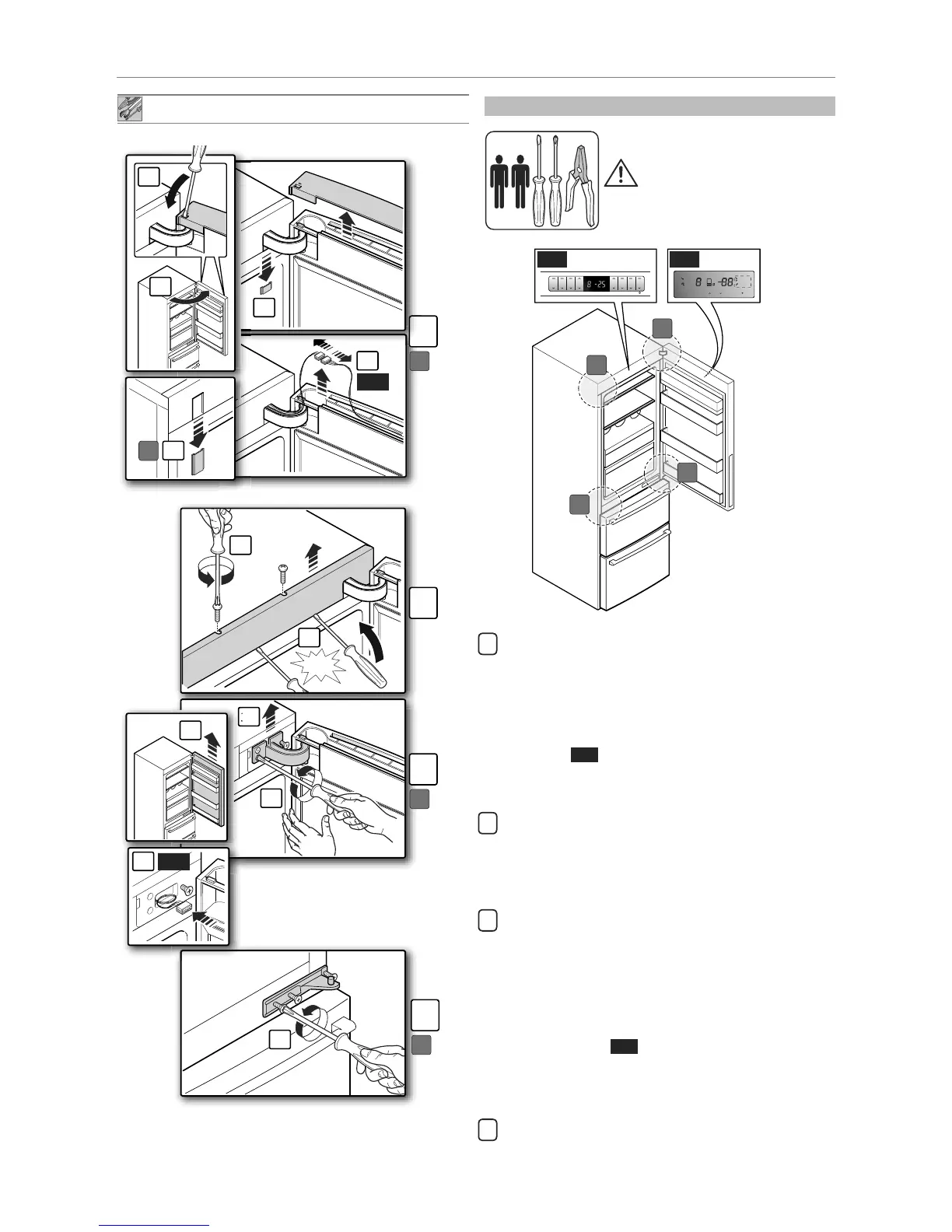

8. EXTRAORDINARY MAINTENANCE
Disconnect power and empty the
appliance before you start the
operation.
1 A) Open the refrigerator door;
B) using a normal screwdriver, work on the two clips to
remove the head from the top end of the door and
withdraw it upward;
C) using a normal screwdriver, withdraw downward the
clips from the right and left side – the clips are under the
upper hinge, take care not to damage them.
D) only for
model: remove the two docking blocks
delicately (the two cables connect the display on the
door to the equipment)
2 A) Unscrew the two screws which secure the front panel,
located at the top;
B) To remove it, obtain leverage in several points with
a normal screwdriver, taking care not to damage the
panel.
3 A) While firmly holding the refrigerator door, unscrew the
two screws which restrain the upper hinge on the left
and loosen the third screw located on the right.
B) Remove the upper hinge, first turning it anti-clockwise
and then withdrawing it upwards.
C) Next, remove the door from the refrigerator, withdrawing
it upward and re-position it carefully, paying attention
not to damage it.
D) only for model
: wind the cable and insert it in the
compartment behind the hinge, making sure it does not
project and obstruct the subsequent re-positioning of
the front panel.
4 A) Unfasten the three screws which restrain the central
hinge so that you can remove it.;
Door reversibility: dismantling door from the right
