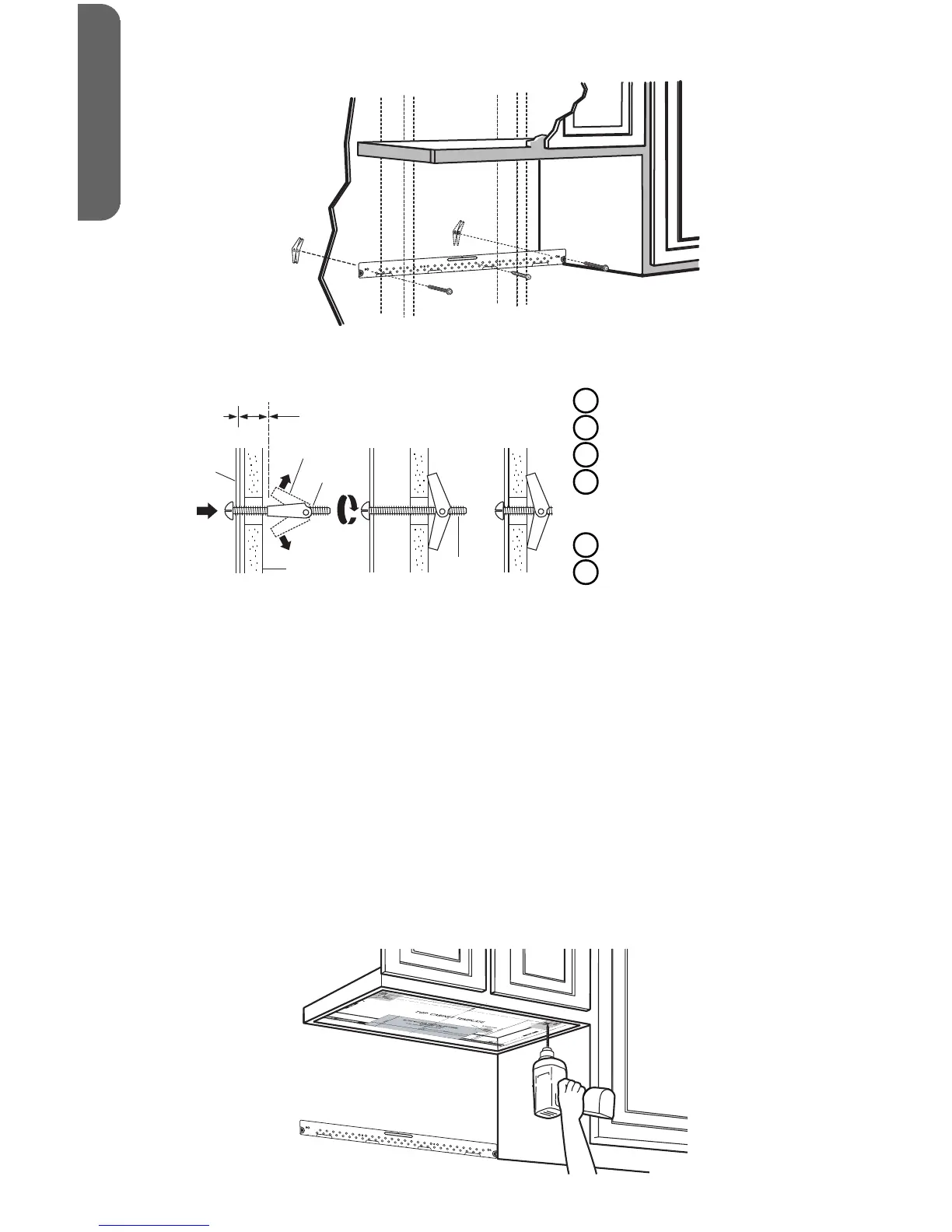

3. Place the mounting plate against the wall and insert the toggle wings into the
holes in the wall to mount the plate.
A
Mounting Plate
B
Wall
C
Bolt End
D
Spacing for Toggles
More Than Wall
Thickness
E
Toggle Wings
F
Toggle Bolt
4. Press the mounting plate ush against the wall. Make sure the mounting plate
touches the bottom of the horizontal line and that the plate is centered under
the cabinet.
NOTE: Avoid pinching
ngers between the back of the mounting plate
and the wall.
5. Tighten all bolts.
NOTE: Pull the plate away from the wall to help tighten the bolts.
PREPARE OVERHEAD CABINET
1. Read the instructions on the Top Cabinet template, and then tape the template
underneath the overhead cabinet.
2. Drill the holes following the instructions on the template.
•
Drill holes for the top support screws.
•
Drill a hole large enough for the power cord to
t through.
•
Drill a cutout large enough for the exhaust adapter.
