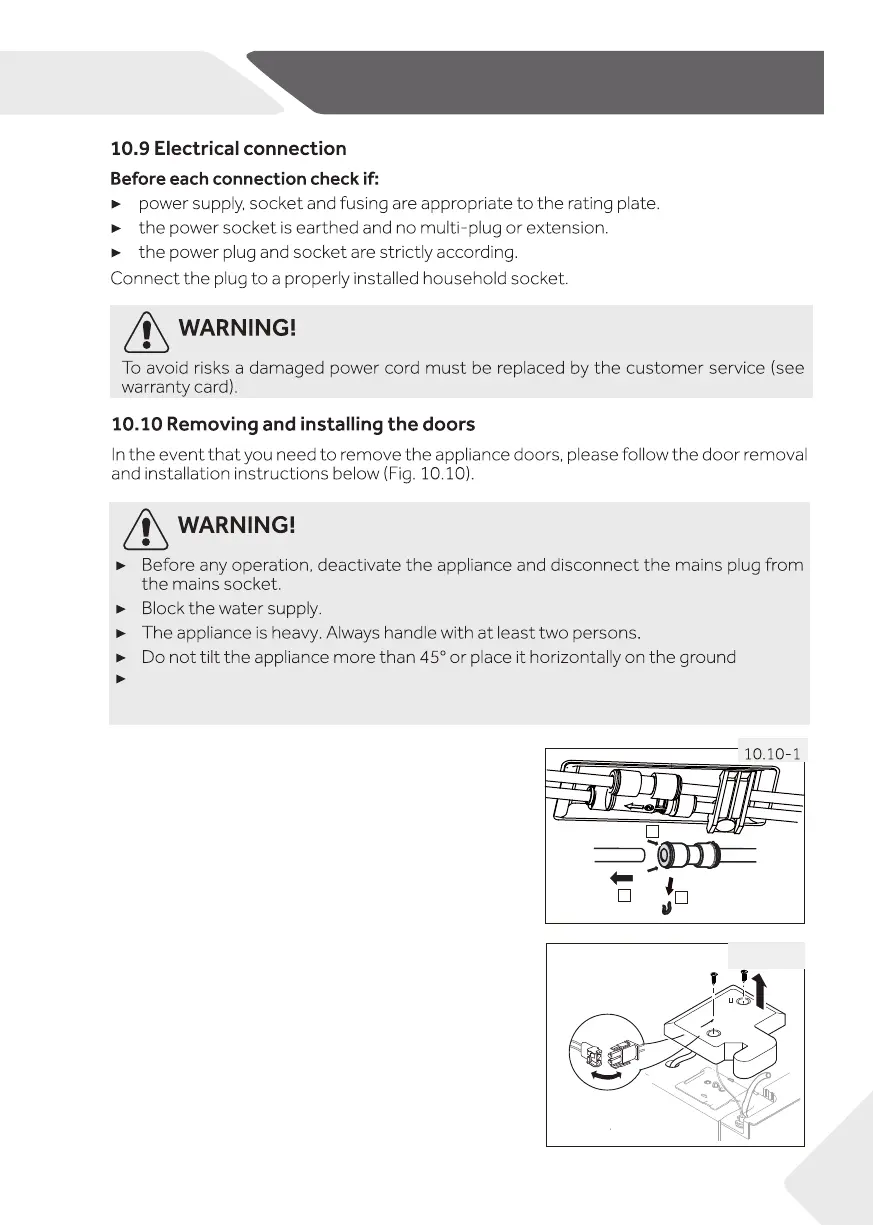

10-Installation
The door may fall over and hurt people, or get damaged during these steps, please
pay more attention when removing and installing doors.
2. Undo the hinge cover screw and remove the co-
ver (Fig. 10.10-2). When removing the freezer door,
disconnect all wires except for the grounding wire.
1. Release the left side of two water couplers on the
front left corner at the bottom of appliance: pre-
ss and hold in the collar as shown and remove the
water pipe. (Fig.10.10-1).
10.10-2
1
2
3
