EN
Installation
17

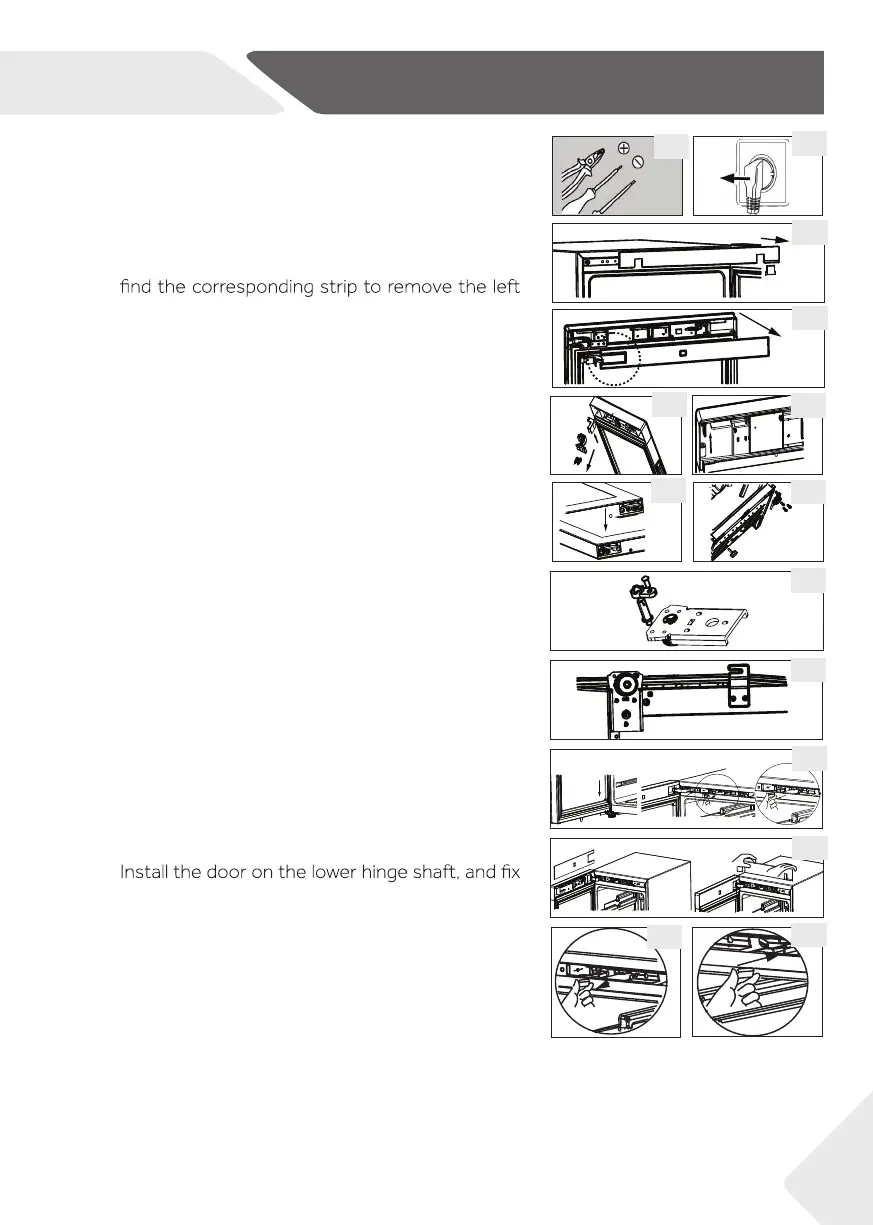

Assemb
(for HWS77GDAU1/HWS42GDAU1)
ly steps
1. Provide necessary tool.
2. Unplug the appliance.
3. Open the door, take down the front strip and
side and placed on the right side of the gap.
4. Unplug the connection cable.Pull-out the upper
part of the door seal, and take down the door
back strip. (Remove from the left side opening)
5. Remove 2 screws on the upper hinge.
6. Remove cover and hinge, remove axe cover
then assemble to the other side, then install the
hinge in the axe.
7. Remove the cam and door holder, move the
door holder to another side of the door. Install
the new cam form the gift bag.
8. Cabinet tilted (less than 45°), remove the bot-
tom hinge (3 screws) for backup.
9. Remove the lower hinge cam and hinge shaft.
Install the shaft on the right side of the lower
hinge. Take out the cam from the instruc-
tion bag and install it on the lower hinge shaft.
10. Install the lower hinge and the bottom foot on
the other side of the cabinet. Lubricate the cam.
11.
the upper hinge with two screws on the cabinet.
Fix the signal wires in the middle of the upper
hinge groove, and take the hinge cover in the
instruction bag and fasten it on the upper hinge.
12. Install the door seal and the door strip on
the door. Insert the pair of door signal wires,
move the magnetic switch (12.1) to the right
mounting slot (12.2) of the upper beam box,
and fasten the front trim of the cabinet.
13. Make sure the door is able to open and close in a
good condition.
1
2
3
4
5
6
7
12.1
12.2
8
9
10
11
12
To Next Page
