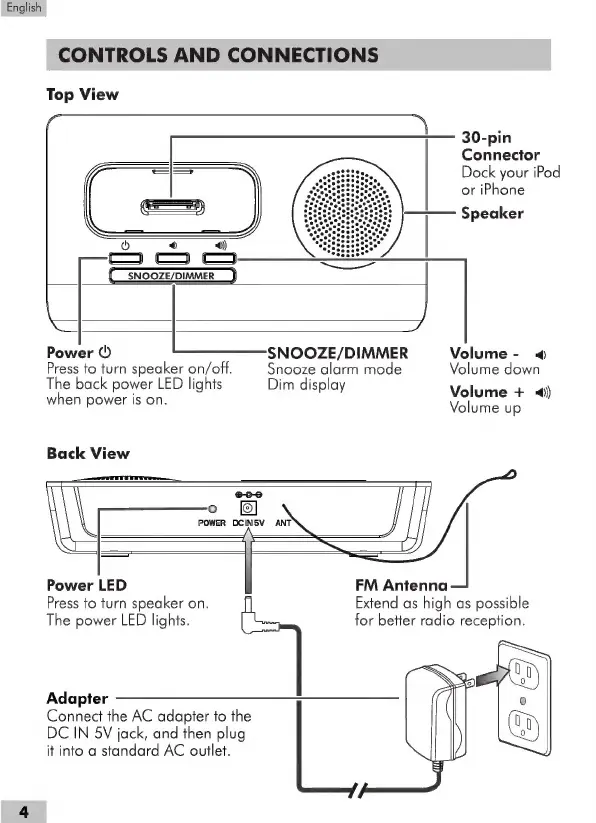

CONTROLS AND CONNECTIONS
Top View
a .
30-pin
Connector
Dock your iPod
or iPhone
Speaker
PE J
Power © SNOOZE/DIMMER Volume - «
Press to turn speaker on/off. Snooze alarm mode Volume down
We back power LED lights Dim display Volume + 4)
when power is on. Vol
olume up
Back View
een
eso
o
POWER DCINSV ANT
Power LED FM Antenna
Press to turn speaker on. Extend as high as possible
The power LED lights. for better radio reception.
Adapter
Connect the AC adapter to the
DC IN 5V jack, and then plug
it into a standard AC outlet.
