INSTALLATION
-8-
It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder,
video game or stereo system, etc.....
YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i,1080P.
This TV provides one group of AV, one group of YPbPr for convenient connection to VCR, DVD or other
video equipment. Please refer to the owner's manual of the equipment to be connected as well.

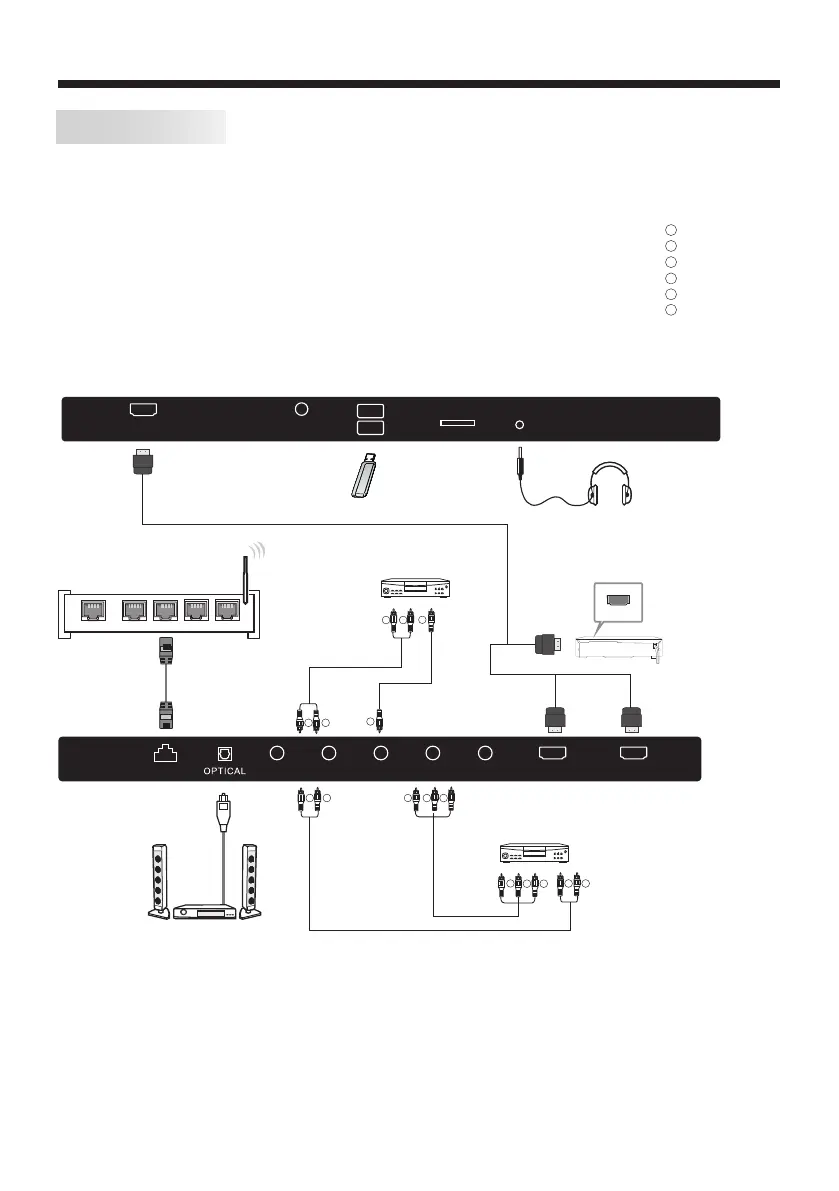

You can use the input terminals on TV set rear as follows.
AV EQUIPMENT
1.AV and YPbPr share one audio channel.
2.When HDMI port get DVI signal, the " Audio" channel is changed to receive the audio for HDMI port.
3.Sometimes it will not support in different device because the device supplys nonstandard signal.
AV
Note:
HDMI
Red (audio R)
White(audio L)
Red(Pr or Cr)
R
W
R
Blue(Pb or Cb)
Green(Y)
B
G
Yellow (video)
Y
1WAN 2
3
4
Audio Receiver
VIDEO EQUIPMENT with YPbPr
G
B R
G
B R
VIDEO EQUIPMENT
Y
W R
W R
W R
W R
Y
RJ45
L R VIDEO/Y Pb Pr
HDMI3 HDMI2
HDMI1
(ARC)
ANT IN
(ANTENNA/CABLE)
USB
USB
TF
EARPHONE
To Next Page
