Combination installation dimensions

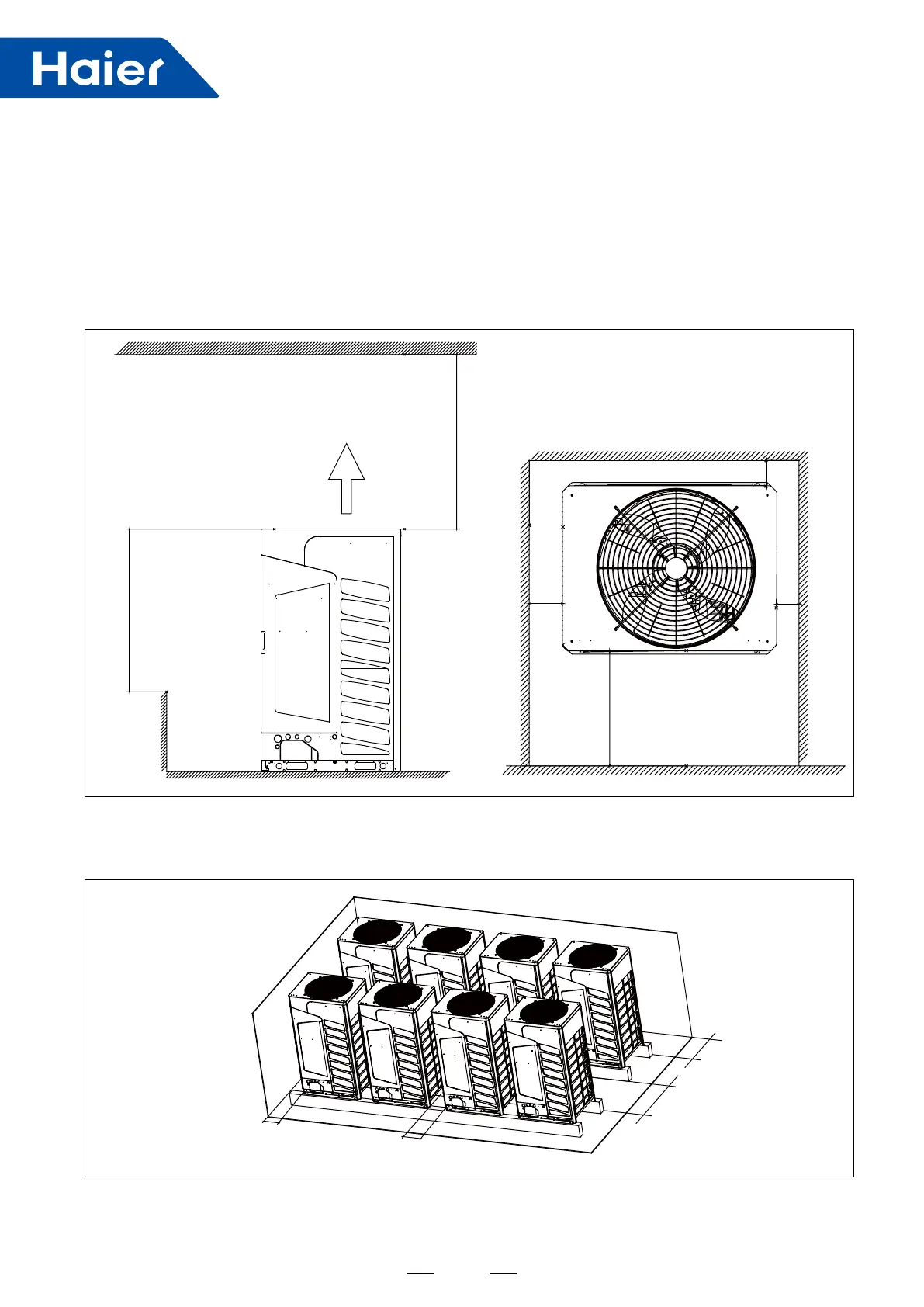

1. Single installation
• There should be no obstacles in 2000mm above the top of outdoor unit;
• Obstacles around outdoor should be greater than 900mm to the bottom of unit.
• When multiple modules are installed, the outdoor should be in ranked as the capacity, the larger capacity is
closer to the main pipe of gather pipe.
˃900mm
˃2000mm
Air outlet
˃1000mm
˃300mm
˃300mm
˃300mm
Front
Back
Left
Right
˃300mm
˃200mm
˃1000mm
˃300mm
Unit can be installed in the same or opposite direction
2. combination installation
