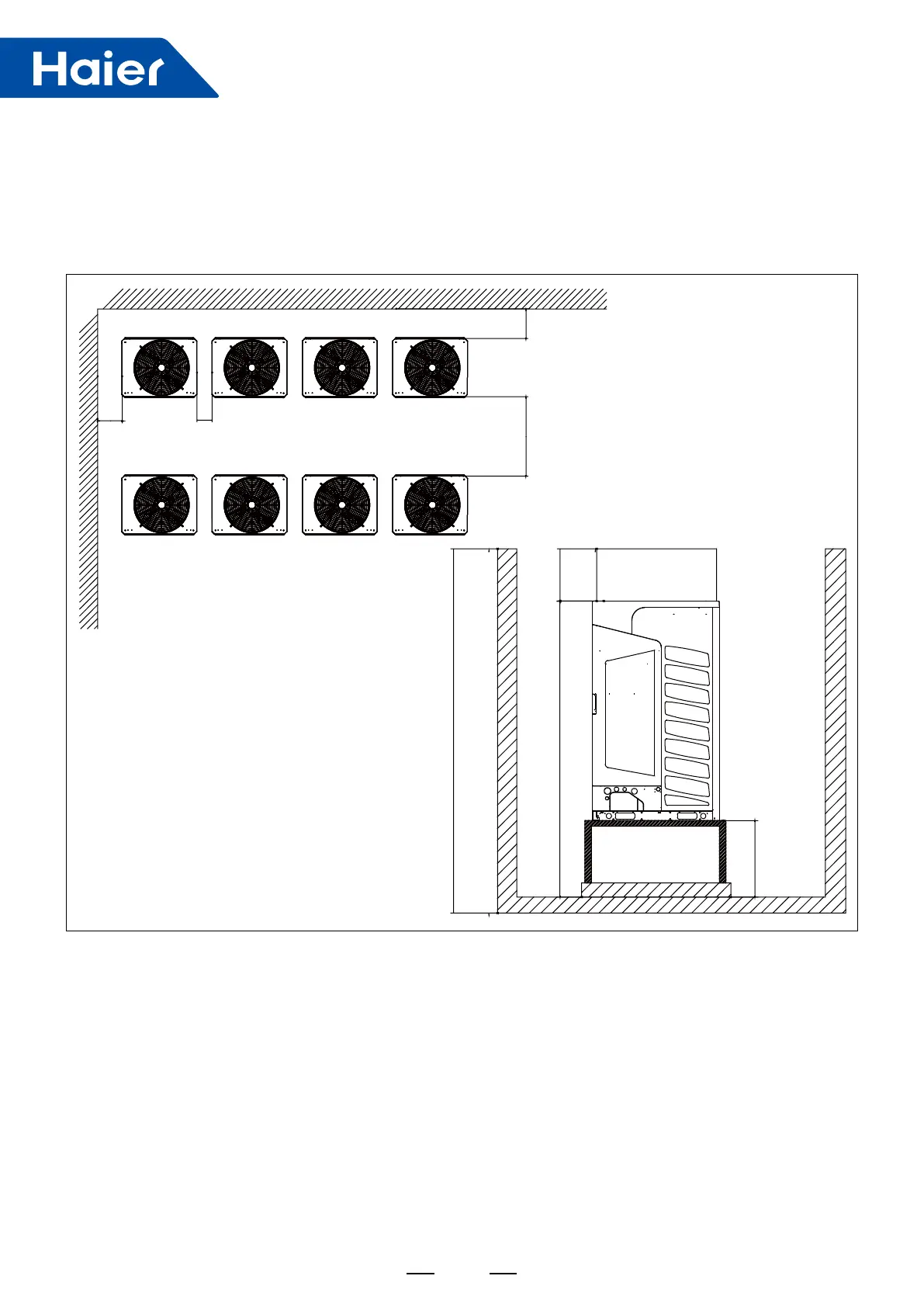

Place without air inlet hole
Notes:
a. Set a 500~1000mm bracket.
b. Air outlet height HD=H-h and below 1m.
˃300mm
˃300mm
˃1000mm
˃200mm
4. The outdoor machine installation should consider the impact of seasonal wind, don't let the wind directly into the
unit return air, otherwise it will affect the unit defrosting and related functions
5. Must be arranged to follow the following principles in the exhaust duct
• Install exhaust duct before the machine must be taken out of the wind protection network, otherwise it will affect
the output of the unit, and then lead to the decline in performance, and even cause failure
• Increase the blinds, the unit will affect the air out of the air, reduce performance, and therefore do not recommend
the use of shutters. To use the shutter angle control at 15 degrees below, the distance between the control of
80mm above
• The exhaust duct is only allowed to have one elbow, otherwise it will cause bad operation of the machine
• Please install the soft connection between the unit and the air duct to prevent vibration and noise
• The exhaust air duct of each machine must be installed independently, and the exhaust hood of the machine is
prohibited to be assembled in parallel in any form, otherwise it may cause the failure of the unit.
H
HD
h
External air duct
500~1000
