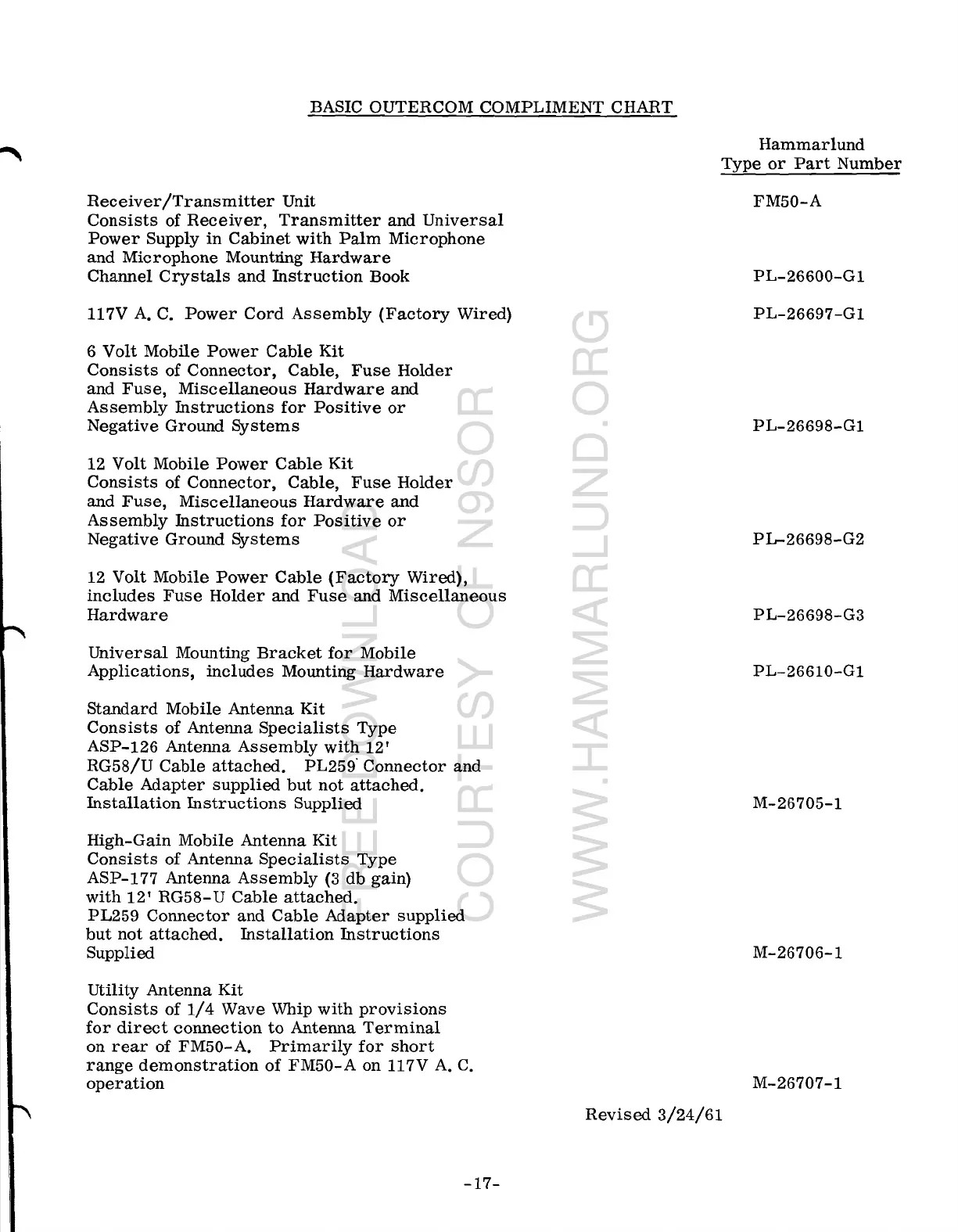

BASIC OUTERCOM

COMPLIMENT

CHART

Receiver/Transmitter

Unit

Consists

of

Receiver,

Transmitter

and

Universal

Power

Supply

in

Cabinet

with

Palm

Microphone

and

Microphone

Mountrlng

Hardware

Channel

Crystals

and

Instruction

Book

117V

A.

C.

Power

Cord

Assembly

(Factory

Wired)

6

Volt

Mobile

Power

Cable

Kit

Consists

of

Connector,

Cable,

Fuse

Holder

and

Fuse,

Miscellaneous

Hardware

and

Assembly

fustructions

for

Positive

or

Negative

Ground

Systems

12

Volt

Mobile

Power

Cable

Kit

Consists

of

Connector,

Cable,

Fuse

Holder

and

Fuse,

Miscellaneous

Hardware

and

Assembly

fustructions

for

Positive

or

Negative

Ground

Systems

12 Volt

Mobile

Power

Cable

(Factory

Wired),

includes

Fuse

Holder

and

Fuse

and

Miscellaneous

Hardware

Universal

Mounting

Bracket

for

Mobile

Applications,

includes

Mounting

Hardware

Standard

Mobile

Antenna

Kit

Consists

of

Antenna

Specialists

Type

ASP-126

Antenna

Assembly

with

12'

RG5S/D

Cable

attached.

PL259'

Connector

and

Cable

Adapter

supplied

but

not

attached.

Installation

Instructions

Supplied

High-Gain

Mobile

Antenna

Kit

Consists

of

Antenna

Specialists

Type

ASP-177

Antenna

Assembly

(3

db

gain)

with

12'

RG58-

U

Cable

attached.

PL259

Connector

and

Cable

Adapter

supplied

but

not

attached.

fustallation

Instructions

Supplied

Utility

Antenna

Kit

Consists

of

1/4

Wave Whip

with

provisions

for

direct

connection

to

Antenna

Terminal

on

rear

of

FM50-A.

Primarily

for

short

range

demonstration

of

FM50-A

on 117V A.

C.

operation

Hammarlund

Type

or

Part

Number

FM50-A

PL-26600-G

1

PL-26697-Gl

PL-26698-G1

PL-26698-G2

PL-26698-G3

PL-26610-G1

M-26705-1

M-26706-1

M-26707-1

Revised

3/24/61

-17-
