Hammarlund FM50A - Page 28

CENTER
OUTSI
DE CONTACT
......... , BLACK
RED
WHITE
GREEN
\ J
........

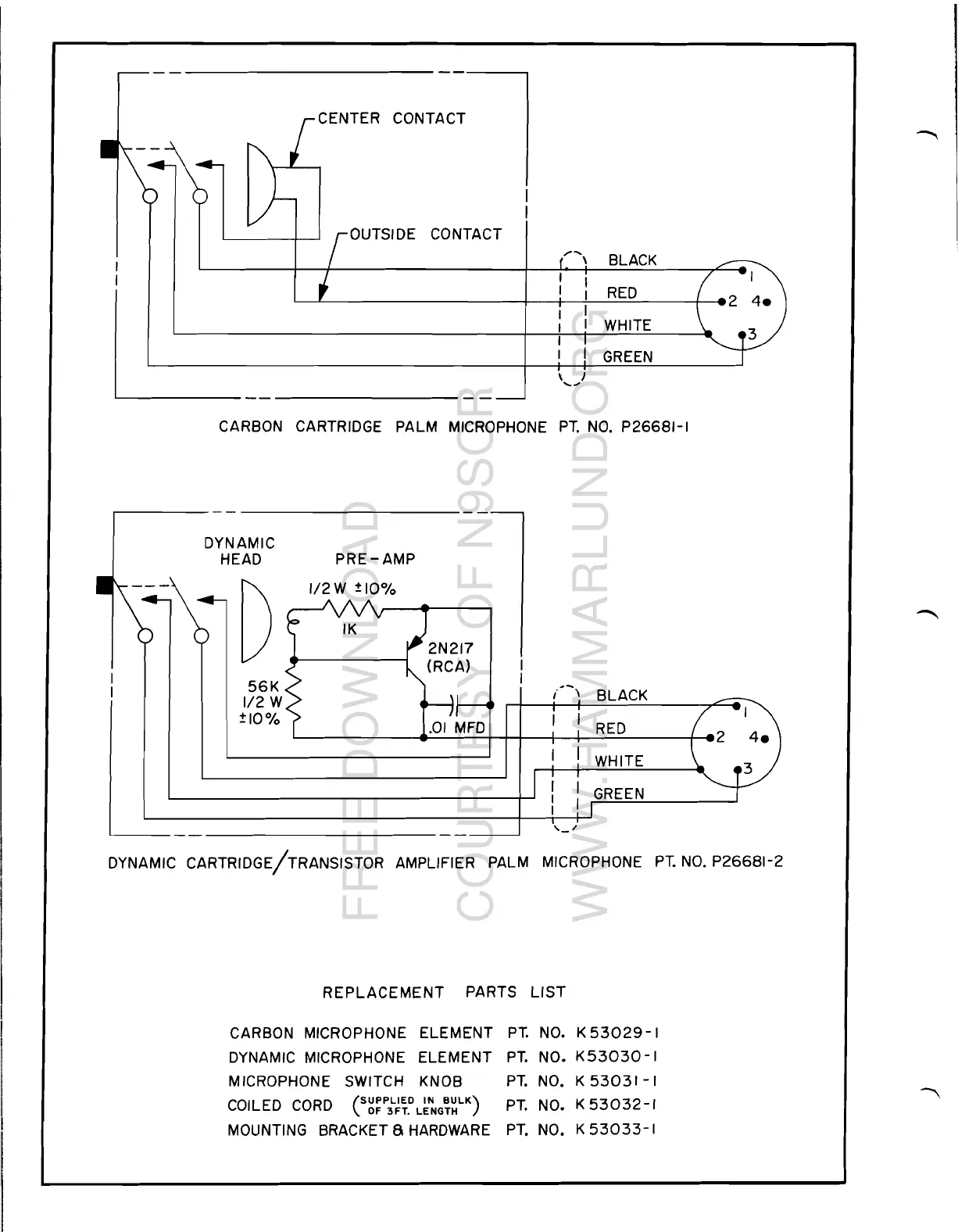

CARBON CARTRIDGE PALM MICROPHONE PT. NO. P26681-1
DYNAMIC
HEAD
PRE-AMP
1/2W ±IO%
2N217
(RCA)
56K
i--' BLACK
1/2 W
±IO%
.01 MFD
RED
WHITE
GREEN
DYNAMIC CARTRIDGE/TRANSISTOR AMPLIFIER PALM MICROPHONE PT. NO. P26681-2
REPLACEMENT PARTS LIST
CARBON MICROPHONE ELEMENT
PI. NO. K 53029-1
DYNAMIC MICROPHONE ELEMENT
PT. NO. K 53030-1
MICROPHONE SWITCH KNOB
PT. NO. K 53031-1
COILED
CORD (sg~P3L~~~ L~~G~~LK)
PT. NO. K 53032-1
MOUNTING BRACKET a HARDWARE
PT. NO. K 53033-1
