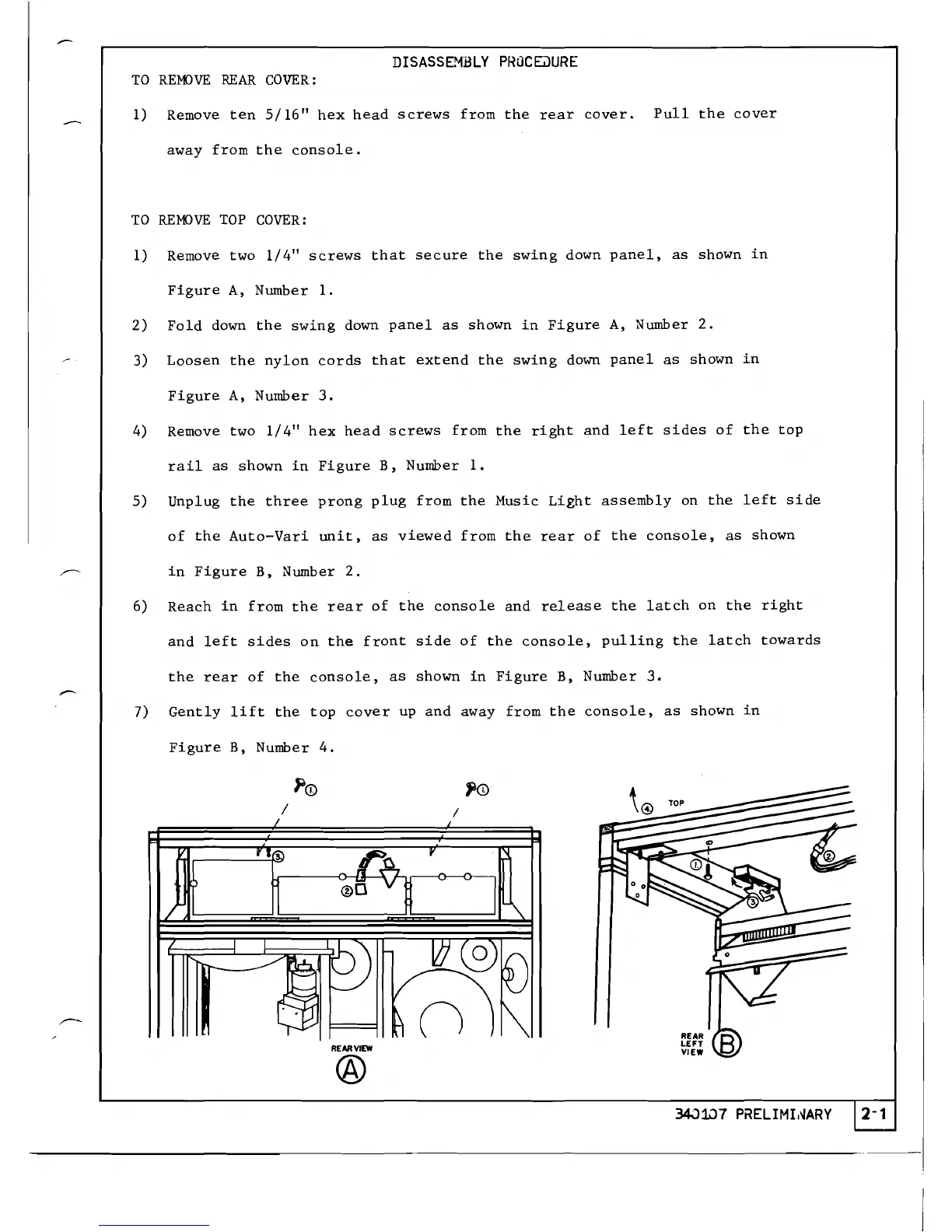

DISASSEMBLY
PROCEUURE
TO REillVE
REAR
COVER:
1) Remove
ten
5/16
11
hex
head
screws
from
the
rear
cover.
Pull
the
cover
away
from
the
console.
TO REillVE TOP
COVER:
1) Remove two
1/4
11
screws
that
secure
the
swing
down
panel,
as
shown
in
Figure
A, Number
1.
2)
Fold
down
the
swing
down
panel
as
shown
in
Figure
A, Number
2.
3)
Loosen
the
nylon
cords
that
extend
the
swing
down
panel
as
shown
in
Figure
A, Number
3.
4) Remove two
1/4"
hex
head
screws
from
the
right
and
left
sides
of
the
top
rail
as
shown
in
Figure
B, Number
1.
5)
Unplug
the
three
prong
plug
from
the
Music
Light
assembly
on
the
left
side
of
the
Auto-Vari
unit,
as
viewed
from
the
rear
of
the
console,
as
shown
~
I
in
Figure
B, Number
2.
6)
Reach
in
from
the
rear
of
the
console
and
release
the
latch
on
the
right
and
left
sides
on
the
front
side
of
the
console,
pulling
the
latch
towards
the
rear
of
the
console,
as
shown
in
Figure
B, Number
3.
-
7)
Gently
lift
the
top
cover
up
and
away
from
the
console,
as
shown
in
Figure
B, Number
4.
"(J)
'(J)
I
/
",..-...
REAR
VIEW
®
340107
PRELIMI,~ARY
I
2-1
