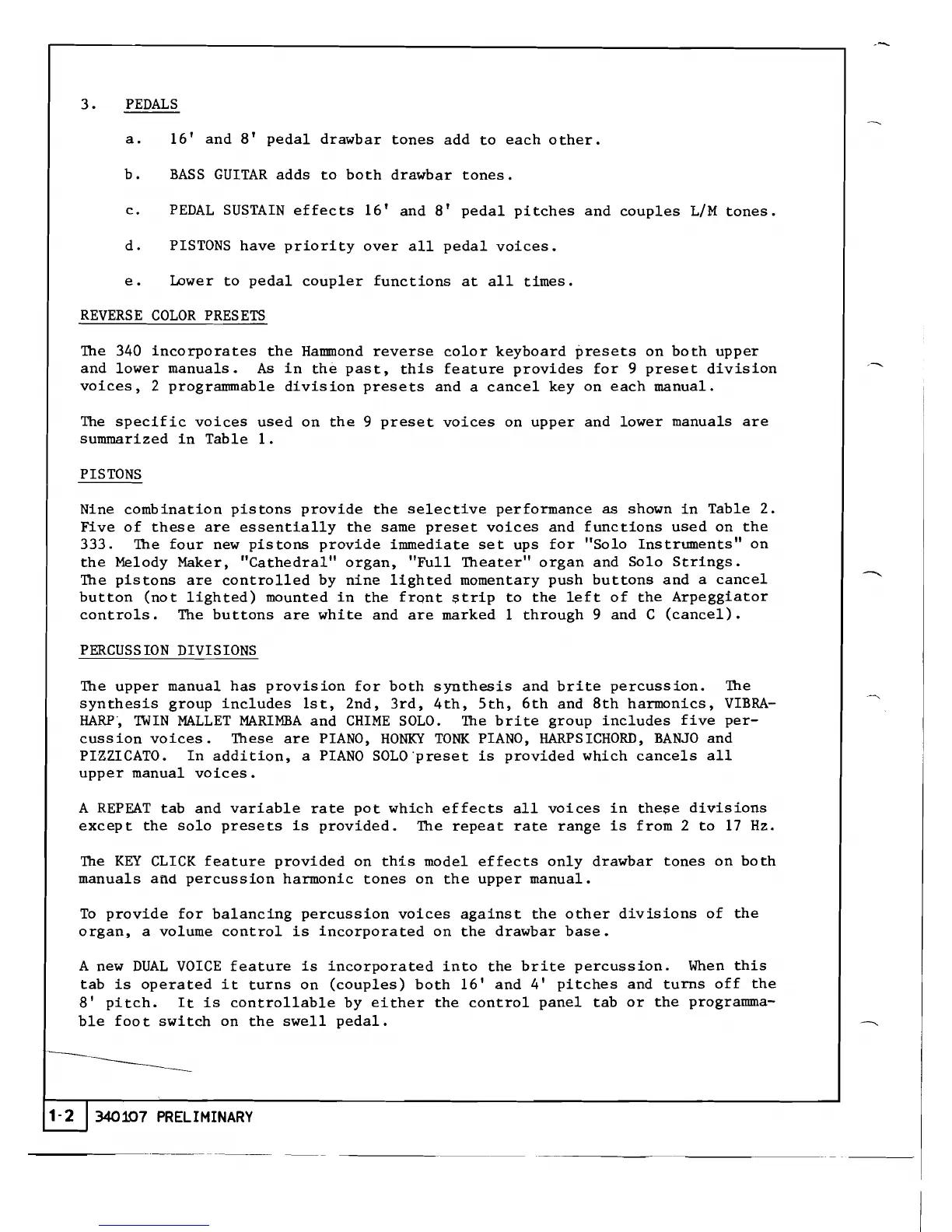

3. PEDALS
a. 16' and 8' pedal drawbar tones add to each other.
b. BASS GUITAR adds to both drawbar tones.
c. PEDAL SUSTAIN effects 16' and 8' pedal pitches and couples LIM tones.
d. PISTONS have priority over all pedal voices.
e. Lower to pedal coupler functions at all times.
REVERSE COLOR PRESETS
The 340 incorporates the Hammond reverse color keyboard presets on both upper
and lower manuals. As in the past, this feature provides for 9 preset division
voices, 2 programmable division presets and a cancel key on each manual.
The specific voices used on the 9 preset voices on upper and lower manuals are
summarized in Table 1.
PISTONS
Nine combination pistons provide the selective performance as shown in Table 2.
Five of these are essentially the same preset voices and functions used on the
333. The four new pistons provide immediate set ups for "Solo Instruments" on
the Melody Maker, "Cathedral" organ, "Full Theater" organ and Solo Strings.
The pistons are controlled by nine lighted momentary push buttons and a cancel
button (not lighted) mounted in the front strip to the left of the Arpeggiator
controls. The buttons are white and are marked 1 through 9 and C (cancel).
PERCUSSION DIVISIONS
The
upper manual has provision for both synthesis and brite percussion. The
synthesis group includes 1st, 2nd, 3rd, 4th, 5th, 6th and 8th harmonics, VIBRA-
HARP, TWIN MALLET MARIMBA and CHIME SOLO. The brite group includes five per-
cussion voices. These are PIANO, HONKY TONK PIANO, HARPSICHORD, BANJO and
PIZZICATO. In addition, a PIANO SOLO'preset is provided which cancels all
upper manual voices.
A REPEAT tab and variable rate pot which effects all voices in these divisions
except the solo presets is provided. The repeat rate range is from 2 to 17 Hz.
The
KEY CLICK feature provided on this model effects only drawbar tones on both
manuals and percussion harmonic tones on the upper manual.
To provide for balancing percussion voices against the other divisions of the
organ, a volume control is incorporated on the drawbar base.
A new DUAL VOICE feature is incorporated into the brite percussion. When this
tab is operated it turns on (couples) both 16' and 4' pitches and turns off the
8' pitch. It is controllable by either the control panel tab or the programma-
ble foot switch on the swell pedal.
~ 340107 PRELIMINARY
"-------.- ----
.-----
---...
