Owner’s Manual
102
MIDI STRUCTURE
is keyboard has “Keyboard Channels” to transmit playing information of the key-
boards and “External Zone Channels” to control external MIDI equipment on the
keyboards.
KEYBOARD CHANNELS
e Keyboard channels transmit the playing information of the Upper, Lower and
Pedal parts. ese are used to exchange playing information with an external sequenc-
er.
e Upper channel transmits keyboard and controller data.
EXTERNAL ZONE CHANNELS
e External Zone channels are for using this keyboard as a simple master keyboard
to control the external MIDI equipment. ese are Patch parameters, and it is pos-
sible to make diff erent settings to each Patch.
ere are 3 external zones in total. Each can be allocated to the desired keyboards (for
example, 3 zones for the Upper keyboard or 1 each for the U/L/P keyboards).
EXPANDED KEYBOARDS
When a MIDI keyboard is used to expand the Lower and Pedal parts, they behave
as if the built-in keyboard on the keyboard, and, not only sounds the built-in sound
generator, but also are transmitted through the MIDI OUT jack to the keyboard
channels as well as transmitted to the external zones.

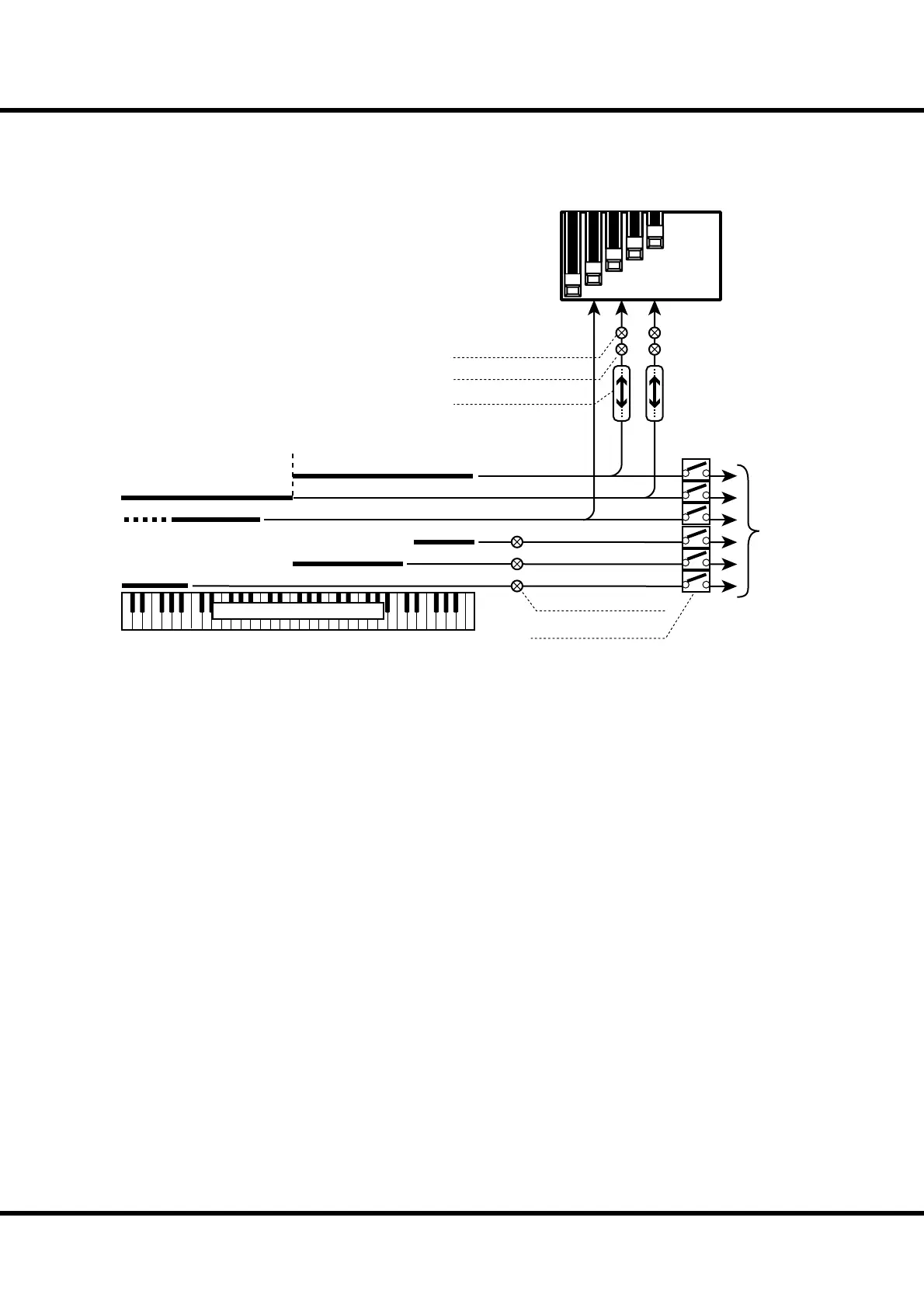

Map of the
MIDI structure
on
:-%
Organ
Section
Internal (Upper) Keyboard
Octave Shift (int. zone)
Octave Shift (part)
Octave Shift (ext. zone)
On/Off & MIDI Channel
Key Range
ExZone 3
ExZone 2
ExZone 1
Upper
Manual Bass
Lower
Split Point
Upper Kbd.
Lower Kbd.
Pedal Kbd.
to MIDI OUT
To Next Page
