Assembly (continued)

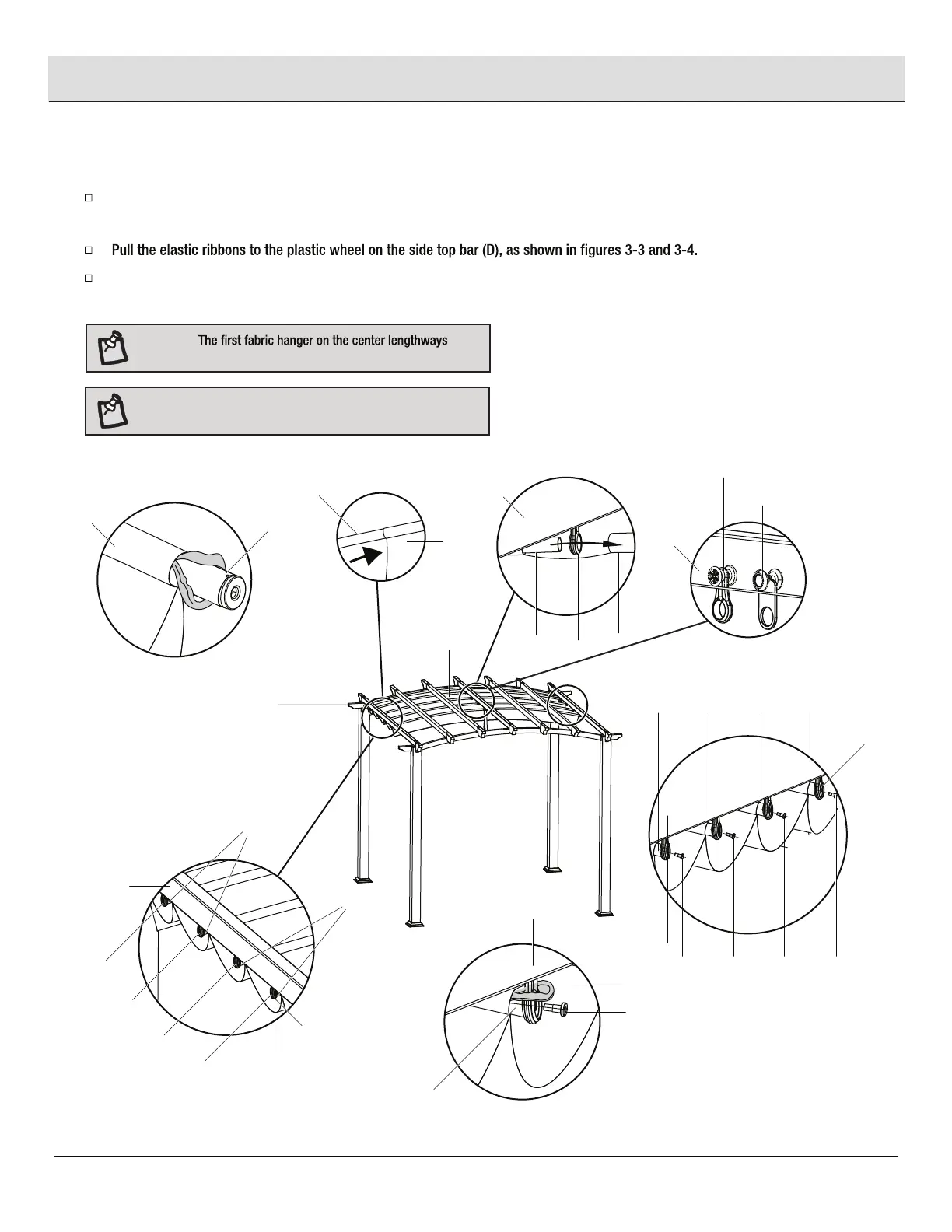

Connecting the long shade rods
Insert the long shade rods (G) into the slot at the end of the fabric shades (J), through the plastic wheels (E1)
and rolling wheel (E2), into the remaining slots of the fabric shades (J).
Attach the long shade rods (G) to the plastic wheels (L1) on the other side top bar (D), and secure with
M6x18 countersunk bolts (BB).
J
3-1
G
J
E
G
J
3-2
E1
J
G
3-3
A & B without
magnet iron plate
BB
D
3-5
G
G
L1
BB
BB
BB
G
G
G
J
BB BB BB BB
G G
L1
3-6
D
J
BB
G
3-4
NOTE
:
Fully tighten all the bolts using the hex wrench (GG).
NOTE
:
bar (E) is the rolling wheel, other are the plastic wheels.
E
E1 Plastic center
fabric wheel
E2 Steel Rolling Wheel
