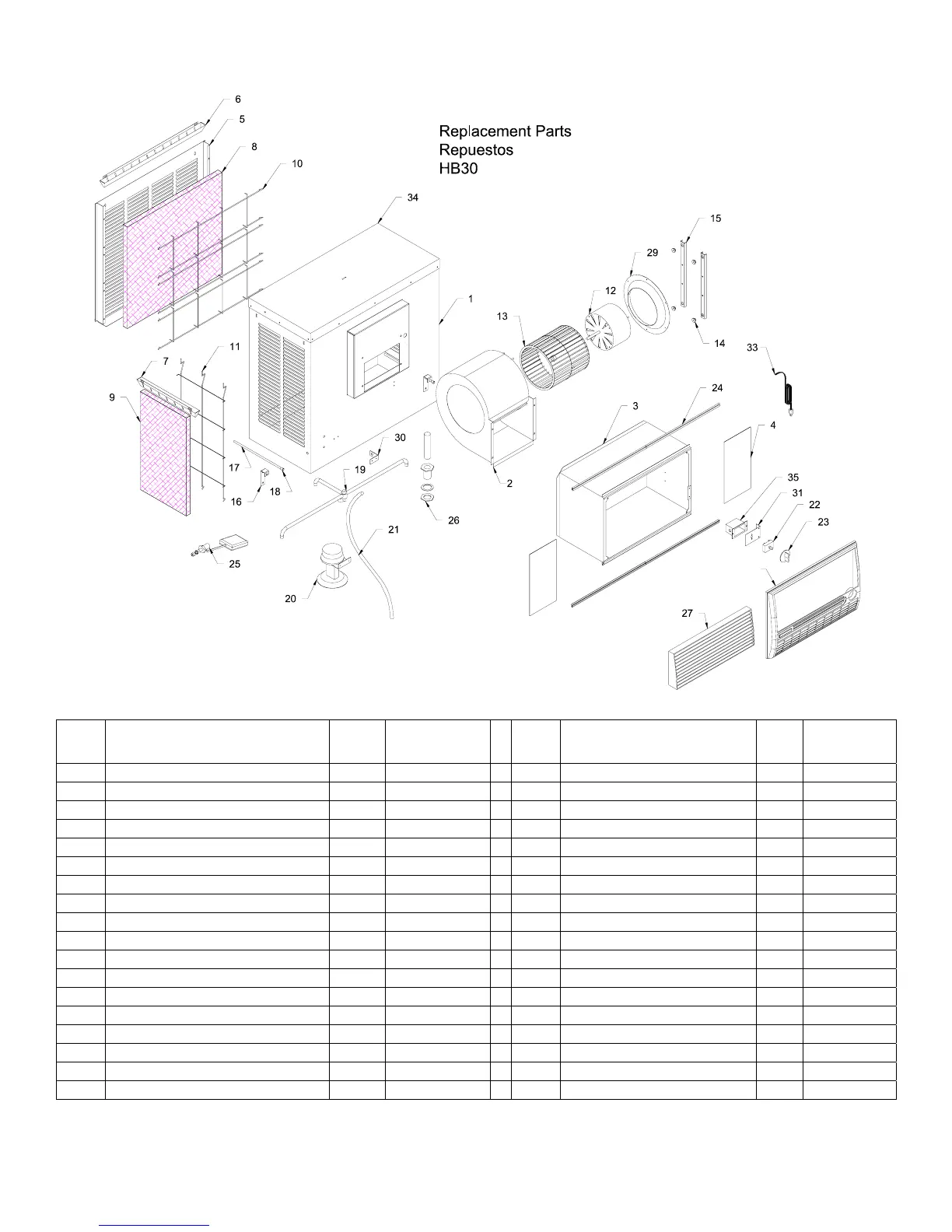

HAMPTON BAY HB30 - Page 5

32
Item
Description Qty Part No. Item Description Qty Part No.
1 Cabinet 1 70422 19 Water Distributor 1 70376
2 Blower 1 70366 20 Pump 1 71057
3 Duct 1 70371 21 Water Hose 1 598454
4 Side Sealer 2 70618 22 Switch 1 524299
5 Louver 1 70375 23 Knob 1 524300
6 Water Tray-Back 1 504268 24 Side Sealer Channel 4 70656
7 Water Tray-Side 2 504266 25 Float Valve 1 502389
8 Filter-Back 1 71053 26 Water Overflow Kit 1 506667
9 Filter-Side 2 71052 27 Sub-Vent Assembly 1 70741
10 Pad Retainer-back 1 504255 28 Louver Assembly** 1 71054
11 Pad Retainer-Side 2 70415 29 Inlet Ring 1 70425
12 Motor 1 70423 30 Float Bracket 1 70373
13 Blower Wheel 1 70424 31 Switch bracket 1 70798
14 Motor Mount Bushing 4 589040 32 Grille Frame 1 70658
15 Motor Mount 2 70431 33 Cord 1 70414
16 Stand-off Bracket 2 70417 34 Top 1 70851
17 Stand-off Rod 2 504341 35 Electrical box 1 524342
18 Rubber Foot 2 524344 36 Grille assembly* 1 71055
* Includes items 27 & 32. ** Includes items 5, 6, 8 & 10.
