Handicare 2000 SIMPLICITY - Page 55

ENGLISH
HINGE MOTORHINGE MOTOR
SPEED
ADJUSTMENT
(ALWAYS SET TO MAX FOR RTC)
HINGE LIMITS
4 WAY CONNECTOR
WITH MALE SPADE CONNS
GREEN/YELLOW
(USE ANY CONNECTION)
DIP-SWITCH
NEGATIVE
COMMS
GREY
(USE ANY CONNECTION)
ENSURE JUMPER IS
PRESENT ON CONNECTOR
LH HINGE
M1 = BLACK, M2 = BLUE
RH HINGE
M1 = BLUE, M2 = BLACK
M1 M2
ON
1234
HINGE
MOTOR
CSE126 HINGE
CONTROLLER PCB
FOR MOTOR CONNECTIONS
PLEASE SEE ACROSS
FROM
POWER SUPPLY
BLACK
WHITE
TOP CHARGE CONTACTS
GREY
GREY
GREY
BULLET
CONNECTOR
11
RED
RED
GREY
RED
INTERMEDIATE CHARGE CONTACTS
POSITIVE
COMMS
POSITIVE
COMMS
0V
33VDC
OPTIONAL OBJECT
DETECTOR
SENSOR INPUT
M1 M2
SPEED
ADJUSTMENT
HINGE SECTION
HINGE LIMITS
TOP LIMIT
BOTTOM LIMIT
YELLOW YELLOW
GRN/YELL (0V)
GREY (COMMS)
RED
RED
BULLET
CONNECTOR
NORMALLY OPEN SWITCHES
USED FOR HINGE LIMITS
BOTTOM LIMIT SWITCHES ARE
WIRED IN SERIES
ORANGE
ORANGE
CSE126 HINGE CONTROLLER MOTOR CONNECTIONS
LH HINGE
M1 = BLACK, M2 = BLUE
RH HINGE
M1 = BLUE, M2 = BLACK
HANDICARE 2000 SIMPLICITY / STYLE INSTALLATION MANUAL 55
Appendix 3

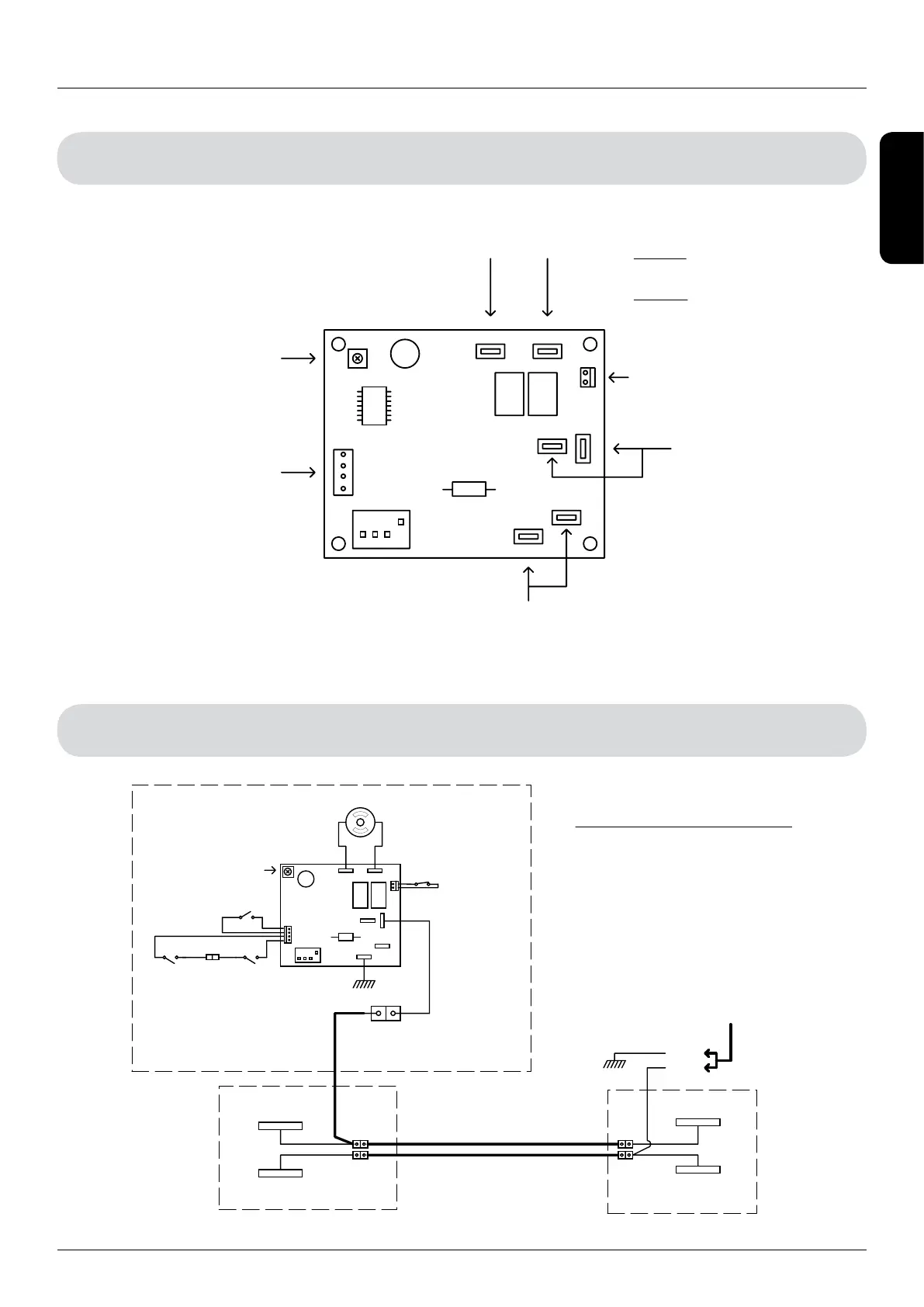

Hinge PCB connections – LH and RH
Hinge schematic – LH and RH
