2-13
SETUP

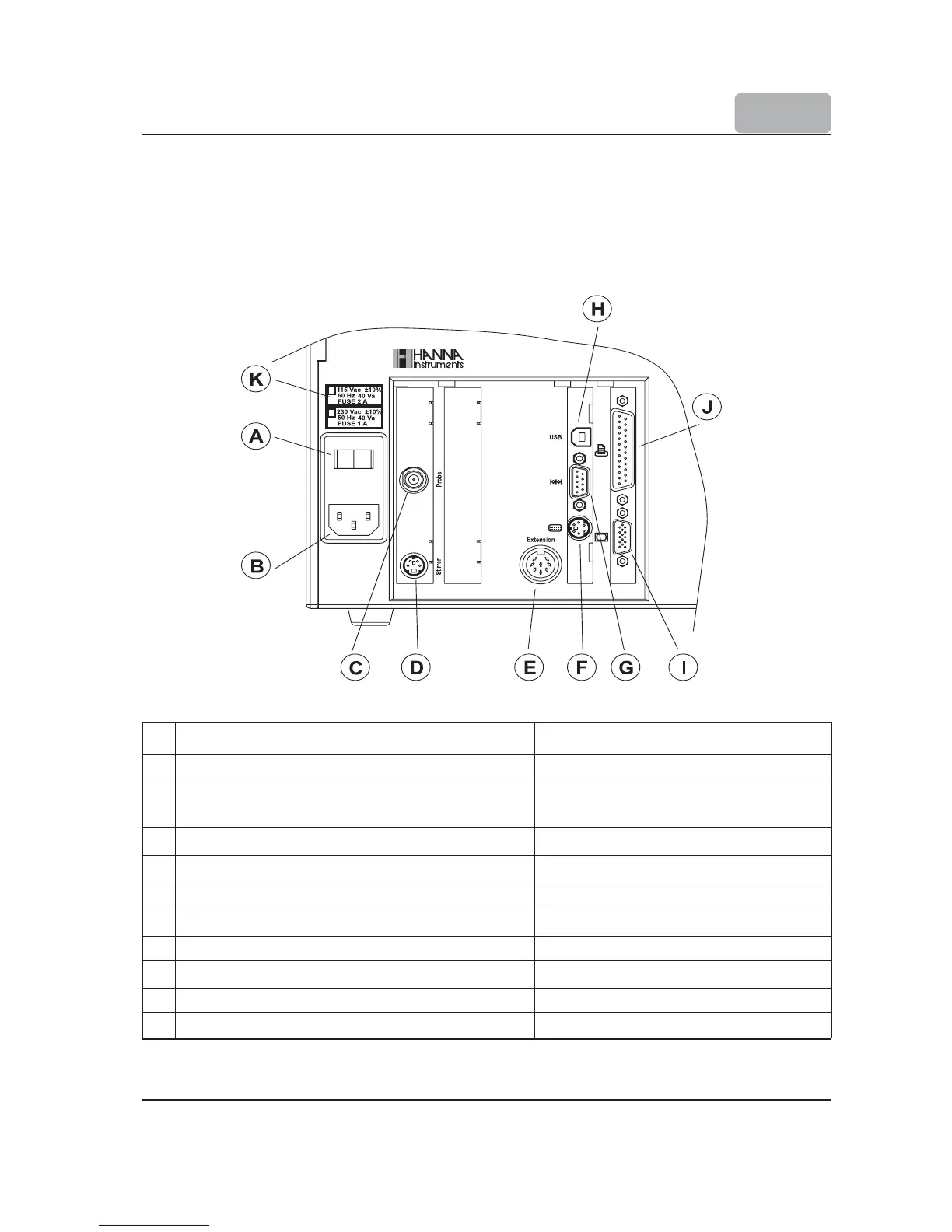

2.3.4.4 Electrical Connections
•
Connect the KF electrode to the BNC connector (C).
• Connect the power supply cable to the power supply connector (B).
Function Type of Connector
A Power switch
B Power supply (115/230 VAC, 50-60 Hz) IEC Power line connector
Check on titrator rear panel (K)
C KF probe BNC socket
D External magnetic stirrer 4-pin mini DIN
E Connector for expansion device 8-pin DIN socket
F External PC keyboard 6-pin mini-DIN (Standard PS2)
G Analytical balance interface (RS232) Standard DB 9 pin socket
H PC interface (USB) USB socket
I External display Standard VGA display 15-pin socket
J Parallel Printer DB 25–pin socket
Figure 8
