Hanna Instruments HI 903 - Solvent Waste Bottle Assembly

2-15
SETUP
2.3.5.2 Solvent / Waste Bottle Assembly (HI 900531)
Caution: Most Karl Fischer solvents give off harmful vapors.
Consult manufacturer’s MSDS for safe handling guidelines.
To assemble the solvent or waste bottle, see Figure 10 and
follow the next steps:
• Insert a teflon top (J) into a GL45 cap (E).
• Screw on the desiccant cap with hose barb (F);
• Insert a desiccant cartridge (B) with hose-barbed cap (A)
through a 10-mm fitting (F) and 10-mm o-ring (G);
• Insert and screw the desiccant fitting into the corresponding
hole. Fasten the desiccant cartridge assembly to teflon top (J)
with 10-mm fitting (F);
• Insert the solvent / waste tube (D) in the 5-mm fitting (H)
and attach the o-ring (I);
• Insert and screw the tube fitting into the corresponding hole.
• Screw GL45 (E) cap with full assembly onto titrant bottle.
• Add the air tube (C) to the desiccant cap (A) and connect it to
the corresponding position on the air pump. The “Fill” posi-
tion connects to the solvent bottle assembly. The “Empty”
position connects to the waste bottle assembly.

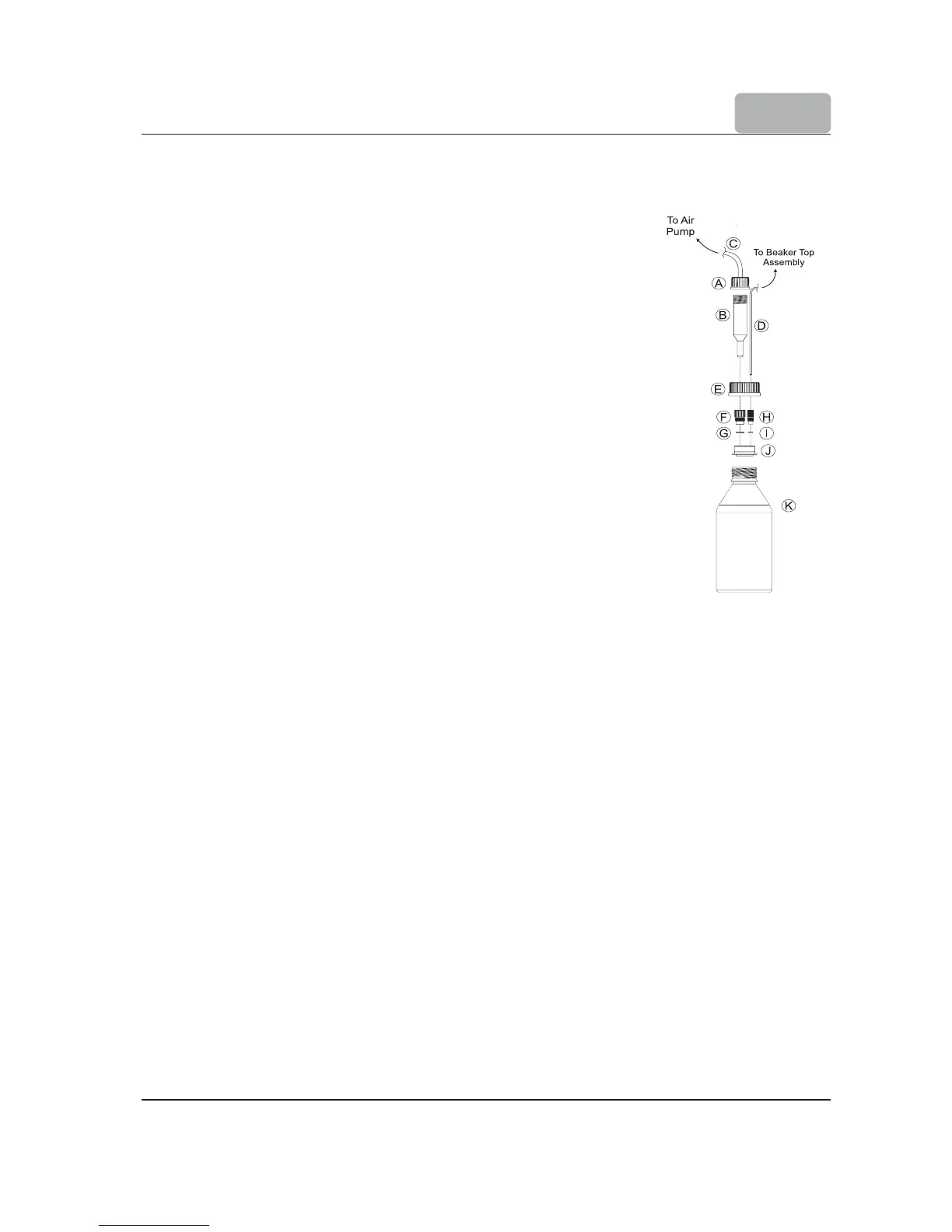

Figure 10
