WARNING:

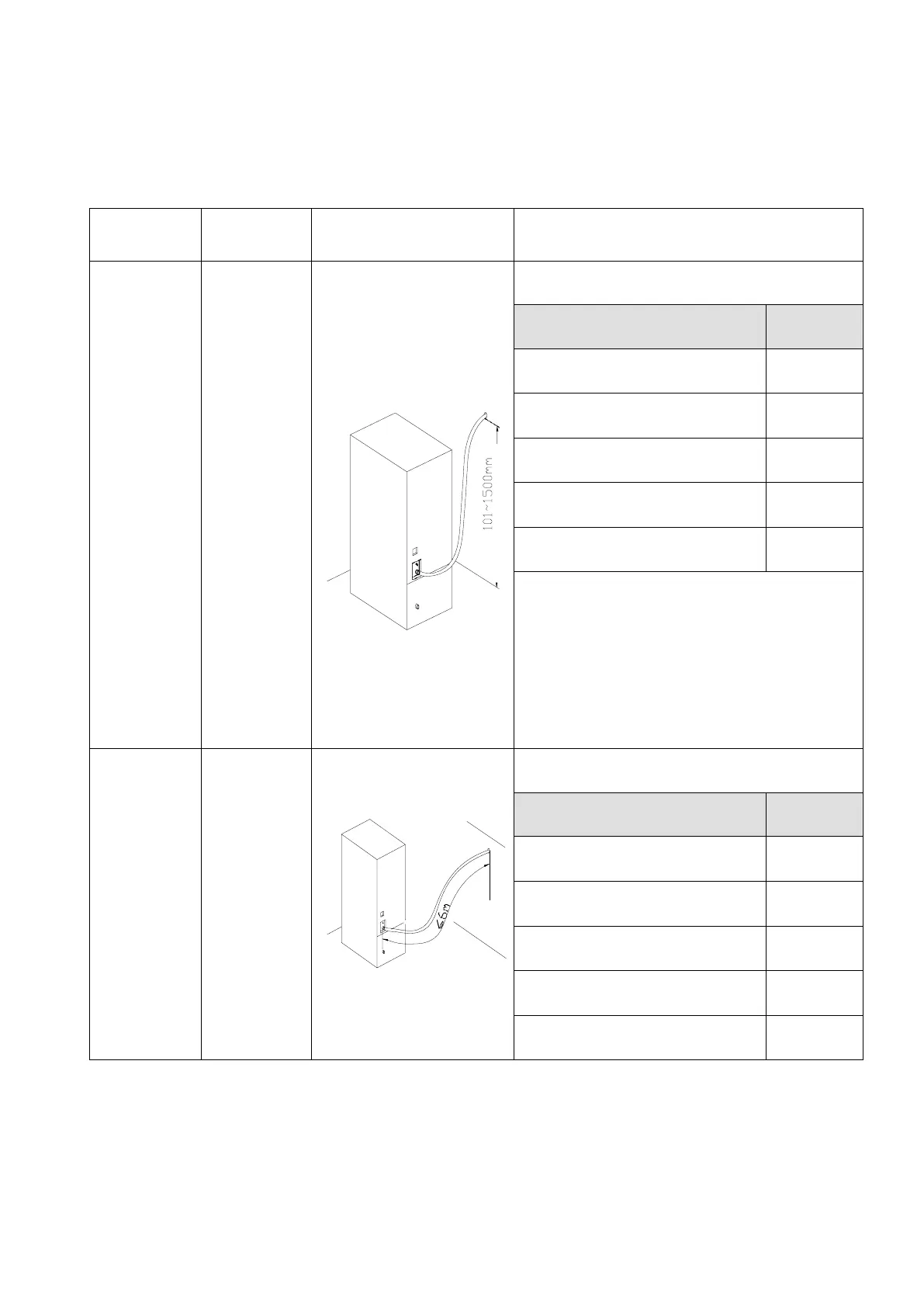

Please read following installation before using. Choose correct drain mode, and set your icemaker
accordingly.
Performance
Mode
Instructions
Suitable situation
Operation instruction
Direct drainage
mode
(Recommended
mode)
Unnecessary
water will be
drained off by
the outlet water
pipe on the
back of the unit
The height of drain hole in the
room ≤100 mm
(3-15/16”)
Ref: Fig.A & Fig.B & Fig.C
Screw Nut and Switch
Condition
screw nut(front) ③+seal washer(front)④
Lock
screw nut(back) ⑦+seal washer(back)⑥
Open
screw nut for valve seal⑪
Lock
screw nut for valve seal⑫
Open
force water outlet switch⑧
OFF
1. Please insure the screw nut and switch are in the
above condition;
2. Use a certain length drain pipe, connect one side
To the direct water outlet pipe connection (13) the
other to the drain hole. Please insure the connection is
tight to avoid water leakage.
Drain pump
mode.
(Recommended
mode)
Unnecessary
water will force
the drain out by
the pump on
back of the
unit.
The height of drain hole in the
room is between 4-59 inches
Ref: Fig.A & Fig.B & Fig.C
Screw Nut and Switch
Condition
Screw nut(front) ③+seal washer(front)④
Lock
Screw nut(back) ⑦+seal washer(back)⑥
Open
Screw nut for valve seal⑪
Lock
Screw nut for valve seal⑫
Open
Force water outlet switch⑧
OFF
