Hanover 9760701 - Door reversal instruction

16
 Door reversal instruction
The door can be changed from left to right side and vice versa. To switch the door opening, please refer to the
following directions:
① Bottom hinge (Right)
② Screws
③ Door axis
④ Door
⑤ Top hinge (Right)
⑥ Lock screws
⑦ Top hinge (Left)
⑧Bottom hinge (Left)

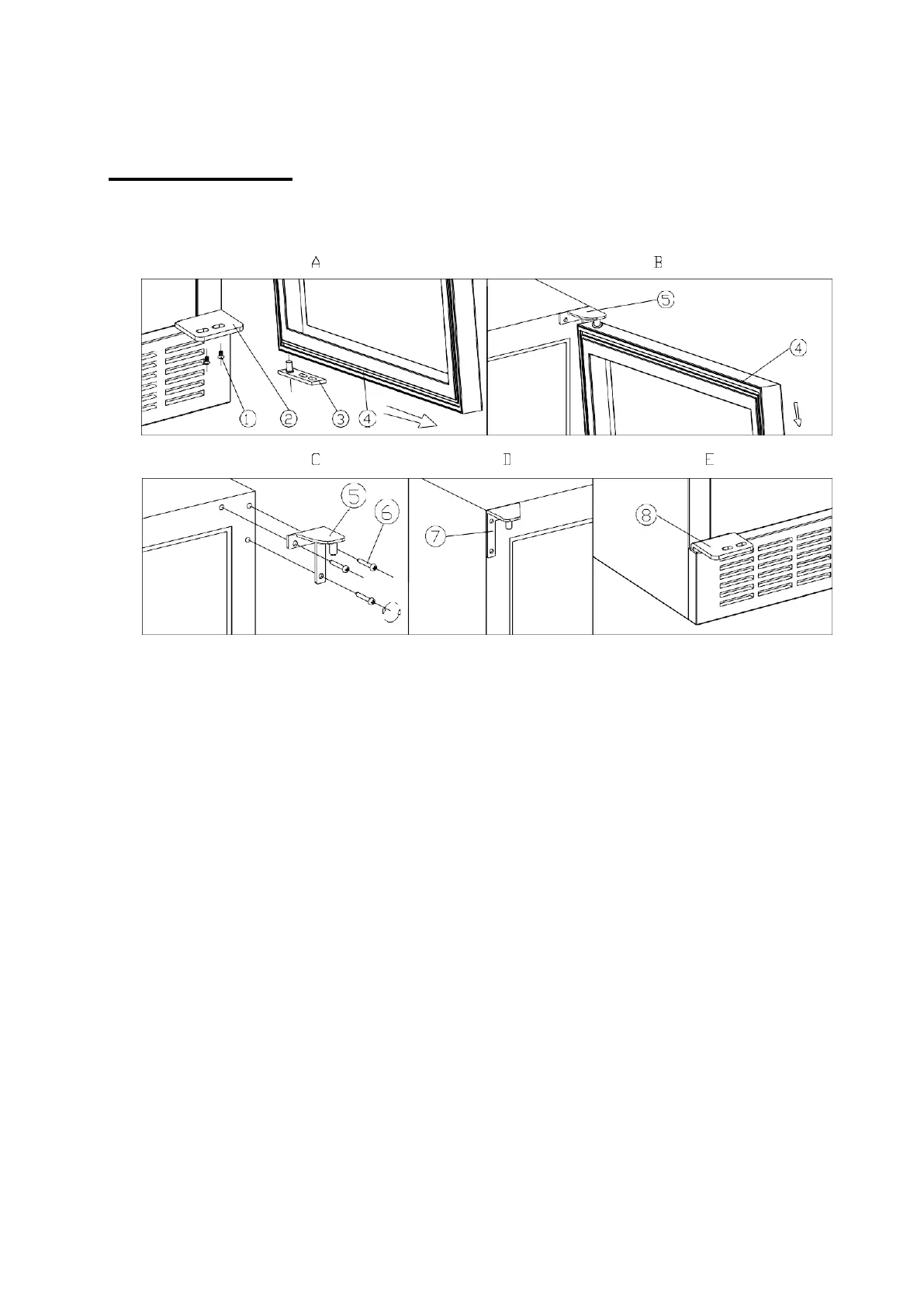

1. Remove 2 screws (1), then pull door (4) as of arrowhead direction and then the bottom hinge (Right) (2)(Fig.A
& Fig.B)
2. Remove 3 screws of right upper hinge, then remove right upper hinge (See Fig.C)
3. Use the screws which you removed from the right side hinges to fix the left upper hinge (See Fig.D & Fig.E)
4. Rotate the door 180°, and then assemble the door on the opposite side.
