Drain-pipe Connection
• Direct drainage or force drainage mode, the external drain connection instructions are below:

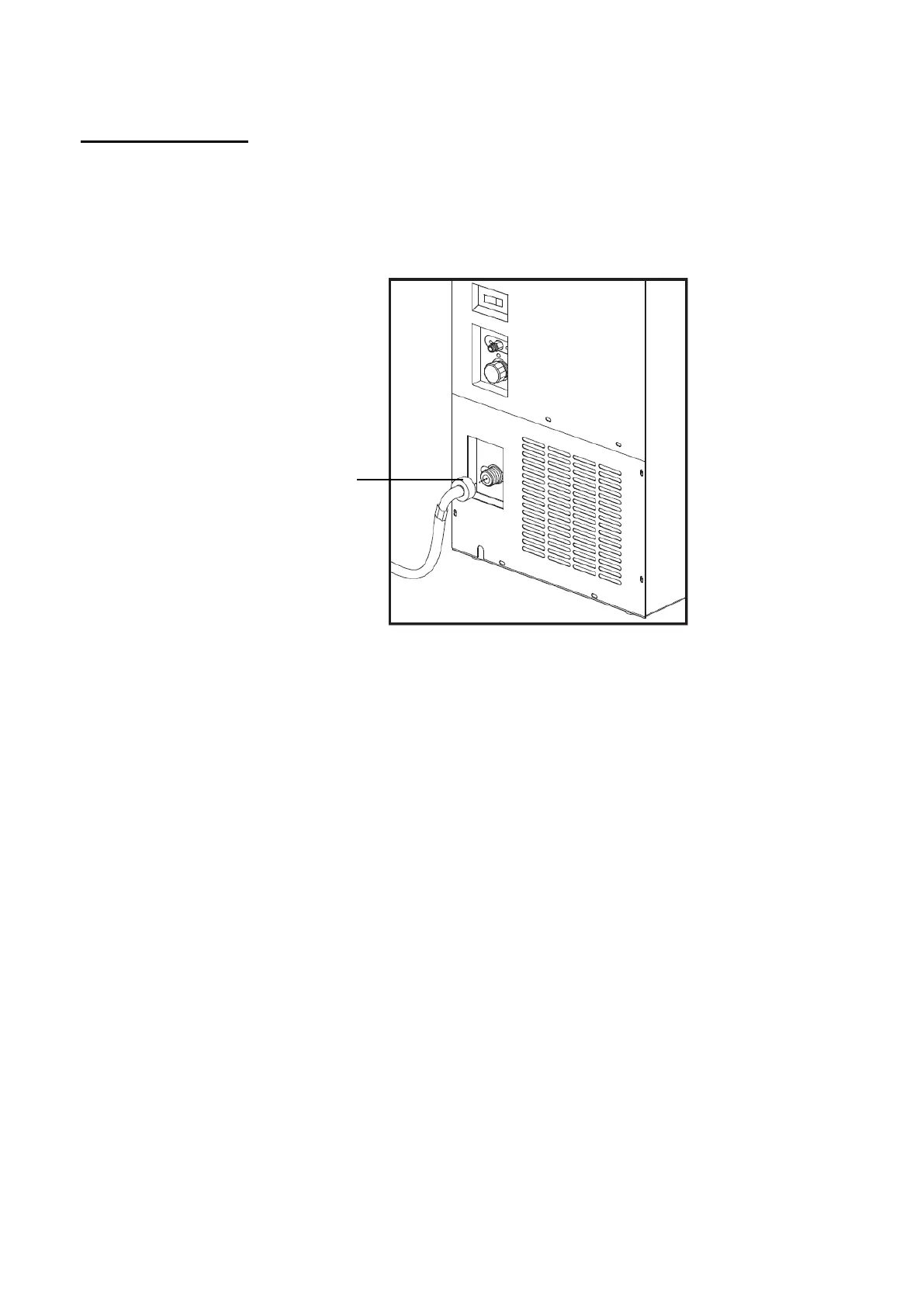

• Connect one side of the external drain pipe linker to the outlet pipe of ice maker, the other side is put into the
drain hole.(see Fig B.)
A- Pump assisted drain
B- Gravity fed continuous drain
NOTE: When using pump assisted drain “A” the switch (on back) must be turned to “ON” position.
Brass Compression Nut
A
B
