This document provides assembly instructions and parts lists for various Hanover Outdoor Furniture products, including a rocking chair, an ottoman, a table, and an umbrella.

Hanover Outdoor Furniture Rocking Chair

Function Description:

The Hanover Outdoor Furniture Rocking Chair is designed for outdoor use, providing a comfortable seating option with a rocking mechanism. The assembly involves attaching the chair frame to a swivel base and rocker assembly, ensuring all components are securely fastened for safe operation.

Important Technical Specifications:

Chair Frame (Part A): AR19742, Quantity: 1
Swivel Base & Rocker Assembly (Part B): AR19743, Quantity: 1
5/16" x 40 mm Bolt (Part C): HW0295, Quantity: 4
Ø8.0 x 2.3 mm Spring Washer (Part D): HW0003, Quantity: 4
"U" Metal Plate (Part E): HW0618, Quantity: 2
5/16" Nut (Part F): HW0015, Quantity: 4
Bolt Cover (Part G): HW0028, Quantity: 8
Hex Wrench-1 (Part H): HW0008, Quantity: 1
Hex Wrench-2 (Part I): HW0007, Quantity: 1
Rocker Plate Factory Assembly: G0141
Foot Cap Factory Assembly: FC0031

Usage Features:

The rocking chair assembly process is detailed in three steps. First, the "U" metal plates are installed on the rocker assembly, ensuring proper orientation with the arrows pointing towards the user. This step involves guiding bolts through the rocker assembly and "U" metal plates, securing them with spring washers and nuts. Second, the swivel base and rocker assembly is attached to the chair frame. This involves aligning the holes in the swivel base with the chair frame and securing them with bolts, spring washers, and nuts. Finally, all bolts are fully tightened using the provided hex wrenches. It is crucial to avoid over-tightening to prevent stripping the bolts.

Maintenance Features:

For future warranty claims, it is important to retain the Instruction Sheet, Warranty Card, and receipt. Additional online support for assembly, troubleshooting, and care & maintenance is available on the Hanover Products website. Bolt covers are provided to protect the nuts and bolts and enhance the aesthetic appeal of the furniture.

Hanover Outdoor Furniture Ottoman

Function Description:

The Hanover Outdoor Furniture Ottoman serves as a complementary piece to outdoor seating, providing a footrest or additional surface. Its assembly involves connecting leg connector bars, side legs, and a middle leg to the seat frame, ensuring a stable and robust structure.

Important Technical Specifications:

Seat Frame (Part A): AA0729, Quantity: 1
Side Leg (Part B): AA0730, Quantity: 2
Middle Leg (Part C): AA0731, Quantity: 1
Leg Connector Bar (Part D): AA0732, Quantity: 2
1/4" x 20 mm Bolt (Part E): HW0036, Quantity: 14
Ø6.5 x 1.0 mm Washer (Part F): HW0004, Quantity: 14
Bolt Cover (Part G): HW0105, Quantity: 14
Hex Bolt Driver (Part H): HW0006, Quantity: 1
Foot Cap Factory Assembly: FC0030

Usage Features:

The ottoman assembly is outlined in four steps. Initially, leg connector bars are attached to the middle leg using bolts and washers, hand-tightened for 2-3 turns. Next, side legs are connected to the leg connector bars, again with bolts and washers, and hand-tightened. The assembled base is then attached to the seat frame using bolts and washers, with hand-tightening for 2-3 turns. The final step involves making any necessary alignment adjustments and then fully tightening all bolts using the hex bolt driver. Over-tightening should be avoided to prevent stripping. Bolt covers are then placed over all bolts.

Maintenance Features:

Similar to other Hanover products, retaining the Instruction Sheet, Warranty Card, and receipt is recommended for future warranty claims. Online resources are available for assembly, troubleshooting, and care & maintenance. Bolt covers are included to protect the hardware and improve the overall appearance.

Hanover Outdoor Furniture Table

Function Description:

The Hanover Outdoor Furniture Table is designed for outdoor use, providing a stable surface for various activities. Its assembly focuses on securely connecting the table legs and leg connector bracket to the table top.

Important Technical Specifications:

Table Top (Part A): AT71868, Quantity: 1
Leg Connector Bracket (Part B): AT71869, Quantity: 1
Table Leg (Part C): AT71870, Quantity: 4
1/4" x 18 mm Bolt (Part D): HW0035, Quantity: 8
Ø6.5 x 1.0 mm Washer (Part E): HW0004, Quantity: 16
Bolt Cover (Part F): HW0105, Quantity: 8
1/4" Nut (Part G): HW0014, Quantity: 8
Nut Cover (Part H): HW0027, Quantity: 8
Hex Wrench (Part I): HW0009, Quantity: 1
Hex Bolt Driver (Part J): HW0006, Quantity: 1
Umbrella Pole Stopper & Nut Factory Assembly: G0091 & HW0448
Umbrella Hole Protective Ring (Set) Factory Assembly: G0235 & G0236
Foot Cap Factory Assembly: FC0069

Usage Features:

The table assembly is completed in three steps. First, the table top is placed upside down on a non-abrasive surface, and table legs are attached using bolts and washers, hand-tightened for 2-3 turns. Second, a leg connector bracket is attached to the table legs by guiding existing bolts through the bracket and securing them with washers and nuts, hand-tightened only. Third, after making any necessary alignment adjustments, all nuts and bolts are fully tightened using the hex bolt driver and hex wrench. It is advised to tighten in a cross-corner (X) fashion to apply equal pressure and to avoid over-tightening. All nuts and bolts are then covered with their respective covers.

Maintenance Features:

As with other Hanover products, keeping the Instruction Sheet, Warranty Card, and receipt is important for future warranty claims. Online support is available for assembly, troubleshooting, and care & maintenance. Bolt and nut covers are provided to protect the hardware and improve the aesthetic. The table also includes components for an umbrella, such as an umbrella pole stopper and protective ring, indicating its design for use with an umbrella.

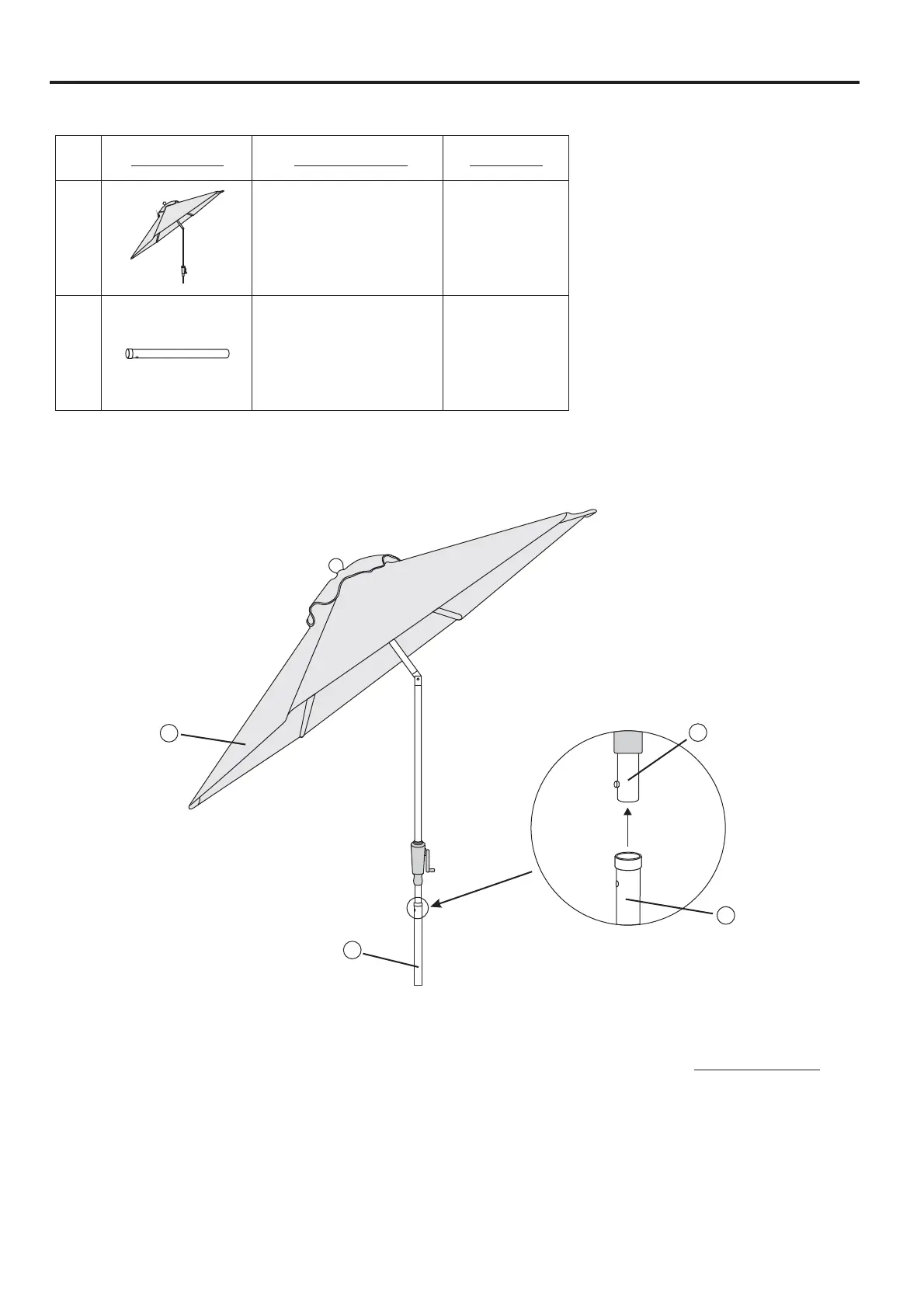

Hanover Outdoor Furniture Umbrella

Function Description:

The Hanover Outdoor Furniture Umbrella provides shade and protection from the elements for outdoor settings. It consists of an umbrella top and an umbrella pole, designed for straightforward assembly.

Important Technical Specifications:

Umbrella Top (Part A): Quantity: 1
Umbrella Pole (Part B): Quantity: 1

Usage Features:

The document shows a visual representation of the umbrella components and how they fit together. The umbrella top is designed to attach to the umbrella pole, likely through a simple insertion and locking mechanism, though detailed step-by-step instructions are not provided in this excerpt. The visual suggests the pole is inserted into a designated opening in the umbrella top.

Maintenance Features:

While specific maintenance instructions are not detailed in this excerpt, general outdoor furniture care principles would apply. This includes cleaning the umbrella fabric and pole as needed, and storing the umbrella when not in use or during inclement weather to prolong its lifespan. For warranty claims, retaining the Instruction Sheet, Warranty Card, and receipt is crucial. Online resources are available for assembly, troubleshooting, and care & maintenance.

General Information for all Hanover Outdoor Furniture Products:

Customer Support:

For any problems with the product, including missing or damaged parts or assembly issues, customers are advised NOT to return the product to the retailer/store. Instead, they should contact the Toll-Free Customer Service Hotline at 1-800-416-3511 between 9:00 AM and 5:00 PM Eastern Time, Monday through Friday. Alternatively, customers can visit the Hanover Products website at www.hanover-products.com for support.

Warranty and Documentation:

To expedite any future warranty claims, it is essential to retain the Instruction Sheet, Warranty Card, and receipt.

Online Resources:

For additional online support regarding assembly, troubleshooting, and care & maintenance of outdoor furniture, customers can visit www.hanover-products.com.

Important Assembly Note:

During assembly, it is crucial to hand-tighten bolts initially (typically 2-3 turns) and only fully tighten them after all components are aligned and in place. Over-tightening can strip bolts and cause damage to the product, potentially voiding the warranty. Bolt covers are provided to protect the hardware and enhance the product's appearance.

Hanover AAF06001 - Page 8
