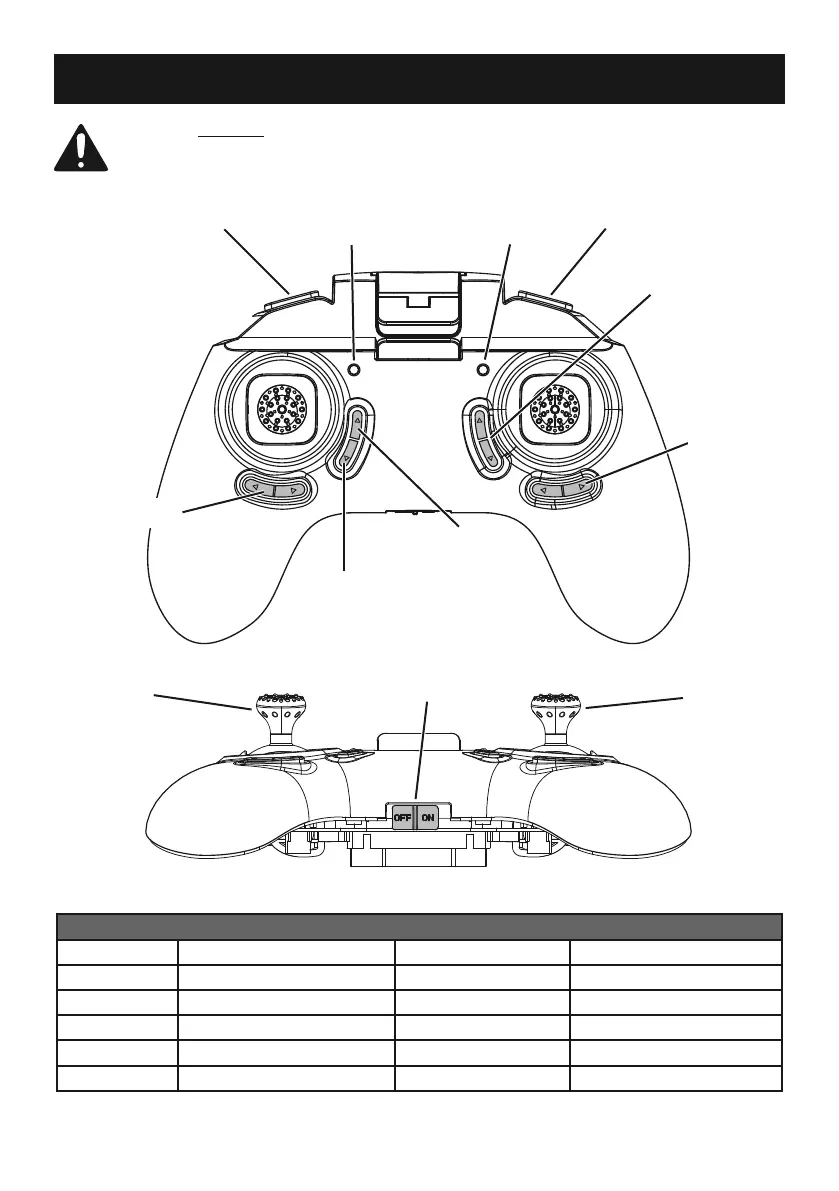

Controls
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the
beginning of this document including all text under subheadings therein
before set up or use.
Power
Switch
Power Indicator
Light
Throttle
Joystick
Directional
Joystick
Forward / Backward
Trim Button
Headless
Mode Button
One Key
Return Button
Left / Right
Trim Button
Left or Right Right
Turn Trim ButtonButton
Camera
Light
Start / Stop
Button
Picture / Video
Button
BASIC FUNCTIONS
UP Throttle Joystick Up MOVE LEFT Directional Joystick Left
DOWN Throttle Joystick Down MOVE RIGHT Directional Joystick Right
FORWARD Directional Joystick Up START DRONE Start / Stop Button
BACKWARD Directional Joystick Down HEADLESS MODE Headless Mode Button
TURN LEFT Throttle Joystick Left ONE KEY RETURN One Key Return Button
TURN RIGHT Throttle Joystick Right TRIM ADJUSTMENT Refer to page 10
