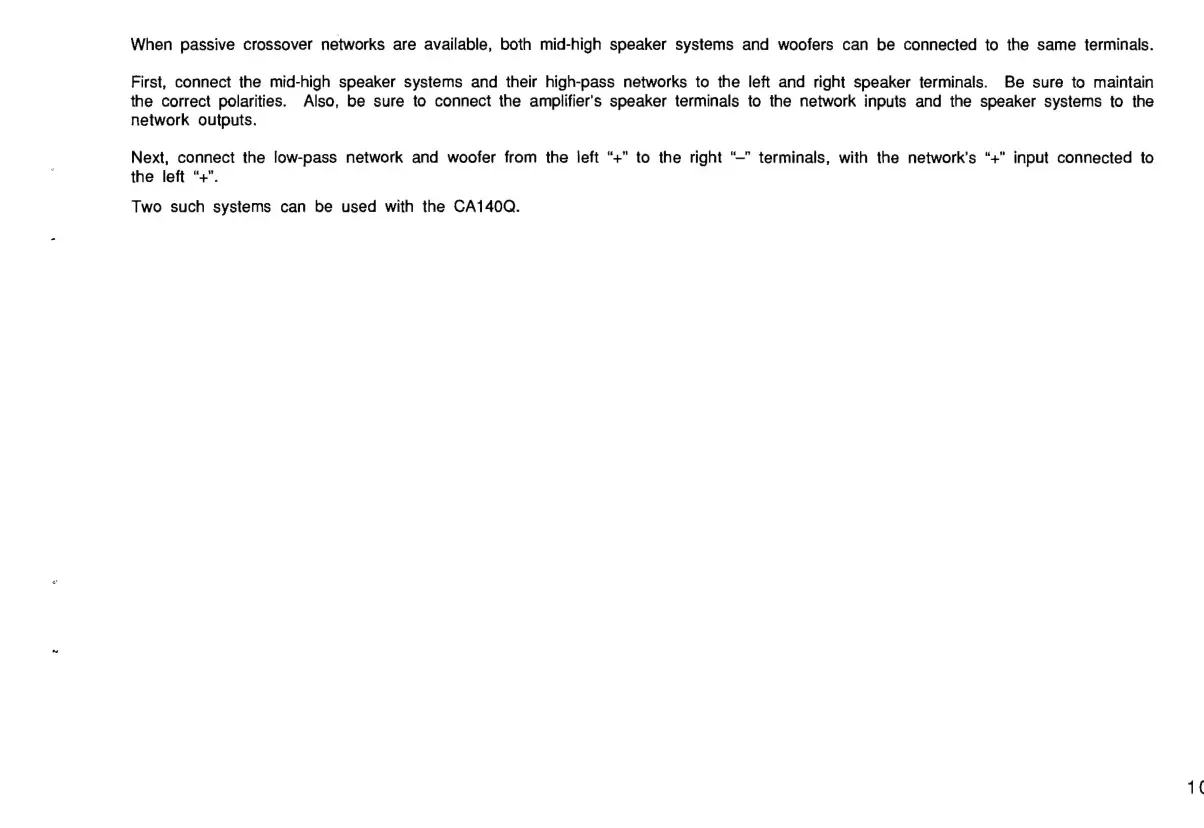

When passive crossover networks are available, both mid-high speaker systems and woofers can be connected to the same terminals.
First, connect the mid-high speaker systems and their high-pass networks to the left and right speaker terminals. Be sure to maintain
the correct polarities. Also, be sure to connect the amplifier's speaker terminals to the network inputs and the speaker systems to the
network outputs.
Next, connect the low-pass network and woofer from the left “+” to the right “—” terminals, with the network’s “+” input connected to
the left “+”.
Two such systems can be used with the CA140Q.
