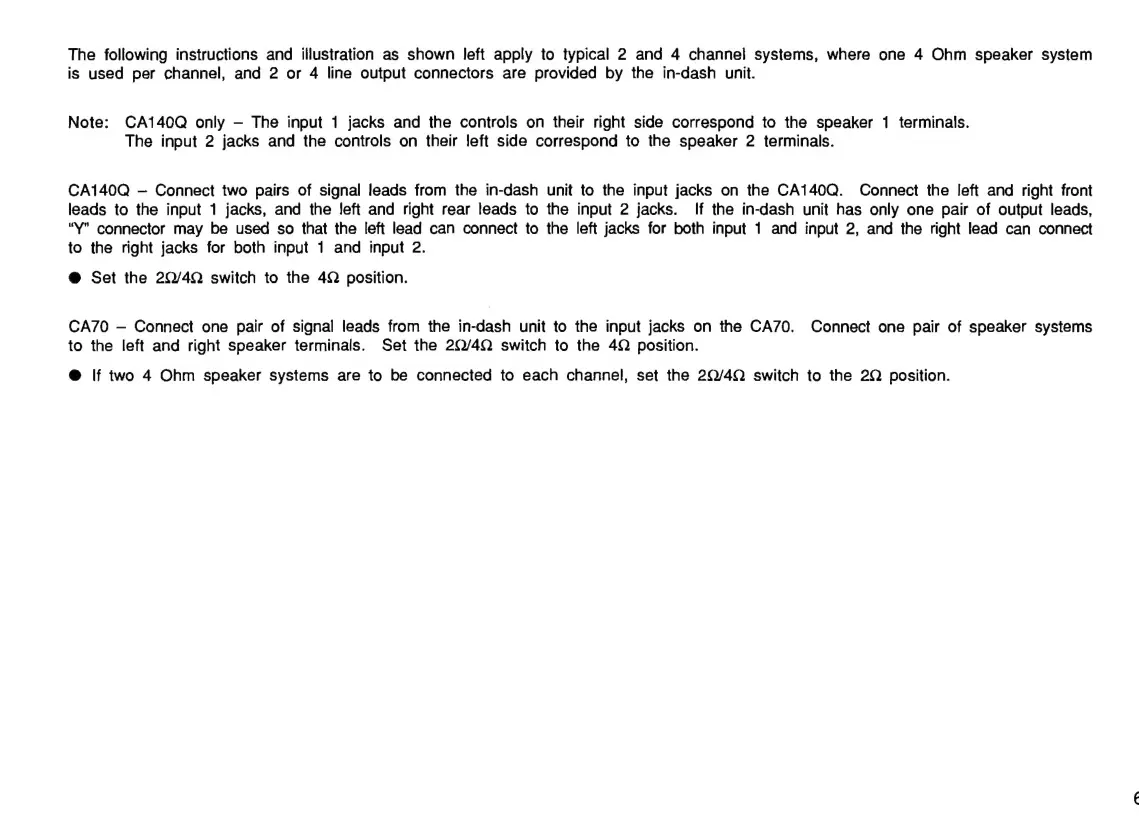

The
following
instructions
and
illustration
as
shown
left
apply
to
typical
2
and
4
channel
systems,
where
one
4
Ohm
speaker
system
is
used
per
channel,
and
2
or
4
line
output
connectors
are
provided
by
the
in-dash
unit.
Note:
CA140Q
only
—
The
input
1
jacks
and
the
controls
on
their
right
side
correspond
to
the
speaker
1
terminals.
The
input
2
jacks
and
the
controls
on
their
left
side
correspond
to
the
speaker
2
terminals.
CA140Q
—
Connect
two
pairs
of
signal
leads
from
the
in-dash
unit
to
the
input
jacks
on
the
CA140Q.
Connect
the
left
and
right
front
leads
to
the
input
1
jacks,
and
the
left
and
right
rear
leads
to
the
input
2
jacks.
If
the
in-dash
unit
has
only
one
pair
of
output
leads,
“Y”
connector
may
be
used
so
that
the
left
lead
can
connect
to
the
left
jacks
for
both
input
1
and
input
2,
and
the
right
lead
can
connect
to
the
right
jacks
for
both
input
1
and
input
2.
@
Set
the
20/4Q
switch
to
the
42
position.
CA70
—
Connect
one
pair
of
signal
leads
from
the
in-dash
unit
to
the
input
jacks
on
the
CA70.
Connect
one
pair
of
speaker
systems
to
the
left
and
right
speaker
terminals.
Set
the
20/49
switch
to
the
4Q
position.
@
If
two
4
Ohm
speaker
systems
are
to
be
connected
to
each
channel,
set
the
20/4Q
switch
to
the
2Q
position.
