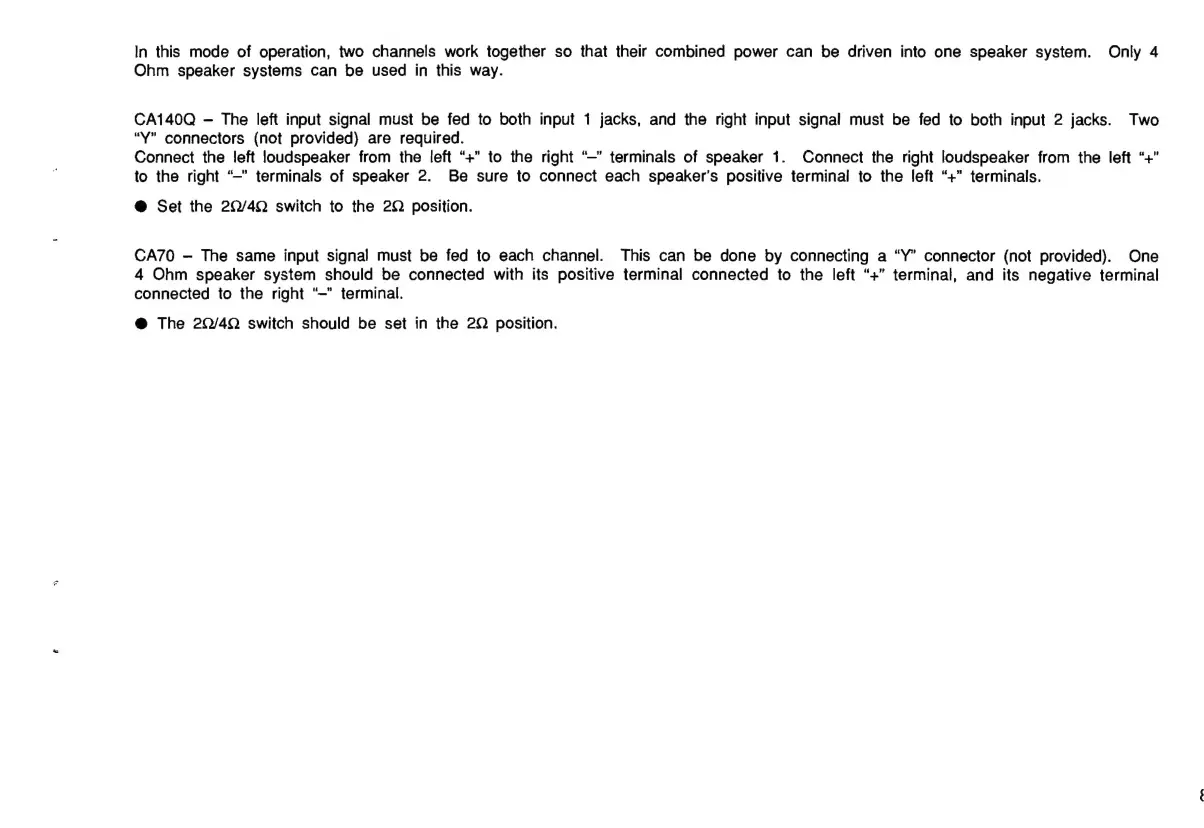

In this mode of operation, two channels work together so that their combined power can be driven into one speaker system. Only 4
Ohm speaker systems can be used in this way.
CA140Q -— The left input signal must be fed to both input 1 jacks, and the right input signal must be fed to both input 2 jacks. Two
“Y" connectors (not provided) are required.
Connect the left loudspeaker from the left “+” to the right “—” terminals of speaker 1. Connect the right loudspeaker from the left “+”
to the right “—” terminals of speaker 2. Be sure to connect each speaker's positive terminal to the left “+” terminals.
@ Set the 20/49 switch to the 2Q position.
CA70 — The same input signal must be fed to each channel. This can be done by connecting a “Y” connector (not provided). One
4 Ohm speaker system should be connected with its positive terminal connected to the left “+” terminal, and its negative terminal
connected to the right “—” terminal.
@ The 20/40 switch should be set in the 2 position.
