STEP #8: VACUUM THE INSIDE OF THE STOVE
You can now do a final brush and vacuum of the inside of the stove. Reinstall the combustion
intake blower cover remembering to swing the latches back in place. Install the cast iron heat
exchanger channel covers remembering to swing the latches back in place on these as well.
Replace the flame guide on the burn pot, replace the ash pan and you are through on the inside.
STEP #9: CLEAN THE INSIDE OF THE PELLET AUGER DRIVE BOX AND A GENERAL
CLEANUP OF THE BACK OF THE STOVE
Start by loosening the screws (highlighted in the pictures) on the back of the stove and sliding the
sheet-metal covers off.
Under the back covers you will find the auger assembly cover on
the left side (as you are facing the rear of the stove ) you will
need to remove the wing nuts on the top and bottom of the cover
(Fig. 13) and remove the cover.
** Tip-You will save yourself from losing wing nuts by holding
your left hand under the cover to catch the wing nuts in case you
drop them while removing them.
After removing the cover, clean out the inside of the
auger housing with a small brush and a vacuum (Fig.
14). You can now clean out the rest of the “engine
housing”.
Replace the auger assembly cover and wing nuts then
the two rear insulated sheet metal covers, tighten the
screws snuggly and you are done with the “engine
housing”.

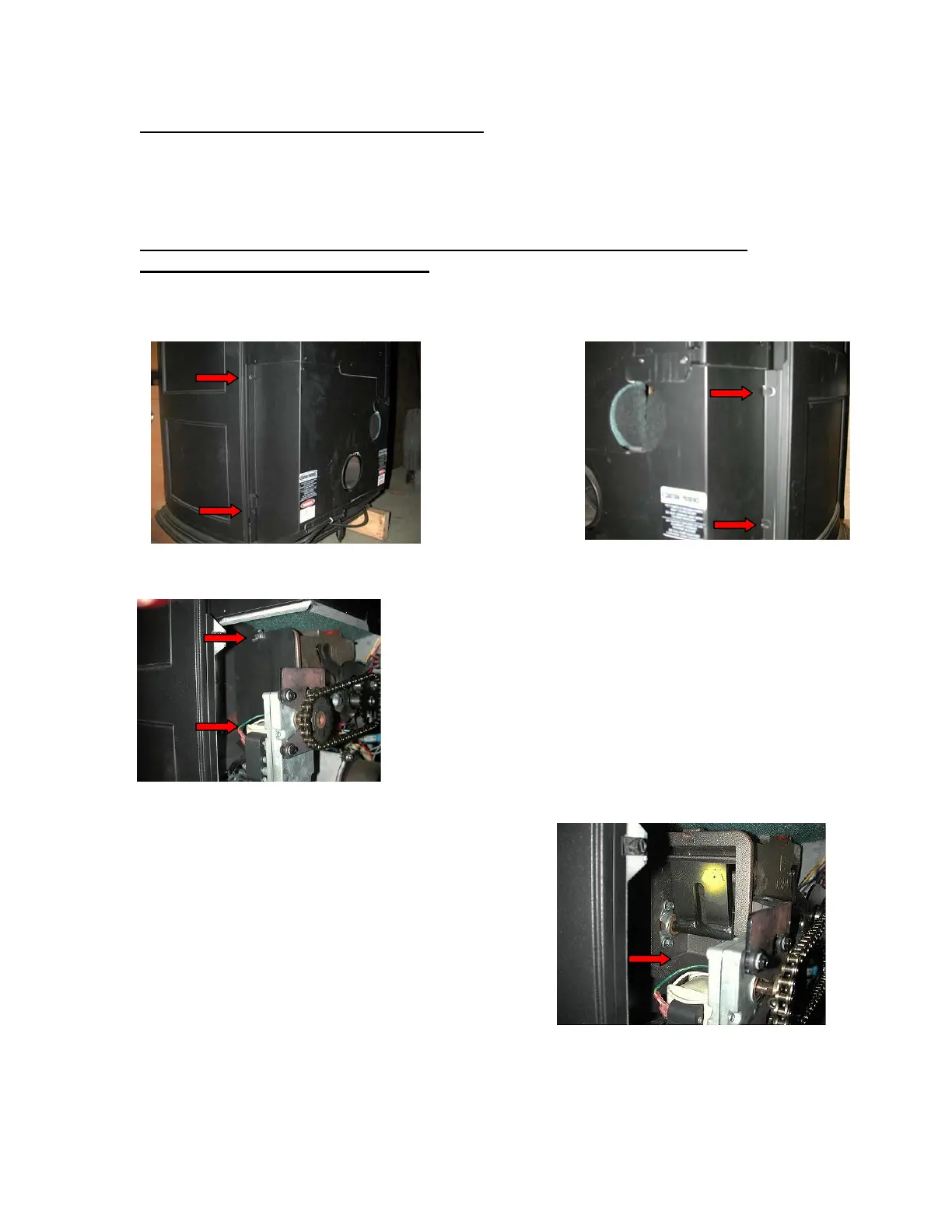

Figures 11 & 12
Figure 13
Figure 14
To Next Page
