Opening:
The view door must be opened for cleaning of the glass
and scraping of the burn pot. This should be done with
the unit off and cool, in most cases. Although the glass
can be cleaned and burn pot scraped while the unit is
at low burn.
1. Using scraper as shown in Fig. 34 and 35, lift the door
latch forward and up.
2. Swing the door open to the left, stopping the swing
when resistance is felt. Forcing the door open further
than it is designed, may cause damage to the door or
it's hinges.
CAUTION
Do not put excessive downward pressure on the
latch end of the door while in the open position.
If the door is going to be opened for an extended period
of time, it is suggested that it be removed (see Fig. 36)
and set safely aside.
3. Inspect the door gasket and glass gaskets for worn or
missing pieces. Replace if necessary. (Fig. 37)
Closing:
When closing the door, always hold the door latch all
the way up until it has caught the receiving bolt. Then
push the latch downward and back until the door is fully
seated. See Fig. 35.
Removing View Door:
To remove the view door from the stove, hold the door
by the bottom and lift upward, off of the hinge pins. See
Fig. 36.
The glass in your Harman stove is a special ceramic
glass.
Do not abuse the glass by striking or slamming the
door.
Never burn the appliance if the door glass is
cracked or broken.
Replace only with Harman supplied glass.
Clean the glass with a soft cloth and mild glass
cleaner. Do not clean the glass when hot, and
avoid the use of abrasive cleaners.
Glass replacement:
Carefully remove all remaining glass and gas-
ket materials prior to replacing the glass.
Lay the door face down on a at surface. Re-
move the glass retainers and screws. Apply the
gasket material to the face of the new glass.
Lay the glass into the door. Lay the glass
retainers into position and install the nuts.
Tighten each nut evenly, to avoid making any
stress points.
•
•
•

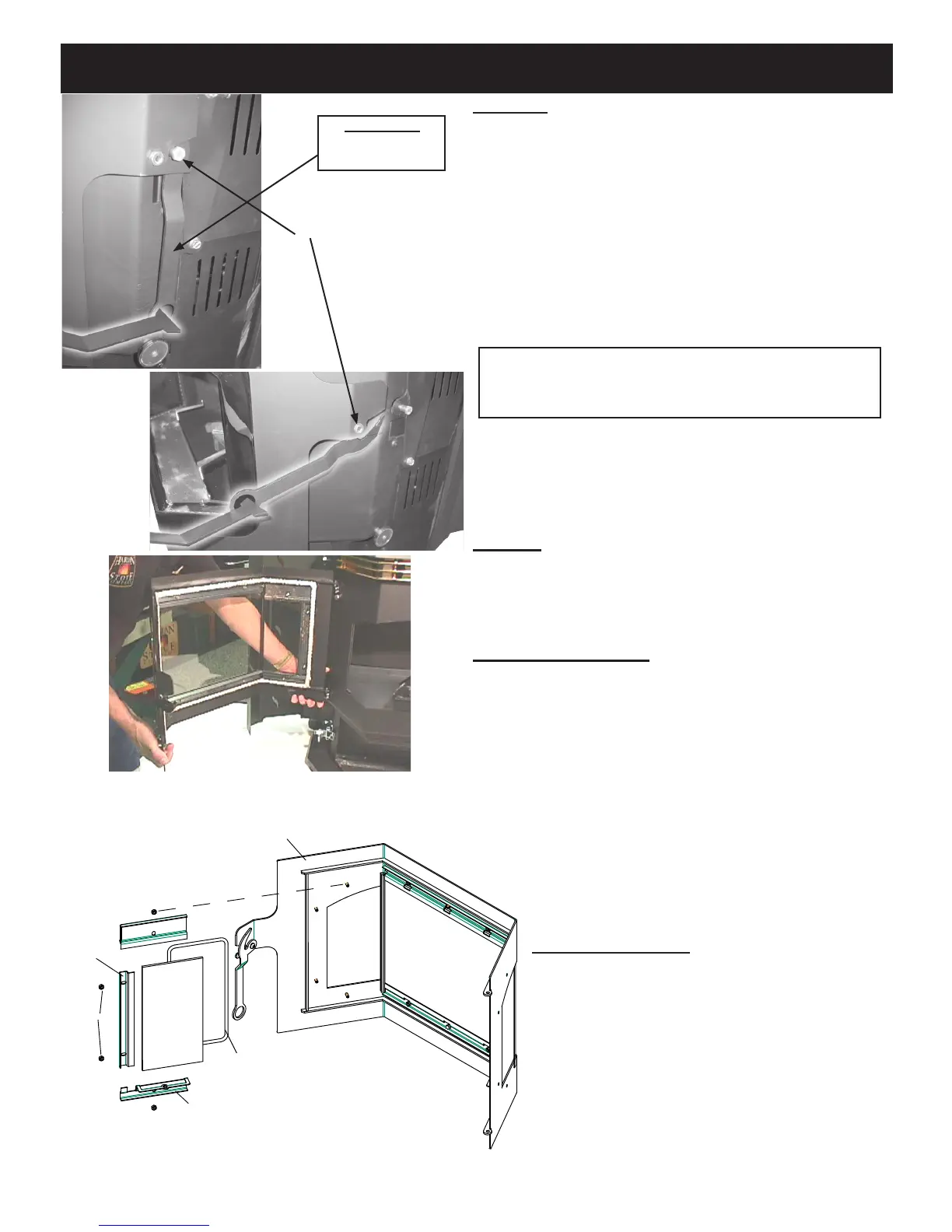

Fig. 34
Fig. 35
Fig. 36
Top Glass Clip
Side Glass Clip
Nuts
Btm Glass Clip
Side Glass
Window Gasket
Door Assembly
Fig. 37
Receiving Bolt
WARNING
Door latch may
be hot!
