Harman Advance Pellet Stove Maintenance Guide

23

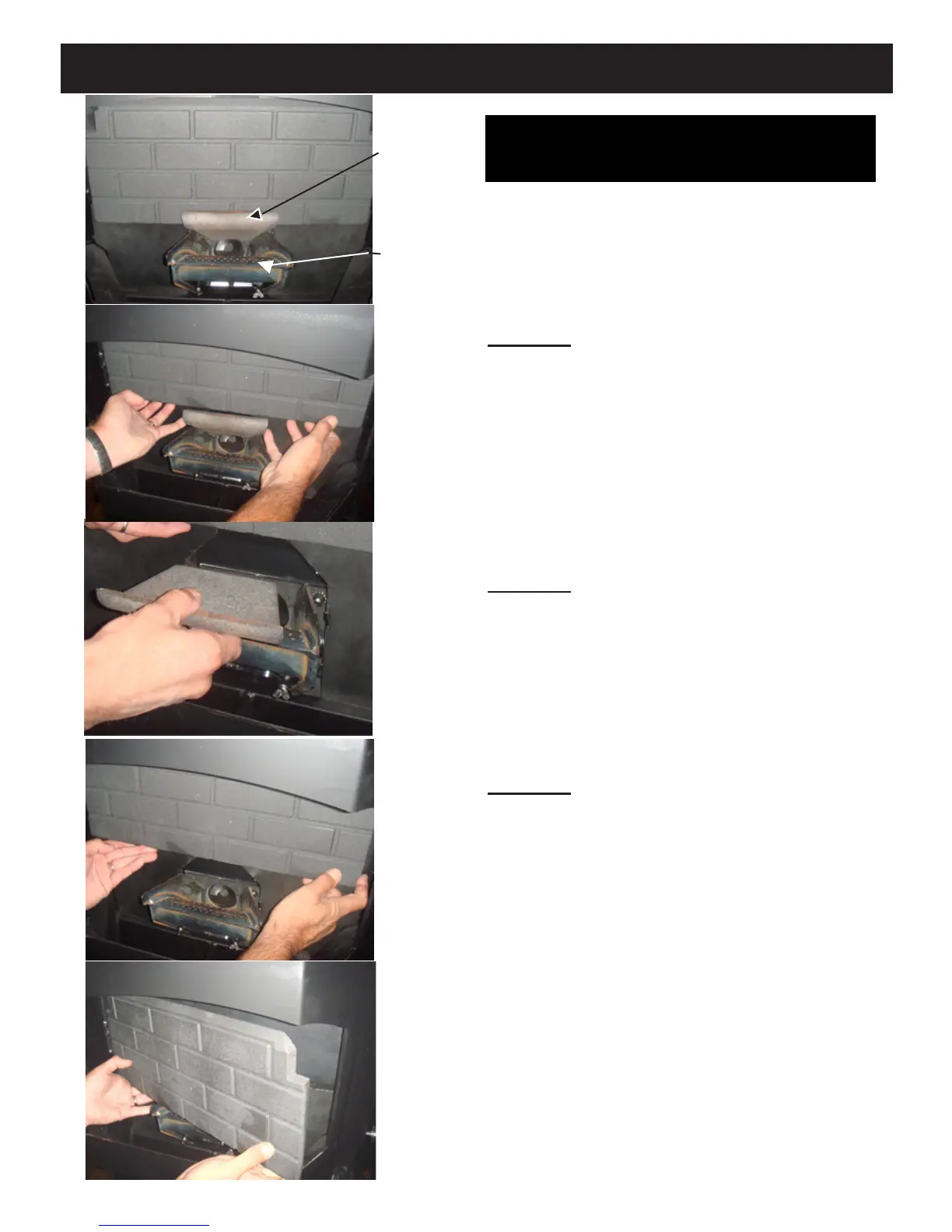

Flame Guide and Brick Panel
Removal for Cleaning
Figure 42
Slide brick panel straight upward with both
hands.
Figure 43
While holding the brick panel up with one hand,
remove the ame guide from the top of the burn
pot.
Figure 44
Slide the brick panel into the left corner of the
rebox with the panel resting on the top edges
of the burn pot. Rotate the right side of the brick
panel through the door opening.
Reverse this operation to reinstall the brick
panel after cleaning.
Fig. 41
Fig. 42
Fig. 43
Fig. 44
Fig. 45
Firebox Brick Panel
Flame Guide/
Brick panel
holder
Burn pot
Maintenance - Flame Guide and Brick Panel
