Harman Advance Pellet Stove - Vent Termination Requirements; General Venting Prohibitions; Specific Termination Clearances



H. A vent must not be installed within 3 feet (90 cm)
above a gas meter/regulator assembly when measured
from the horizontal center-line of the regulator.

I. The clearance to service regulator vent outlet must
be a minimum of 6 feet.

J. The clearance to a non-mechanical air supply inlet
to the building or the combustion air inlet to any other
appliance must be a minimum of 48”.

K. The clearance to a mechanical air supply inlet must
be a minimum of 10 feet.

()
L. The clearance above a paved sidewalk or a paved
driveway located on public property must be a mini-
mum of 7 feet.

M. The clearance under a veranda, porch, deck or
balcony must be a minimum of 12 inches.


NOTE: The clearance to vegetation and other exte-
rior combustibles such as mulch is 36” as measured
from the center of the outlet or cap. This 36” radius
continues to grade or a minimum of 7 feet below the
outlet.

Certain Canadian and or Local codes or regulations
may require different clearances.

A vent shall not terminate directly above a side-walk
or paved driveway which is located between two
single family dwellings and serves both dwellings.

Only permitted if veranda, porch, deck, or balcony
is fully open on a minimum of 2 sides beneath the
oor.

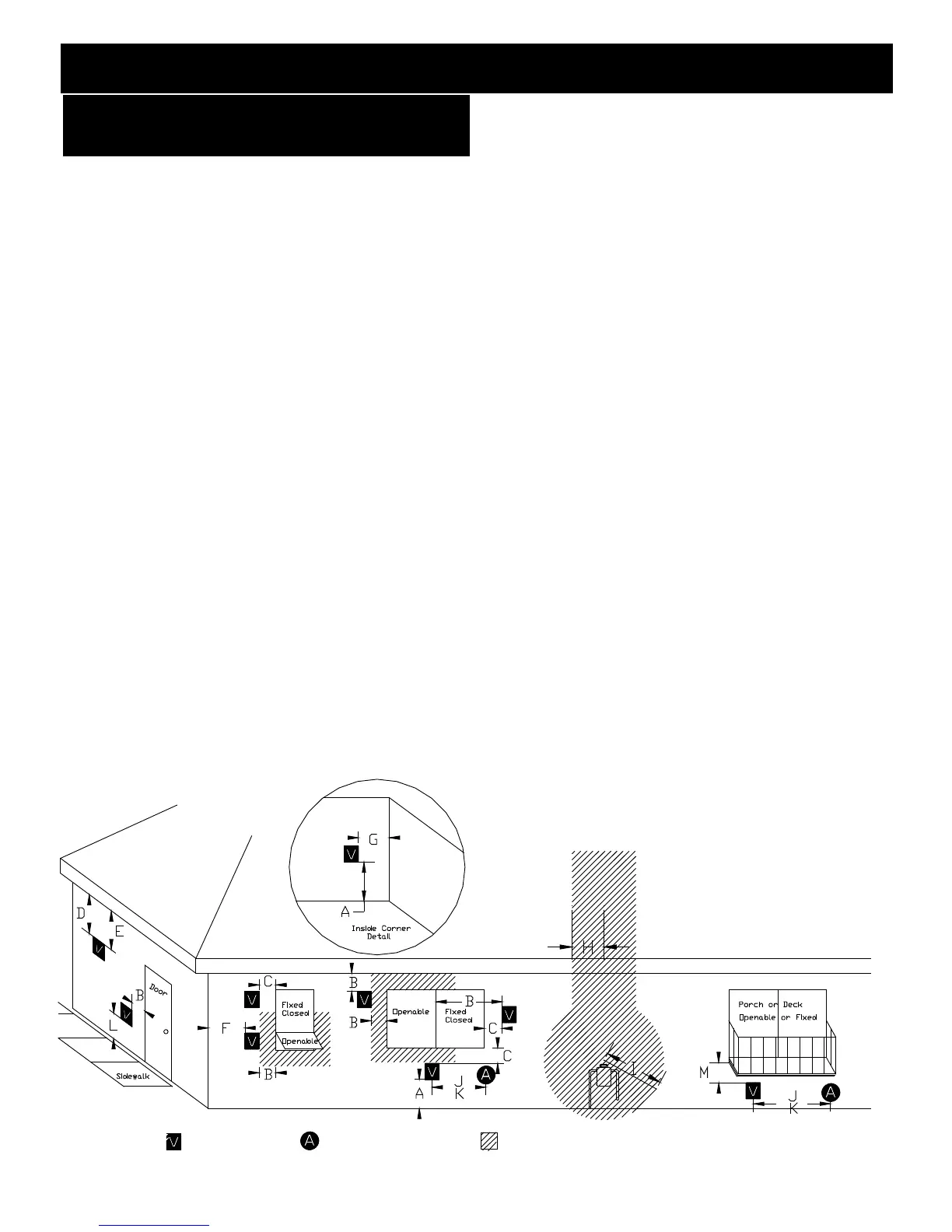

= Vent terminal

     
     

= Air Supply Intake
= Area where vent terminal is not permitted


WARNING: Venting terminals must not be recessed
into a wall or siding.
NOTE: Only PL vent pipe wall pass-throughs and re
stops should be used when venting through combustible
materials.
NOTE: Always take into consideration the effect the
prevailing wind direction or other wind currents will
cause with yash and /or smoke when placing the
termination.

A. The clearance above grade must be a minimum of
18".

B. The clearance to a window or door that may be
opened must be a minimum of 48" to the side, 48" below
the window/door, and 12" above the window/door.

(

C. A 12" clearance to a permanently closed window
is recommended to prevent condensation on the win-
dow.
D. The vertical clearance to a ventilated soft located
above the terminal within a horizontal distance of 2 feet
(60 cm) from the center-line of the terminal must be a
minimum of 18".
E. The clearance to an unventilated soft must be a
minimum of 12".
F. The clearance to an outside corner is 11" from center
of pipe.
G. The clearance to an inside corner is 12".
