Whenever adding fuel to the hopper, take the time
to scrape the grate surface of the burnpot, using the
scraper tool provided. This can be done while a re is
burning. Wearing heat resistant gloves, open the rebox
door. Scrape any accumulated ashes from in front of
the re, into the ash pan. Now, scrape under the re, in
a downward direction, to loosen any carbon deposits.
Do not scrape the re out of the pot. Whatever you
loosen will be pushed out with the ow of new fuel into
the pot. (Fig.33)
After approximately 1 ton of pellets has been burned,
it will be necessary to empty the ash pan.
It is recommended that the stove is cold and shut
down when removing the ash pan.
1. Lift the latch handle to open the ash door and remove
the ash pan. Use ash pan handle to carry and dispose
of ashes.
2. Slide the ash pan back into the stove and latch the
door by pushing down on the latch handle when
closed.
The stove should be shut-down and thoroughly
cleaned after each ton of pellets consumed. The cleaner
the stove, the more efcient it will be.
Fuel with higher ash and/or moisture content
will require more frequent cleanings.
1. Shut down the stove and
to insure that all motors are stopped.
2. Clean heat exchanger with scraper as shown in g 27.
3. Brush or scrape the inside of the stove to remove
y ash.
4. Scrape burnpot with at end of scraper provided with
the stove. Inspect the holes on the burnpot surface.
See Fig. 33.
5. Open burn pot clean-out. Clean y ash from burn pot
and replace cover.
6. Remove the ash pan and properly dispose of the
ashes.

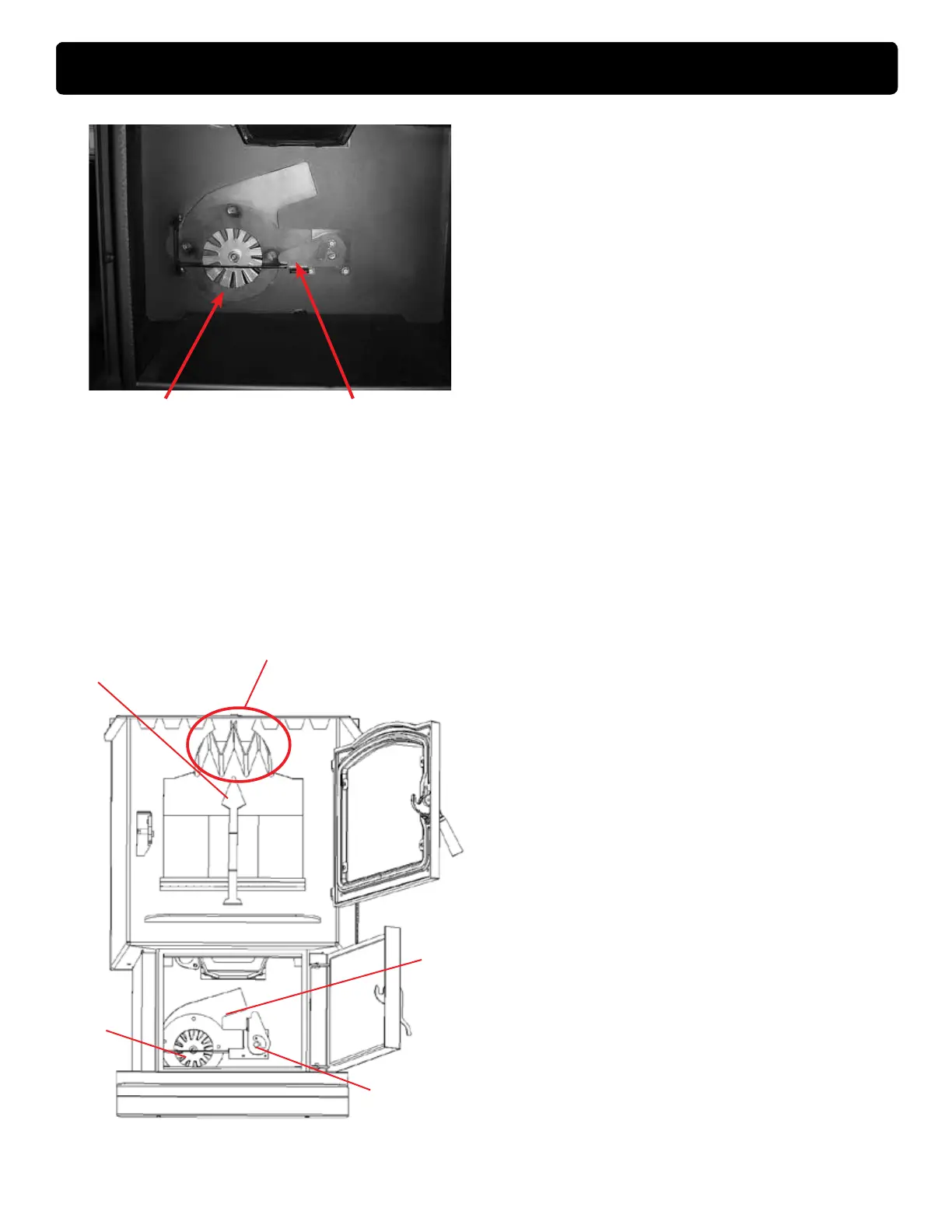

Fig 27
Scraper
Blower Cover
Latch
Blower
Wheel
Flue
Outlet
Heat Exchanger Fins
Combustion
Blower Cover
Blower Cover
Latch
Fig 26
To Next Page
