Vi1000 USER MANUAL
18.1.1 18.1.1: VM ² > DEVICE LIST
18.1.1: VM ² > DEVICE LIST
console to know on which channel strip to display the VM² monitoring information, it is necessary to associate each of
the microphone devices with a physical connector, which will correspond to the connector that the microphone’s audio
output is connected to.
The LOC button activates the Locate function on the selected receiver. Pressing this will cause the front panel display
of the chosen receiver to ash, allowing it to be more easily identied among a rack of others.

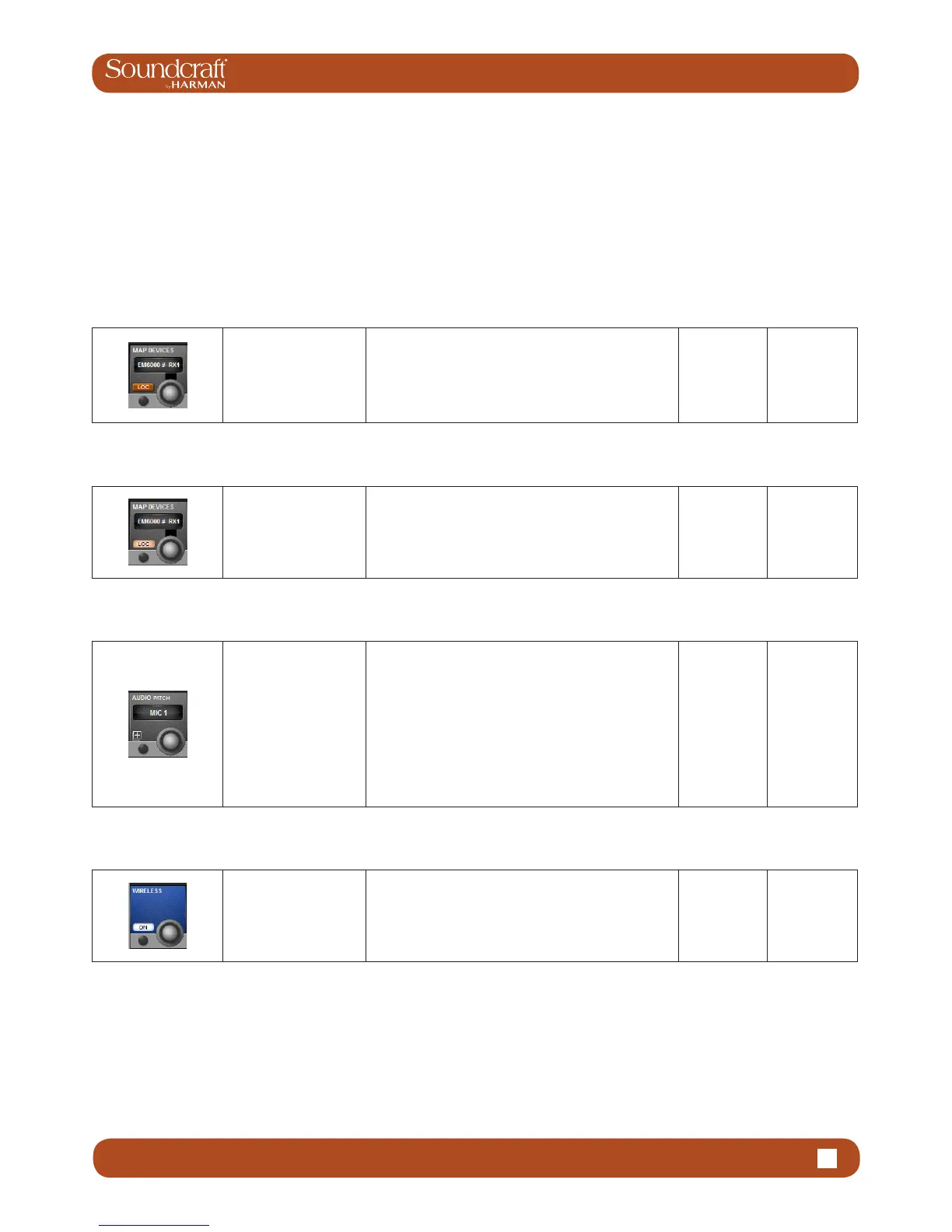

MAP Devices
(Scroll List)
Scroll through the list of
available VM² devices.
Hint: To avoid opening and closing the Audio Patch
page, the MAP DEVICES encoder can still be used
to scroll through the Device List even whilst the Audio
Patch page is still open. The name (truncated) of the
currently selected Device can be seen in above the MAP
DEVICES Vistonics scroll encoder.
Locate Devices
Activate the Locate
function on the selected
receiver.
Pressing (LOC) will cause the front panel display of the
chosen receiver to ash, allowing it to be more easily
identied among a rack of others.
Patch Devices Active
Activate the VM²
microphone patching
screen.
The patching matrix allows all of the physical input
connectors available within the Vi system to be seen and
the relevant connector to be chosen to correspond to
where the currently selected microphone is connected.
The chosen connector is shown in bright blue highlight,
whereas connectors that are already associated with
other wireless devices are shown as greyed-out.
A greyed-out connector can still be chosen as an
assignment for the currently selected microphone, but a
dialogue box will appear in this case to ask if you wish to
reassign this connector.
Patching
Screen Active
Wireless
Activates or deactivates
the VM
2
wireless
monitoring functionality.
