Pinnacle 101 Stair
FOLDING RAIL INSTALLATION

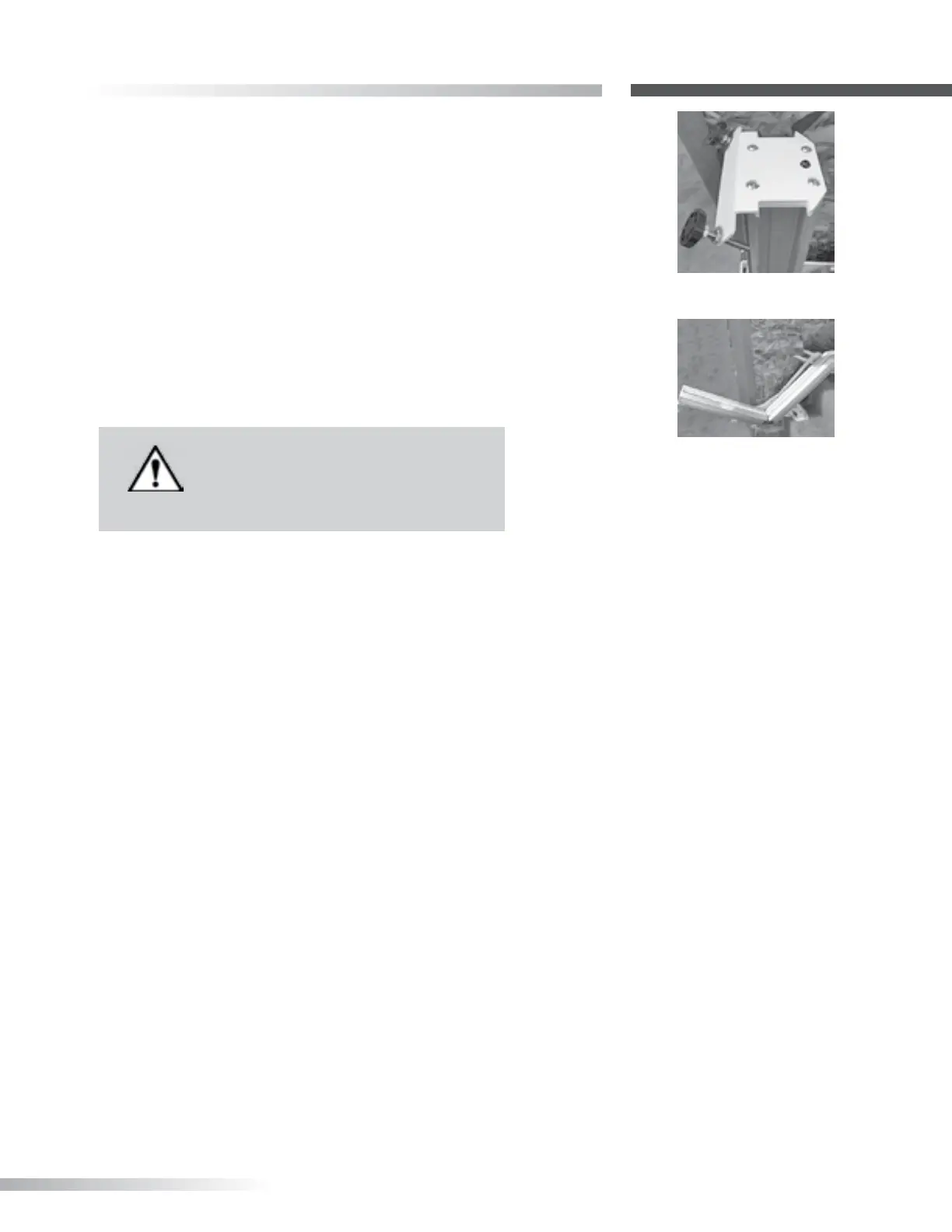

12. If you’re installing the feet onto carpet, screw
down a piece of wood or metal to make the feet
seat reliably. [Figure 23-1]
Figure 23-2
Figure 23-1
13. Carefully move the fork with your hand to make
sure it operates smoothly. Allow it to go all the way to
the oor. Conrm that both feet sit level on the oor
and the hinge-joint is fully straight. [Figure 23-2]
14. Follow the normal procedure for installing rail
brackets and tightening them. This procedure is
detailed on pages 5 & 6 (steps 7 & 8).
15. Test ride the unit a couple of times to verify that
the folding rail is operating properly.
WARNING
Be careful not to pinch your ngers
when moving the fork.
