Harmar Mobility AL065 - Hitch Sincher Installation

6
Hitch Sincher

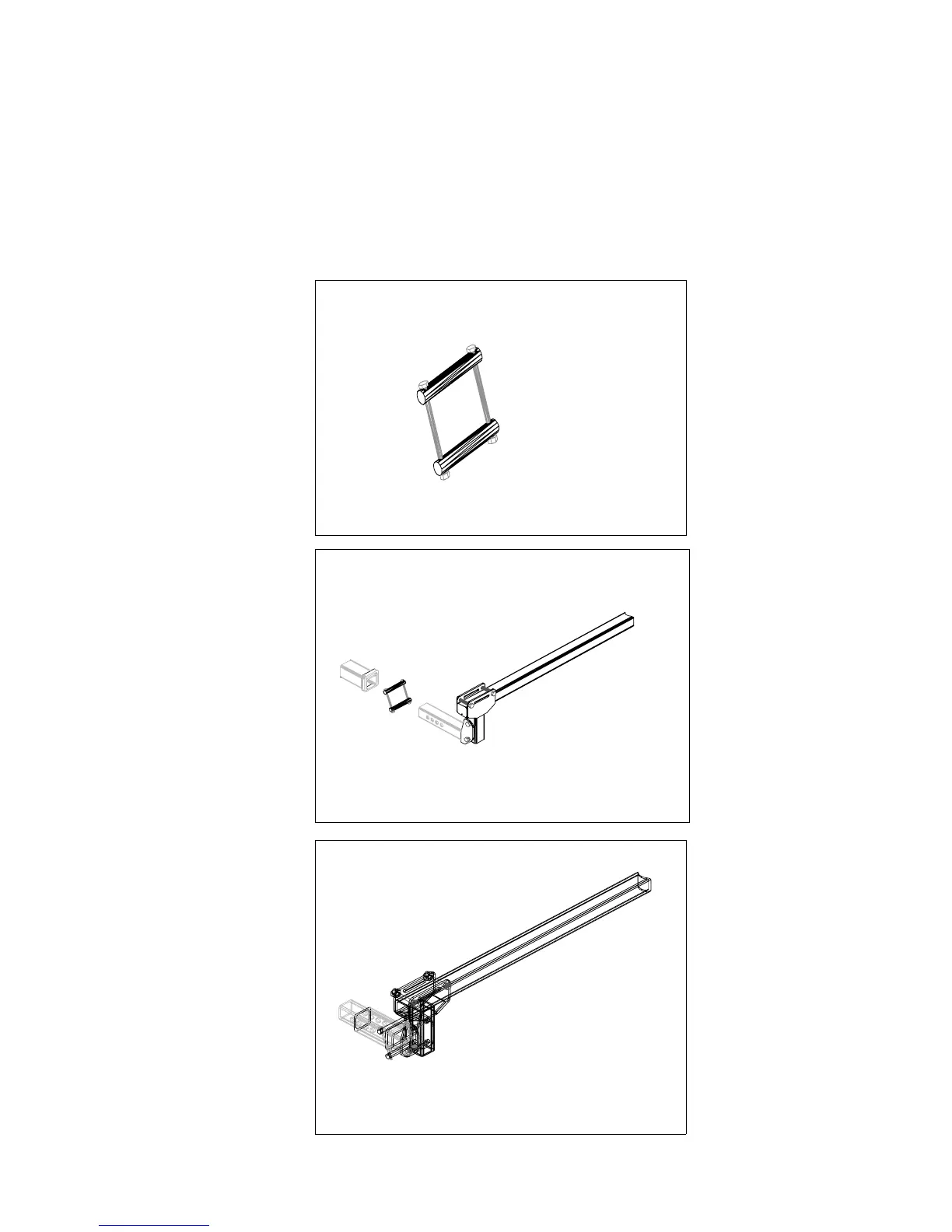

The purpose of the Hitch Sincher is to prevent vertical play in the trailer hitch. Attach the two 5/8” diameter steel rods
together with the supplied 1/4-20 x 4” bolts and 1/4” nuts (Figure 1). Slip this assembly over the trailer hitch and attach
it as shown in Figure 2. Tighten the bolts and nut to remove any play in the hitch (Figure 3).
Figure 1
Figure 2
Figure 3
