Harol BX270 - LED Lighting - Standard Electrical Diagram; LED Lighting - RTS Controls Electrical Diagram; LED Lighting - IO Controls Electrical Diagram; LED Lighting - Dimmable IO Controls Electrical Diagram

Harol NV – Industriepark 3 – 3290 Diest – Belgium - +32 (0)13 38 01 11 – info@harol.be – www.harol.com
Art. nr.: 050442 V03-04/18

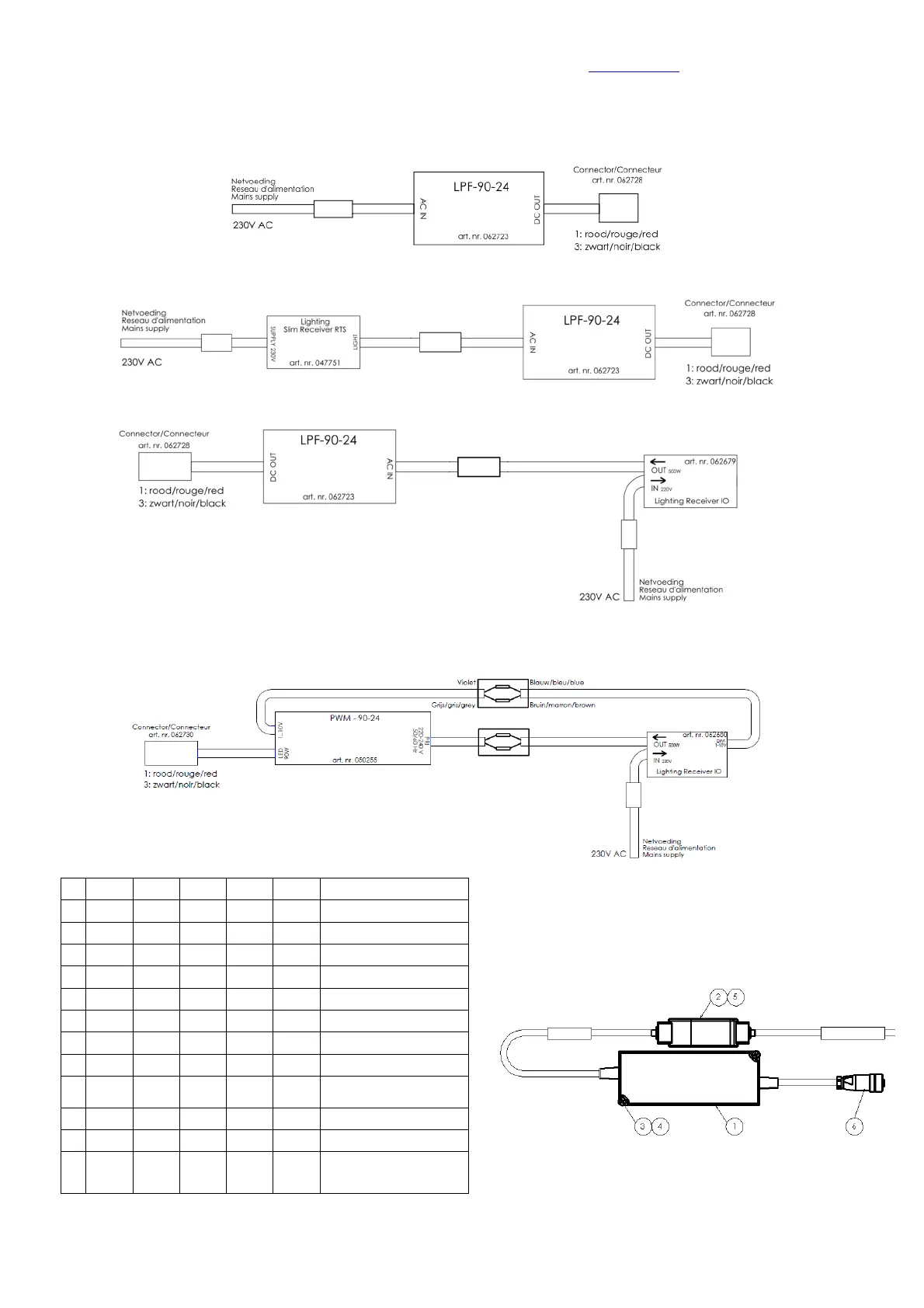

Elektrische schema’s / Schémas électriques / Electrical diagrams
1. LED verlichting – Standaard / Éclairage LED – Standard / LED lighting – Standard
2. LED verlichting – RTS bediening / Éclairage LED – Commande RTS / LED lighting – RTS controls
3. LED verlichting – IO bediening / Éclairage LED – Commande IO / LED lighting – IO controls
4. LED verlichting – Dimbare IO bediening / Éclairage LED – Commande IO avec réglage de l’intensité /
LED lighting – Dimmable IO controls
8 50442 1 1 1 1 Handleiding / manual
7 50440 1 1 1 1 Test LED strip
6 62728 1 1 1 1 Connector F
62723 - - 1 1 Colson strap
5 62784 - 1 - - Tape
4 2275 2 2 2 2 DIN 125 - M4
3 44262 2 2 2 2 DIN 7985 - M4 x 6
62680 - - - 1
Lighting receiver IO dim
62679 - - 1 - Lighting receiver IO
2 47751 - 1
- -
Lighting slim receiver
RTS
50255 - - - 1 Voeding PWM-90-24
1 62723 1 1 1 - Voeding LPF-90-24
N°
Art.
N°
50436 50437 50438 63859
Omschrijving /
Description
Stuklijst / BOM / Bill of materials
