Title: PCM-1 to PCM-2 Upgrade Instructions Sheet 6 of 25 Rev: A Dwg: 873-4514-001

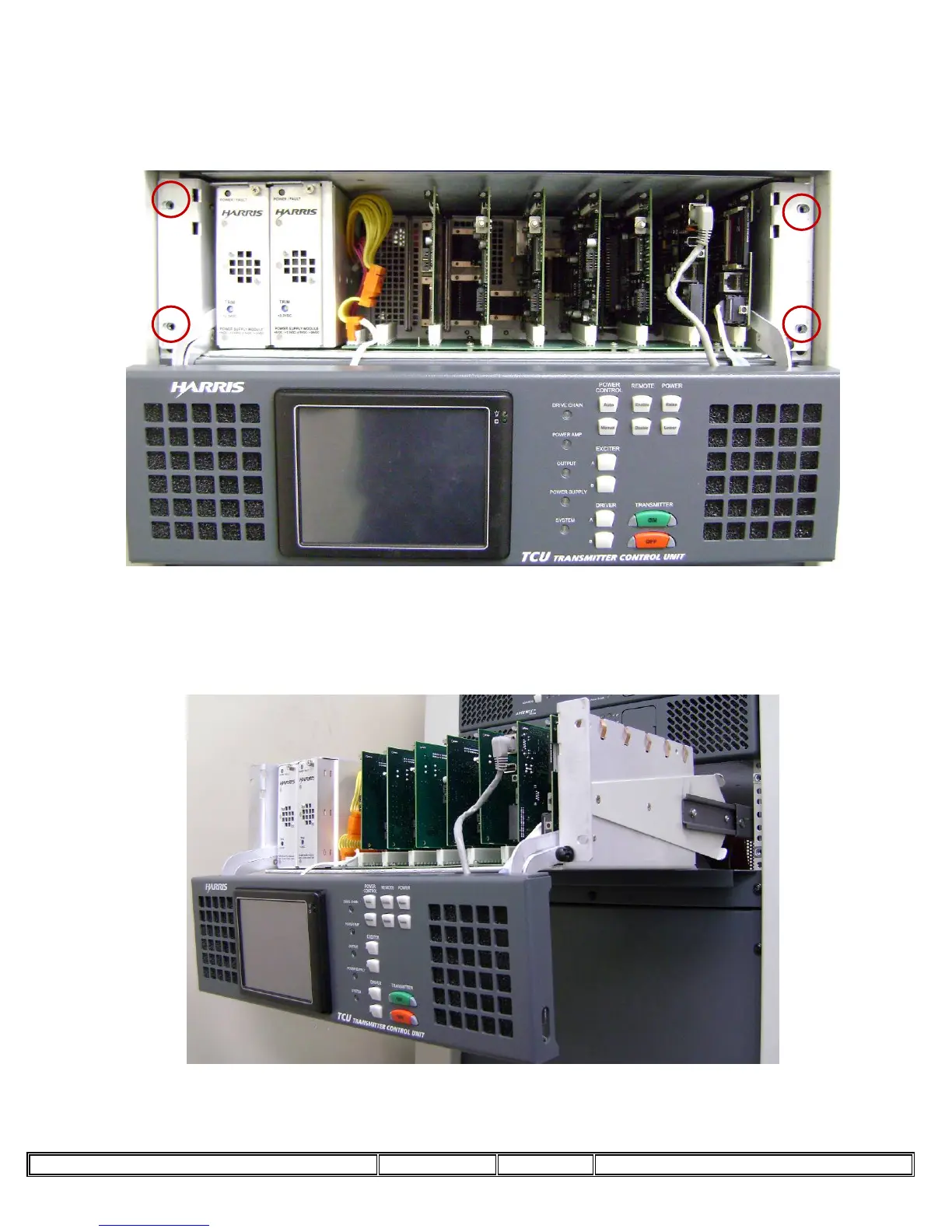

STEP 6. Remove the four #2 Phillips screws, two on each side of the TCU
chassis.
Figure 7
STEP 7. Carefully slide the TCU chassis out of the rack until the rail locks snap
into position as shown in figure 8.
Figure 8
