Harvia M3 Installation

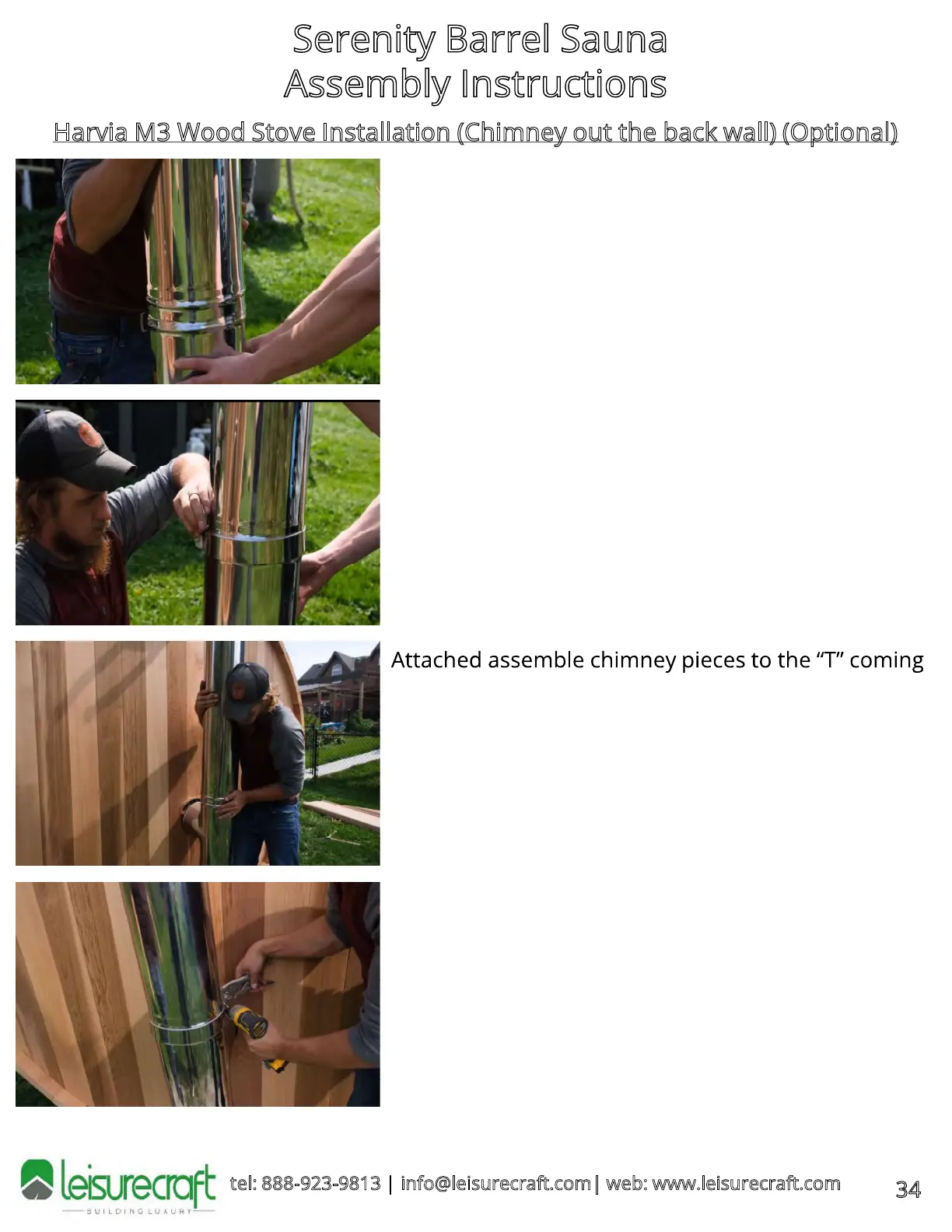

Harvia M3 Wood Stove Installation (Chimney out the back wall) (Optional)
Assemble together the remaining chimney pieces.
Serenity Barrel Sauna
Assembly Instructions
tel: 888-923-9813 | info@leisurecraft.com| web: www.leisurecraft.com
Manufactured by:
Attach the support strap around the 2 chimney pipes
and tighten up.
out the back of the sauna.
Attach a support strap around the connection and
tighten up.
34

Harvia M3 Specifications

General

Output	13 kW
Sauna room size	6-13 m³
Dimensions (W x D x H)	390 x 430 x 710 mm
Weight	45 kg
Flue outlet diameter	115 mm
Firewood length, max	39 cm
Model	M3
Heating capacity	13 kW
Height	710 mm
Width	390 mm
Depth	430 mm
Material	Steel
Color	Black
Type	Wood-burning stove
Sauna size, max (cu ft)	459 cu ft
Weight (lbs)	99 lbs
Sauna size, min (cu ft)	212 cu ft
Dimensions (W x D x H) in inches	15.35 x 16.93 x 27.95
