2a Surface mounting
2b Flush mounting
1

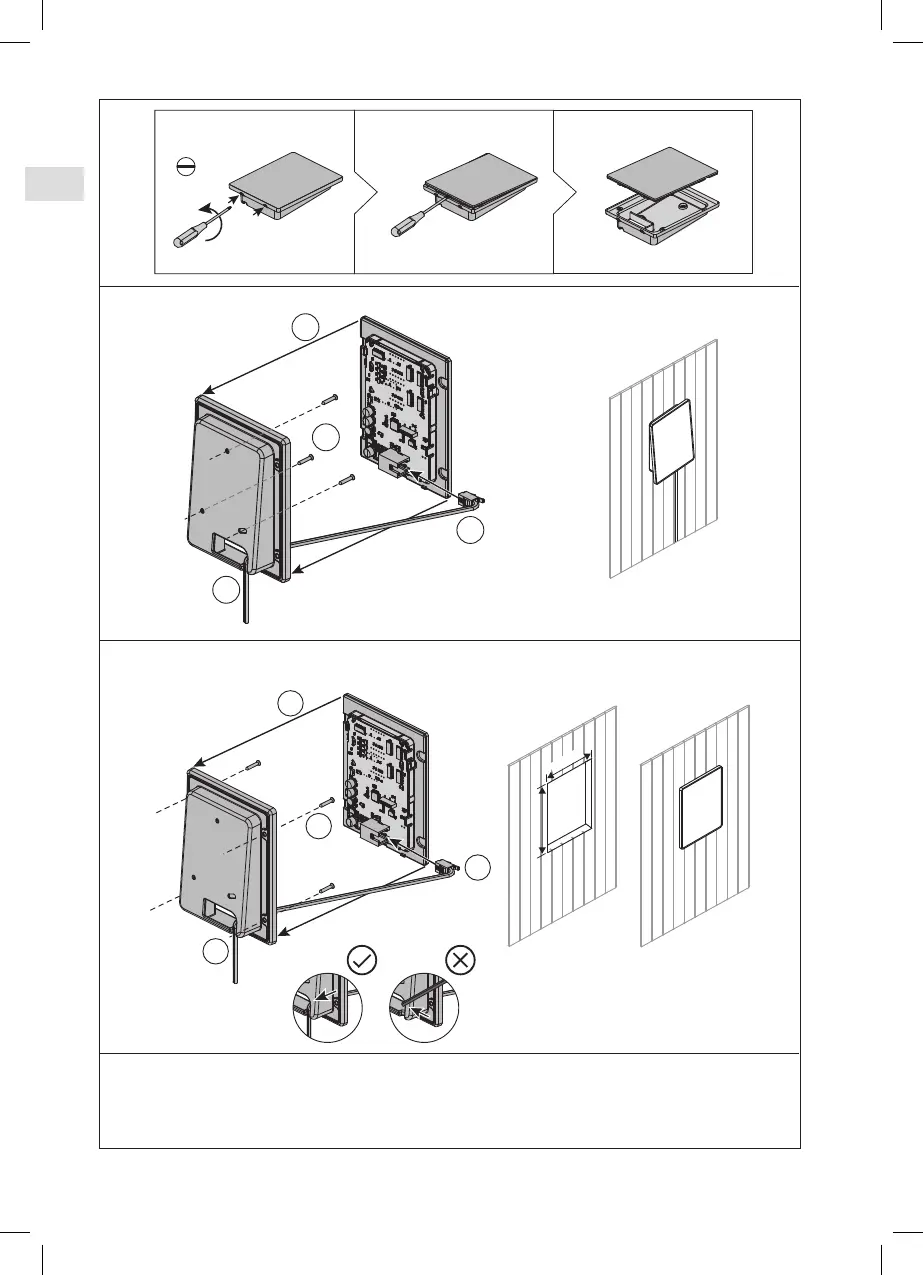

Figure 2. Installing the control panel.
1. Thread the data cable through the hole in the 3. Push the data cable to the connector.
back cover.
2. Fasten the back cover to a wall with screws. 4. Press the front cover into the back cover.
