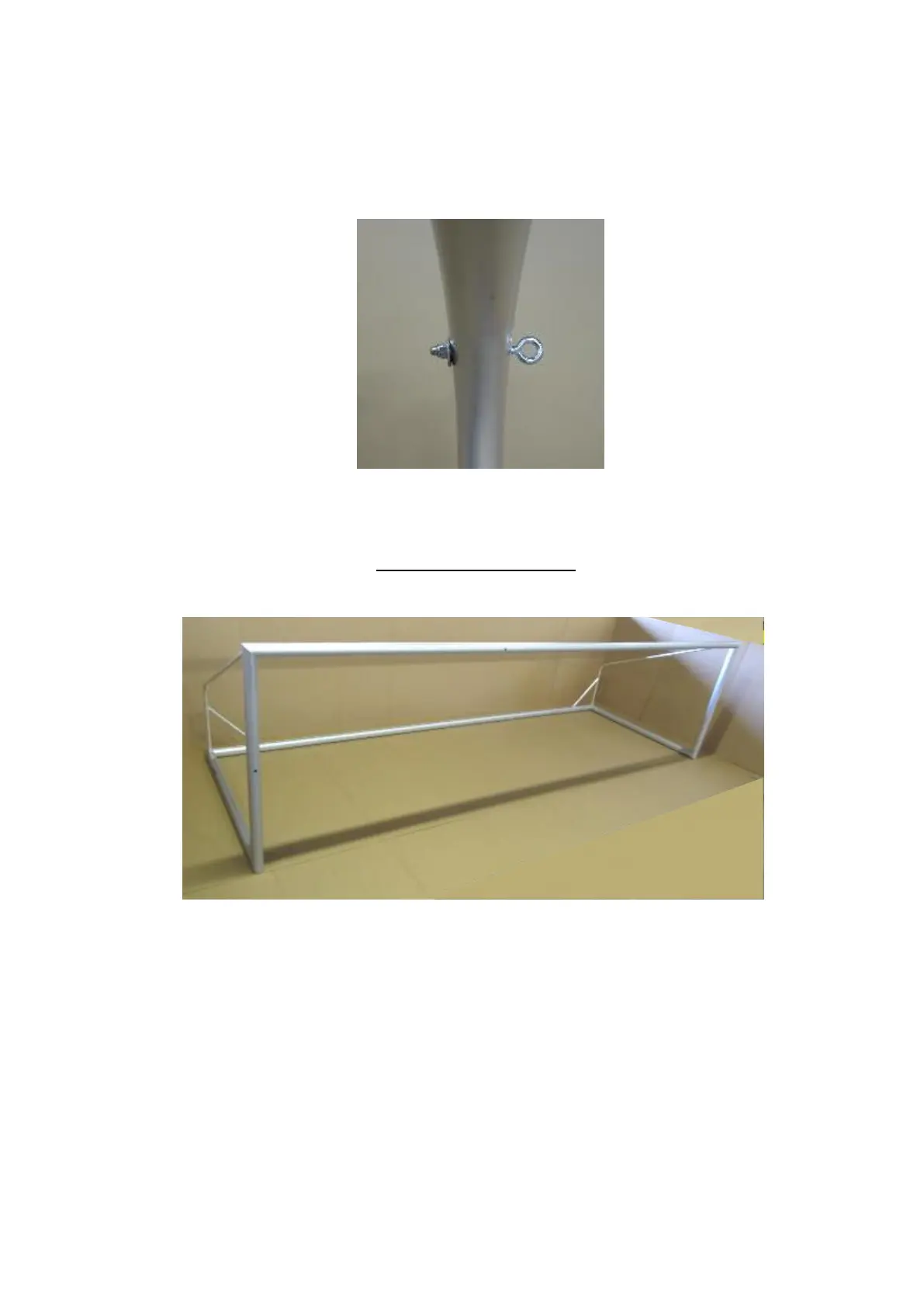

10. Assembly of ring nut:
Stick from the inside ring nuts M6 x 50 through the remaining open holes of both net
hoops to fix the tensioning rope. Fix them from the outside with washers Ø 7.4 mm,
DIN 9021 and self-locking cap nuts M6, DIN 986.
Erect the goal. Adjust total goal construction and tighten all
screws.
Current state of assembly:
