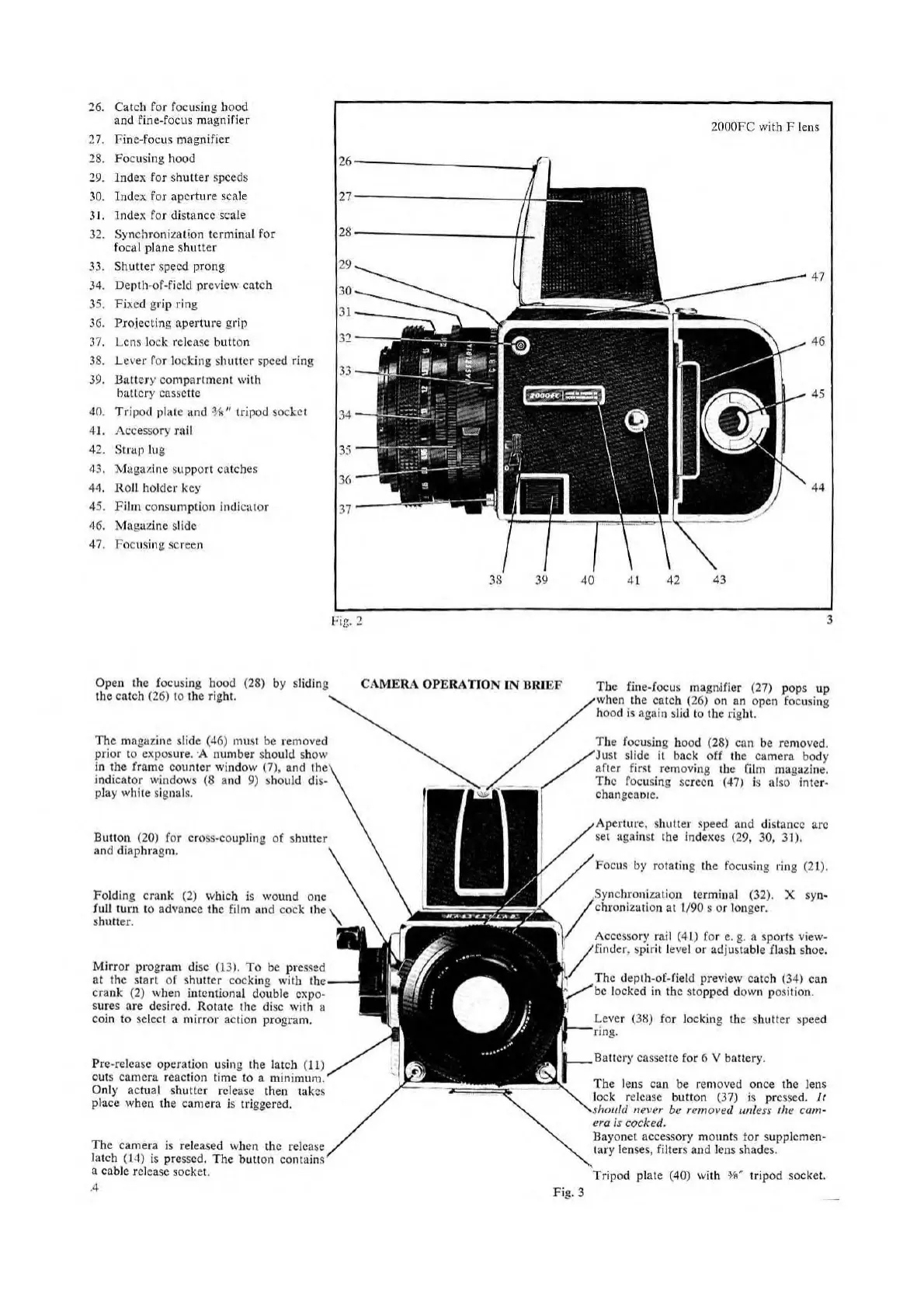

Hasselblad 2000 FC User Manual

26. Catch Tor focusuig hood
aod fine-focus magnifier
20(X)FC with F lens
27. Fine-focus magnifier
28. Focusing hood
26-
29. index for shutter speeds
30.
31,
Index for aperture scale
Index for distance scale
27-
32. Synchronization terminal for
28-
33.
focal plane shutter
Shutter speed prong
34, DeptU-of-field preview catch
33.
Fixed grip ring
--
36. Projecting aperture grip
37, Lens lock release button
.12-
38.
Lever for locking sli utter speed ring
33-J
39, Battery compartment with
40.
battery cassette
Tripod plate and tripod socket
J-T -
43. Accessor^' rail
1
42. Strap lug
3.H
43.
Magazine support catches |
H
44. Roll holder key
45.
Film consumption indicator
B
46.
47.
Magazine slide
Focusing screen
3S 39 40 41 42 43
Fis. 2
Open the focusing hood (2S) by sliding
the catch (26) to the right.
The magazine slide (46) must be removed
prior to exposure. A number should show
in the frame counter window (7), and the
indicator windows (8 and 9) should dis¬
play white signals.
Button (20) for cross-coupling of shutter
and diaphragm.
Folding crank (2) which is wound one
full turn to advance the film and cock the v
shutter. \
Mirror program disc (13). To be pressed
at the start of shutter cocking with the
crank (2) when mieniional double expo¬
sures are desired. Rotate the disc with a
coin to select a mirror action program,
Pre-relcasc operation using the latch ( 11 )
cuts camera reaction rime to a minimum.
Only actual shutter release then takes
place when the camera is triggered.
The camera is released when the release
latch (14) » pressed, The button contains
a cable release socket.
A
C.4MER.4 OPERATION IN BRIEF
The fine-focus magnifier (27) pops up
when the catch (26) on an open focusing
hood is again slid to the right.
The focusing hood (28) can be removed.
Just slide it back off the camera body
after first removing the film magazine.
The focusing screen (47) h also inter-
changeaDte.
Aperture, shutter speed and distance arc
set against the indexes (29. 30. 31).
Focus by rotating the focu^ng ring (21).
.Synchronization terminal (32). X syn¬
chronization at 1/90 s or longer.
Accessory rat! (41) for e. g. a sports view¬
finder. spirit level or adjustable flash shoe.
The depih-of-field preview catch (34) can
be locked in the stopped down position.
Lever (38) for locking the shutter speed
r;ng.
Battery cassette for 6 V battery.
The leus can be removed once the lens
lock release button (37) is pressed. If
^hof/fii ne^-^r be removed uniesi //*<? com-
I'ra is cocked.
Bayonet accessory mounts tor supplemen¬
tary lenses, filters and lens shades.
Tripod plate (40) with H' tripod socket
Fig. 3
